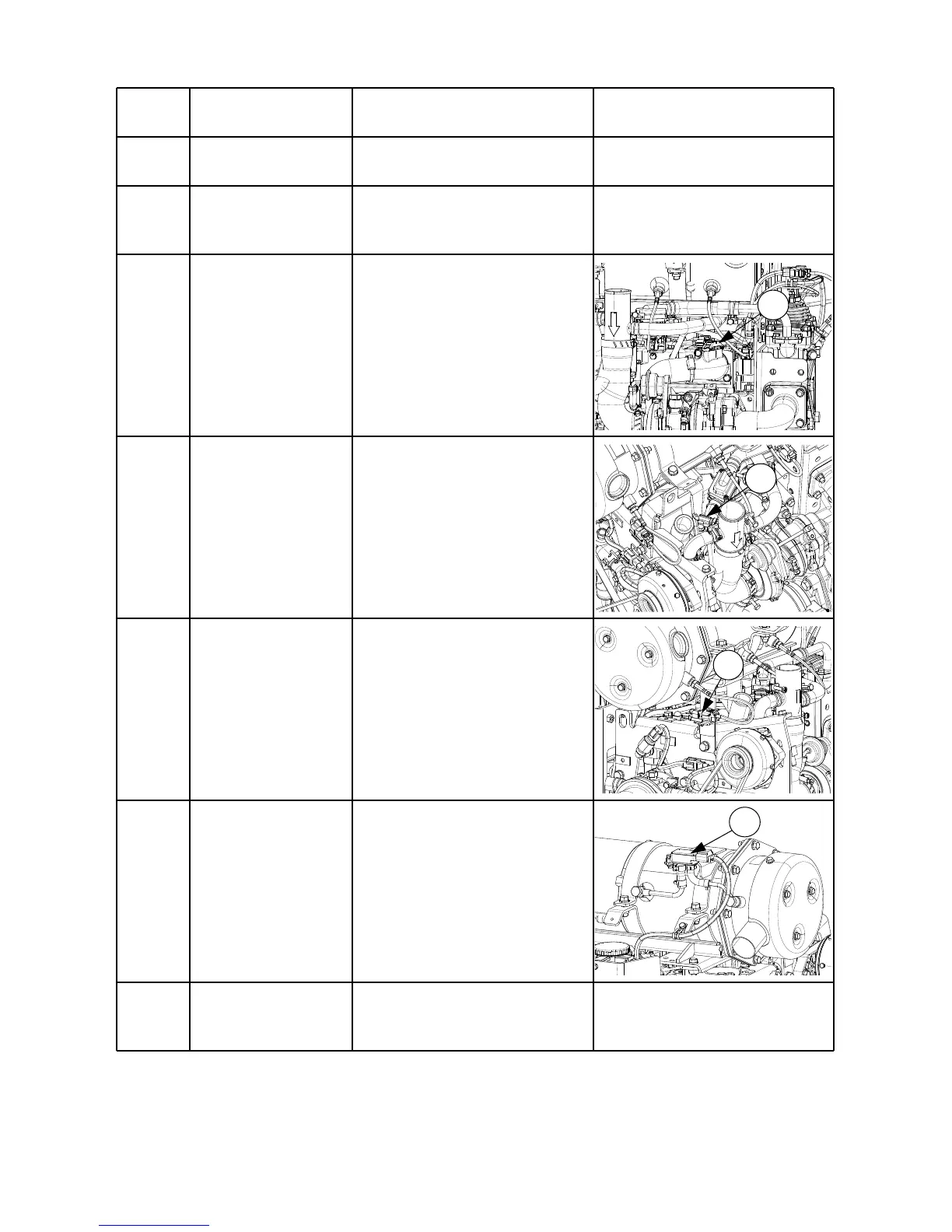

LS tractor XG3037H User Manual

3 -6
Error
Code
Failure part(s) Check point(s) Remark
AB09 - ECU(Barometric
pressure sensor)
- Normal sensor signal level :
over 0.25V
AB10 - ECU(Ambient air
temperature
sensor)
- Normal ECU temperature :
less than 115℃
AB11 - Boost pressure
sensor(4)
- Engine harness
- Normal sensor signal level :
0.5~4.5V
- Connector fitting
- Wiring harness open/short
circuit
AB12 - Intake manifold
temperature
sensor(5)
- Normal sensor signal level :
0.08~4.85V
- Connector fitting
- Wiring harness open/short
circuit
AB13 - Exhaust gas
temperature
sensor(6)
Engine harness
- Normal sensor resistance
(ohm) : 164.8~4,000Ω
- Connector fitting
- Wiring harness open/short
circuit
AB14 - DPF differential
pressure sensor(7)
- Normal sensor signal level :
0.25~4.75V
- Connector fitting
- Wiring harness open/short
circuit
AB15 - Battery
- Battery (+) cable
- Battery (-) cable
- Normal battery voltage :
6~29V(Instant)
- Connector fitting
4
6
7
5
