Hour meter
z The operating hour 0019.1 means the tractor has
been operated for 19.1hr (19 hours and 6
minutes).
12
Tachometer
13
EHL mode display (Not used)
13 14
14

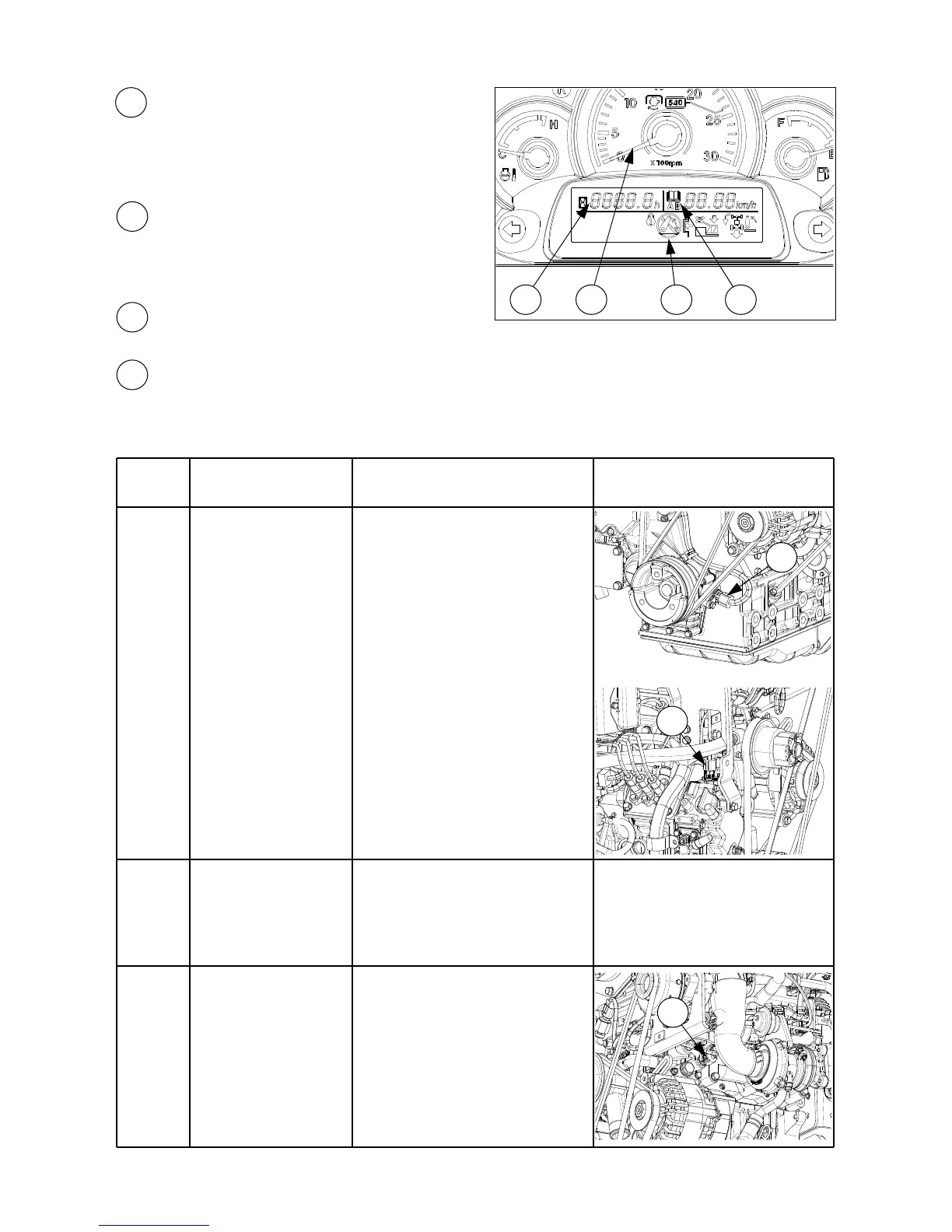

Error diagnosis code display
z This cluster shows error diagnosis codes related to the engine control.
z For the detail check, service tool may be required. Contact your authorized local dealer.
Error
Code
Failure part(s) Check point(s) Remark
AB02 - Main/Sub speed
sensor(1, 2),
- Engine harness
- Connector fitting
- Wiring harness open/short
circuit
AB04 - Accelerator pedal
position sensor
- Normal sensor signal level :
0.2~4.25V
- Connector fitting
- Wiring harness open/short
circuit
AB07 - Thermo sensor(3),
- Engine harness
- Normal sensor resistance
(ohm) : 0.11~25.4Ω
- Connector fitting
- Wiring harness open/short
circuit
1
2
3
z The tachometer shows the engine revolutions
per minute (“30” means 3000rpm).
11 12
