LS tractor XR4150 - Range Gear Shift Lever (HST Type)

3 -26
HST type
(2) Range gear shift lever
(HST type)
 Three speed gear shift and neutral position is
available.
 Before operating the range gear shift lever,
release the HST pedal, press down the brake
pedals, and stop the tractor completely.

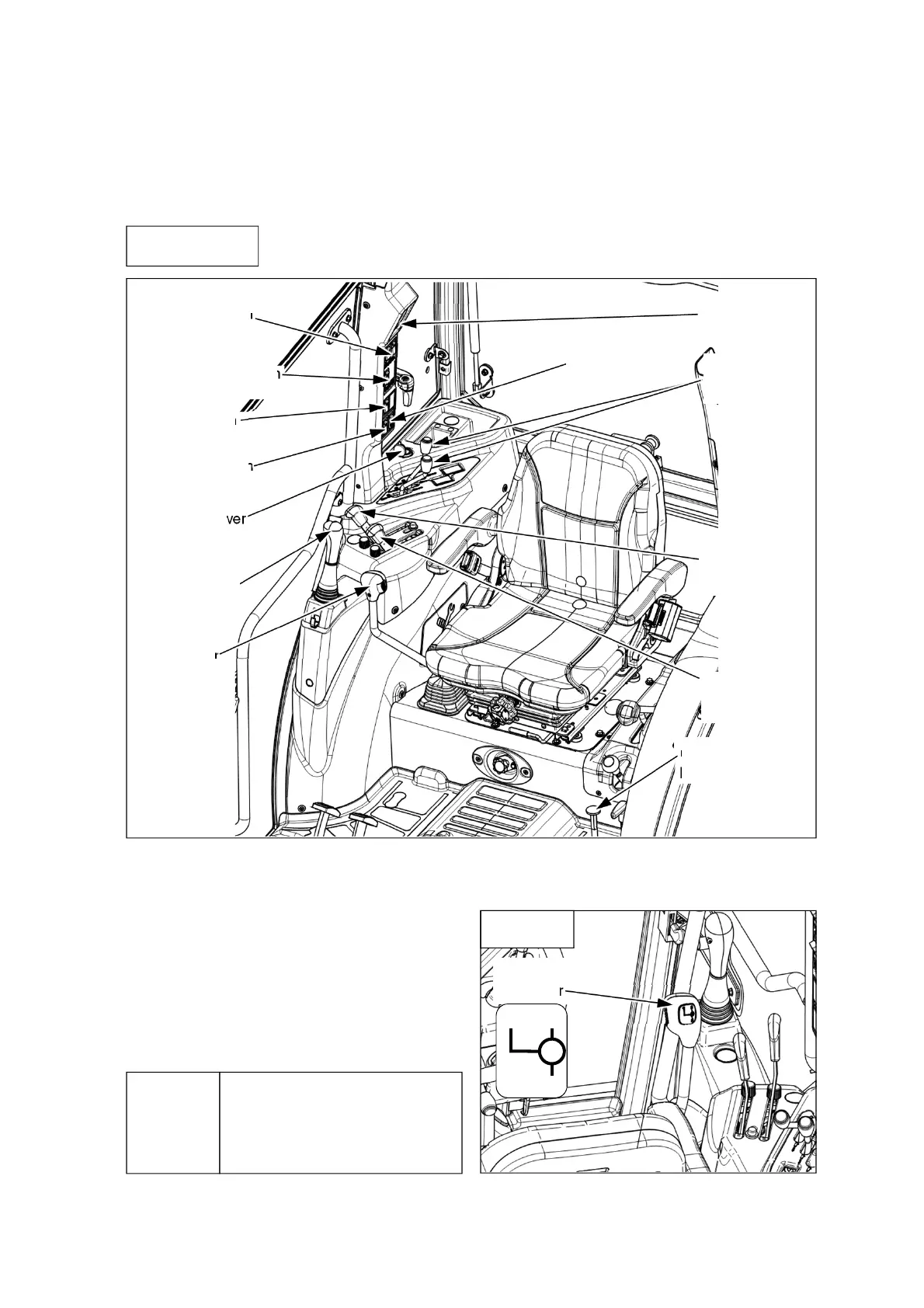

HST
Range gear
shift lever
Work light switch
(Cabin only)
Window wiper switch
(Cabin only)
Range gear
shift lever
Electrical power
outlet socket
(Cabin only)
Indoor light
(Cabin only)
ESC speed
up/down switch
Beacon switch
(Cabin only)
ESC main switch
(Cabin only)
Notice
▶Operate the range gear shift
lever by correct “H” pattern. If
operated diagonally, it may
cause a failure.
Important to owner, read carefully
2
31
N
Differential lock
pedal
Joystick lever
(Page 3-51)
Remote control
lever
(Page 3-49)
Position control
lever
(Page 3-44)
Draft control
lever
(Page 3-44)
