LS tractor XR4150 - Tilting Steering Wheel; Ventilation (Cabin Only)

2 -8

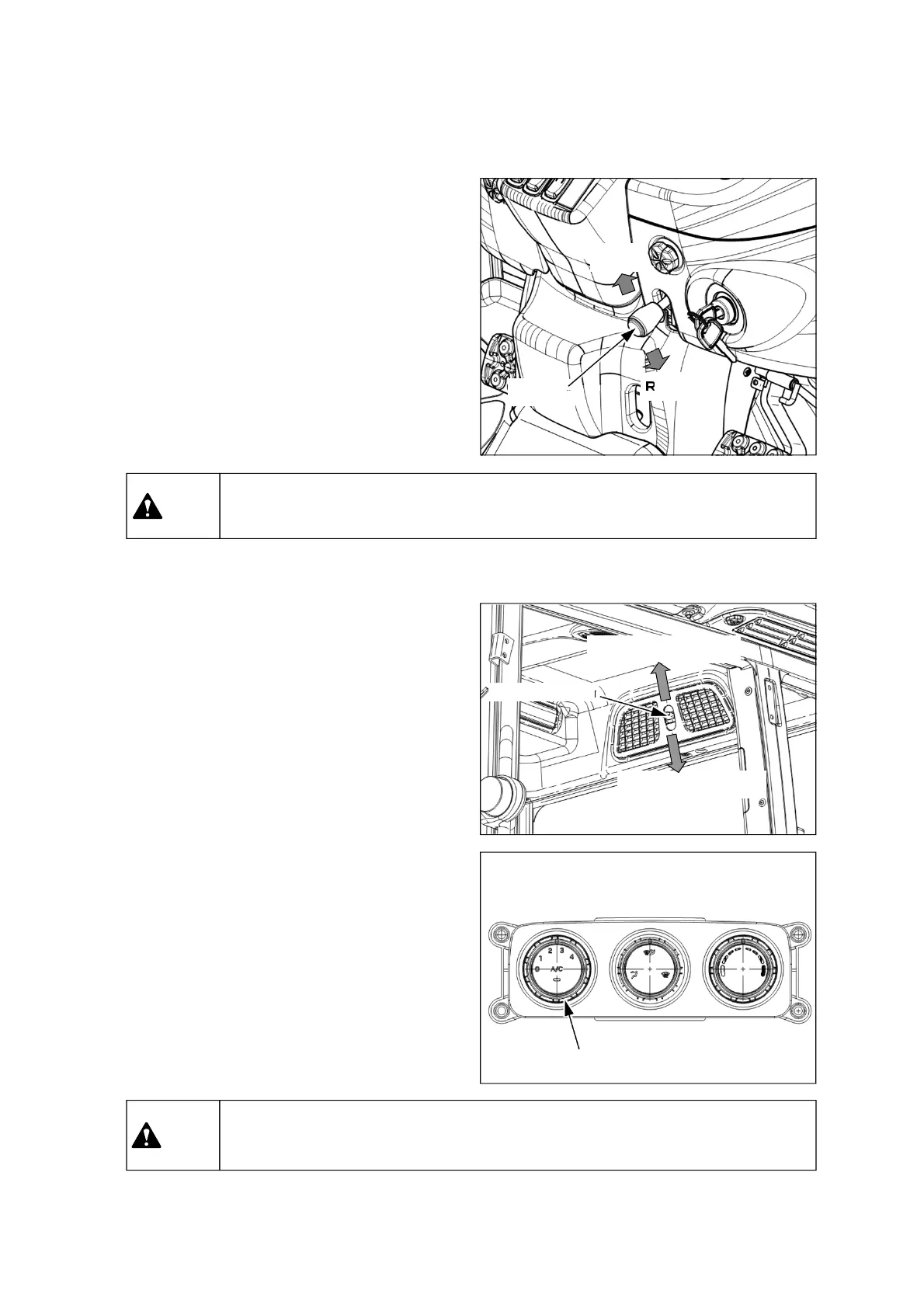

(6) Ventilation (Cabin only)
 Air can be taken from outside or inside of the
cabin by adjusting the ventilation lever.
- External circulation : Air comes from outside
via cabin air filters.
- Internal circulation : Air can be re-circulated
inside the cabin.
 To increase the air pressure inside the cabin,
move the ventilation lever to external circulation
and turn the blower control switch clockwise fully.
Warning
▶DO NOT ventilate the cabin in pesticides or other hazardous spraying area.
Ventilation lever
External circulation
Internal circulation
(5) Tilting steering wheel
 Push the tilt lever downward to release the
steering wheel and tilt the steering wheel to
desired position.
 Release the tilt lever to lock the steering wheel in
place, and check to make sure the column does
not moved forward and backward.
 Adjust the steering wheel only when the tractor
has stopped.
▶DO NOT adjust steering wheel while driving. It may cause a serious accident.
Caution
Lock
Release
Tilt lever
Blower control switch
