(5) Tail/brake light bulb and turn signal light bulb- Replace

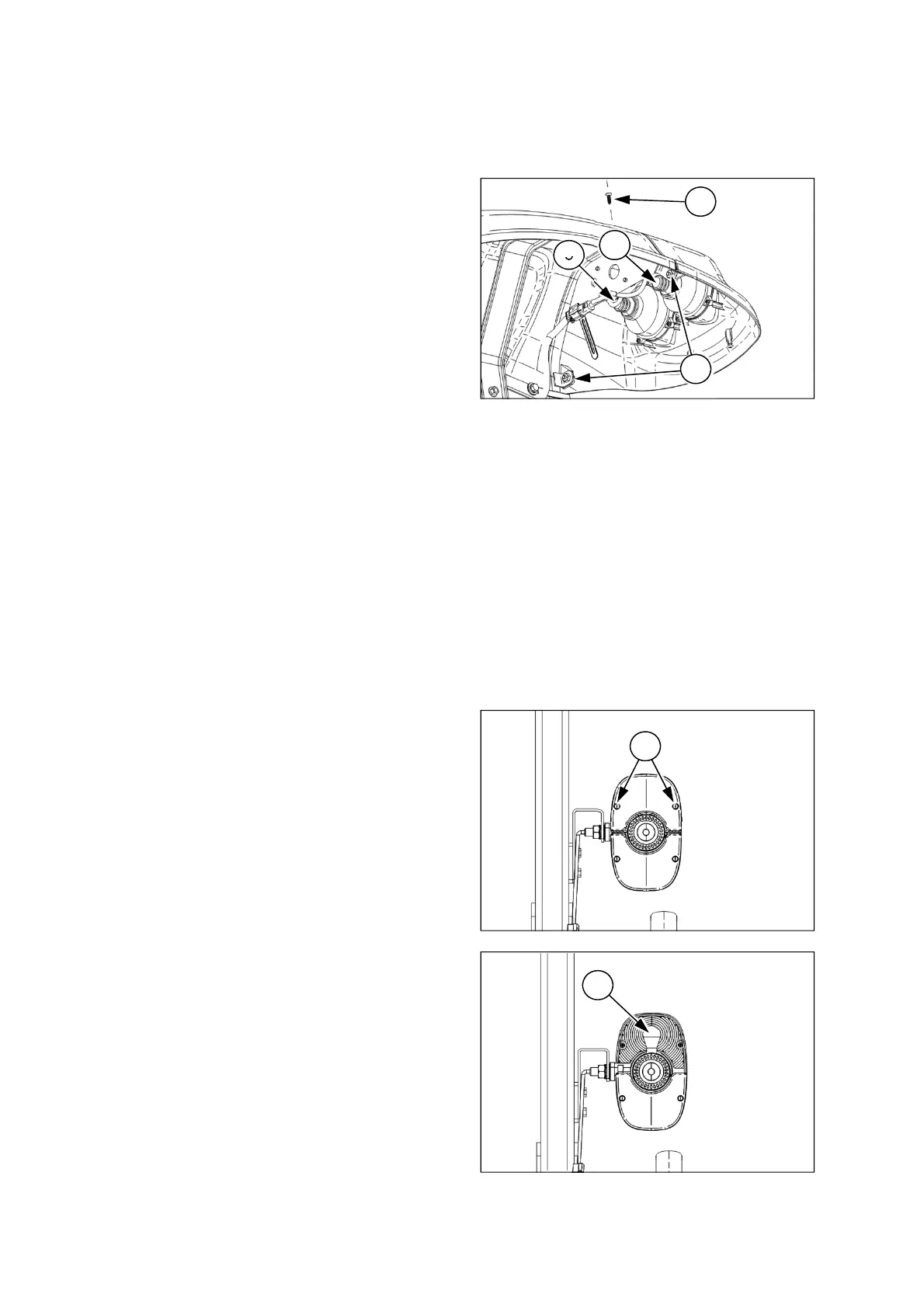

① Tail/brake light bulb and rear turn
signal light bulb replacement
1. Remove the harness connector.
2. Unscrew the locking screws①, ② with retaining
the rear lamp assembly.
3. Turn the socket of the brake light③ or turn
signal light④ counter-clockwise to remove the
socket from the housing.
4. Push in on the tail/brake light bulb or turn signal
light bulb and rotate counter-clockwise in the
socket to remove the old bulb.
5. Insert a new bulb into the socket and turn the
bulb in a clockwise direction until tightened.
6. Install the socket and rear lamp assembly.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
② Front turn signal light bulb
replacement – Roll-bar models
1. Remove the two screws① retaining the turn
signal light lens and remove the lens.
2. Push in on the turn signal light bulb② and
rotate bulb counter-clockwise in the socket to
remove the old bulb.
3. Insert the new bulb into the socket and turn it
clockwise until the bulb locks into place.
4. Install lenses and retaining screws.
NOTE: For about bulb specification, refer to the
chapter 5-6-(4) in this manual.
