LS tractor XR4150 - Symbols

1 -30
Gear Neutral

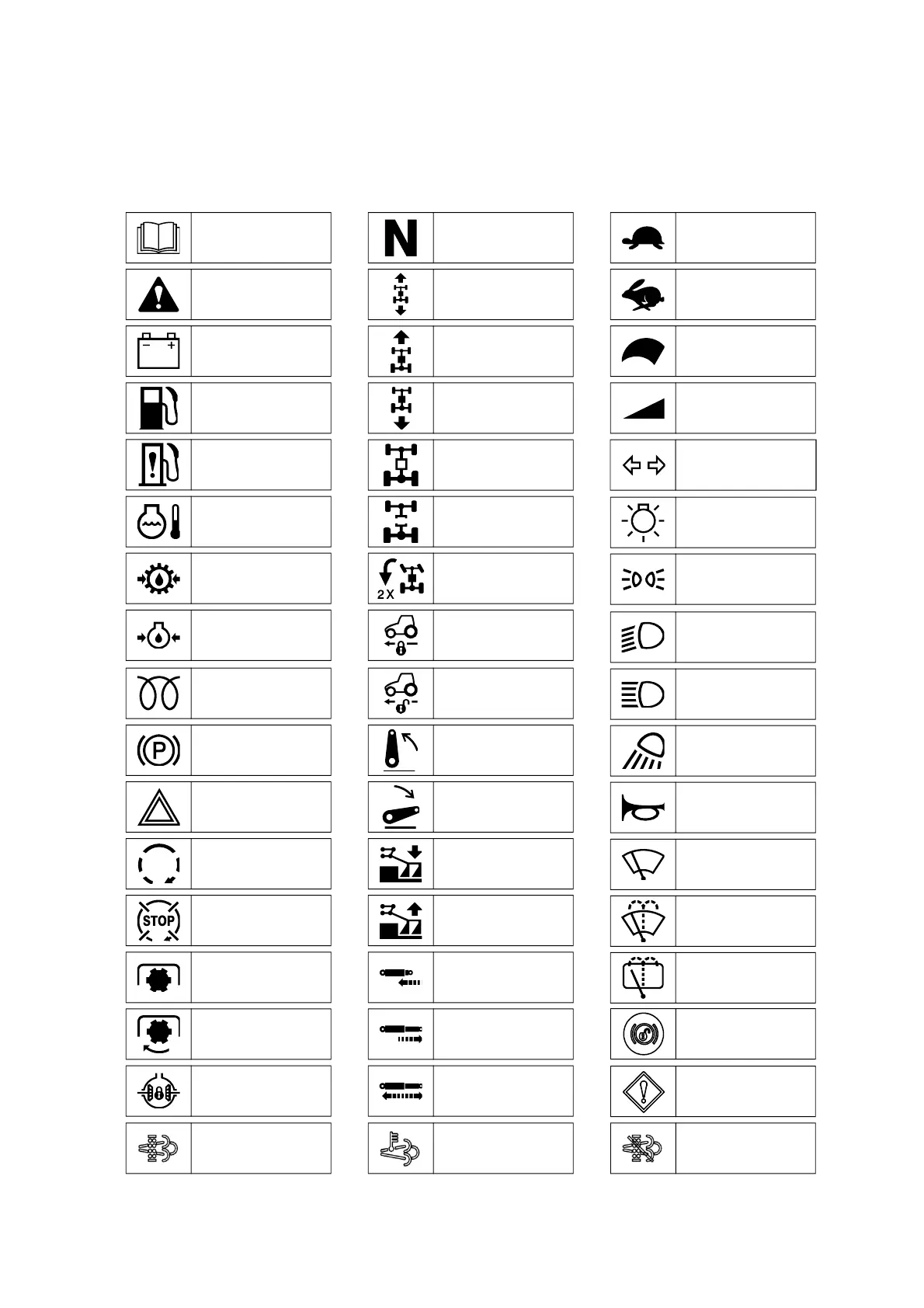

The followings show the symbols and its meaning used for the tractor.
Low speed
High speed
Engine speed
control (throttle)
Engine speed
control (throttle)
Position control
(Up)
Position control
(Down)
Draft control
(Deep)
Draft control
(Shallow)
Forward/Rearward
Forward
Backward
4WD disconnection
4WD connection
Quick turn
(optional)
Parking brake
Turn signal
light
Headlights
(downward)
Side lights
Headlights
(upward)
Work light
Light switch
Emergency lights
Cylinder rod
(shorten)
Cylinder rod
(extend)
Cylinder rod
(floating)
Window wiper
Window wiper
/ Washer (front)
Window wiper
/ Washer (rear)
Cruise drive
(optional)
Cruise drive
release (optional)
Fuel level
Refer to operator’s
Manual.
Fuel filter
Battery charging
Caution!
Transmission
oil pressure
Engine oil press-
ure
Engine coolant
temperature
Diesel engine
preheat
Differential lock
device
horn
Engine stop
PTO in operation
PTO stop
Engine start
Unlatched brake
pedal (optional)
DPF temperatureDPF regeneration DPF inhibited
Engine warning
(13) Symbols
