Light switch
(4) Light switch

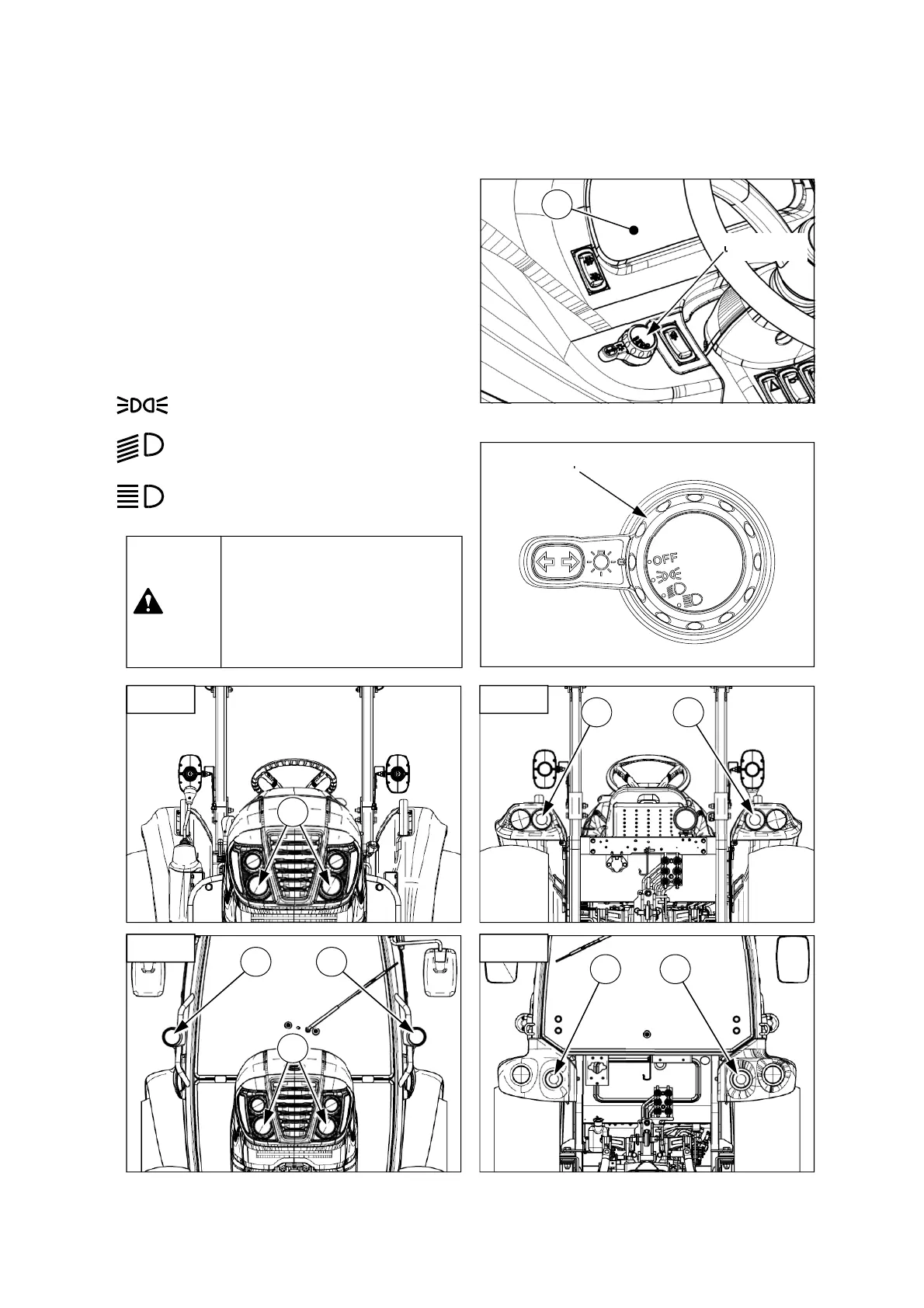

 This switch has four functions as follows.

OFF - Instrument panel and all lights are OFF.
- Instrument light and side lights are ON.
- Instrument light, side lights, tail lights
and headlights(low beam) are ON.
- Instrument light, side lights, tail lights
and headlights(high beam) are ON.
 Combination light switch is used to turn on/off
the following lights.
① Instrument panel lights, ② Side lights.
③ Tail lights, ④ Headlights.
1
Light switch
3 3
3 3
2 2
Roll-bar Roll-bar
Cabin Cabin
4
4
▶ When passing with other
vehicles in the opposite lane at
night, turn the headlights to low
beam not to disturb oncoming
cars.
Caution
