④ Attaching power take-off(PTO) drive shaft
 When connecting PTO drive shaft to the PTO shaft and implement, make sure to check that the
locking pin of the PTO drive shaft is locked in place.

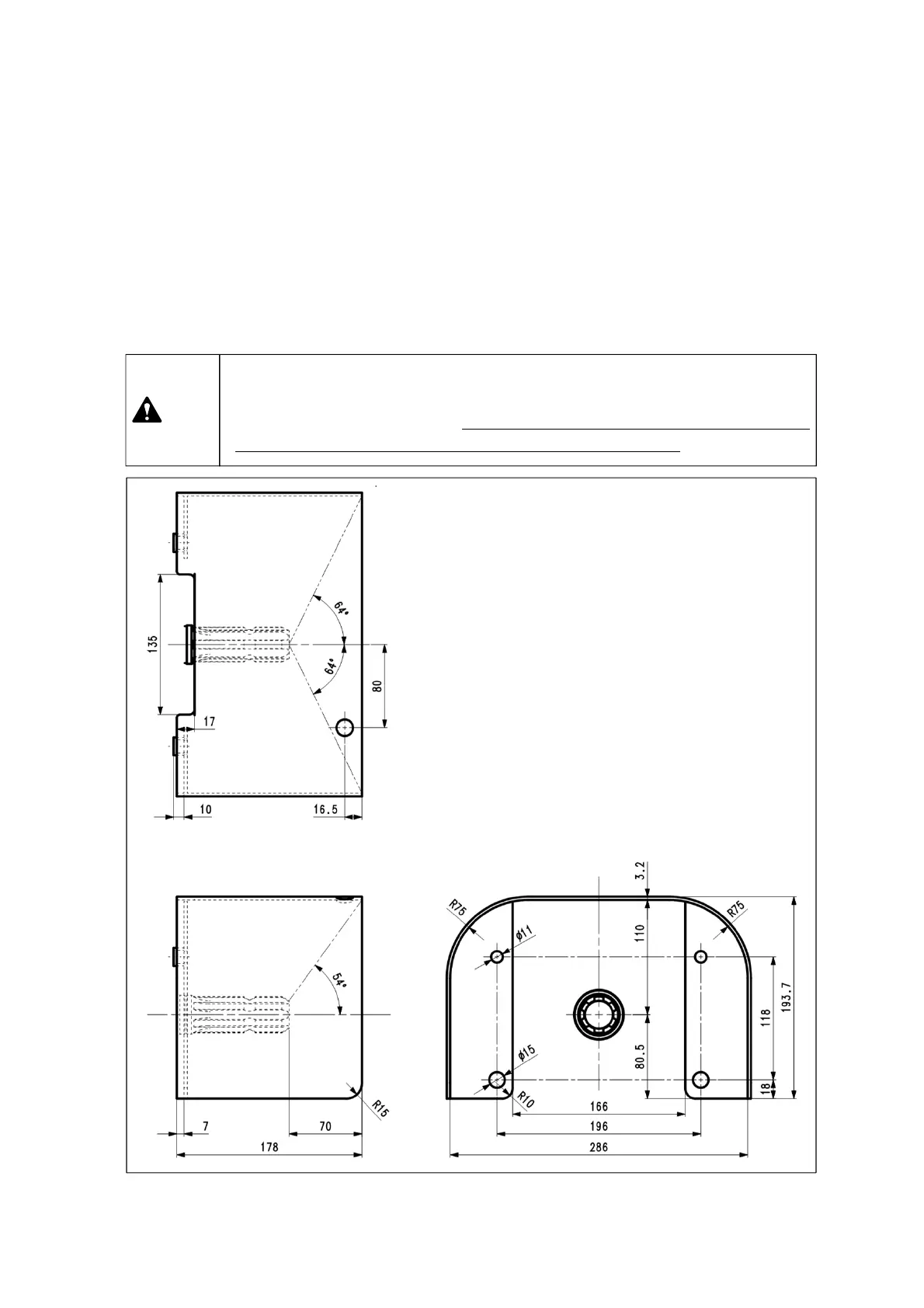

 When attaching PTO drive shaft, refer to the drawings as below for safety clearance zone.
 After installing implement(s), check the followings according to the position of the 3-point linkage.
- check the articulation angle of the PTO drive shaft and rotating noise is suitable.
- check the interference with PTO safety cover and other structure.
- check the effective engaging length of the PTO drive shaft.
▶ The steep inclination of the PTO drive shaft makes a loud noise and cause a failure
of the PTO driveline. When working in the field, do not lift up the rear implement
over the manufacture’s limitation that the maximum articulation angle of the PTO
drive shaft is 18 degree when the PTO drive shaft is rotating.
