Caution
▶ The gas generated from the battery can be exploded by spark.
DO NOT connect the negative(-) cable of auxiliary battery to the negative (-)
terminal of tractor battery. Make sure to connect to the engine block.
▶ Keep all flames and sparks away and DO NOT smoke while charging the battery.
④ How to use jumper cables
※ If the battery which is attached to the tractor is discharged and needs to connect a auxiliary battery,
follow the instructions as below.

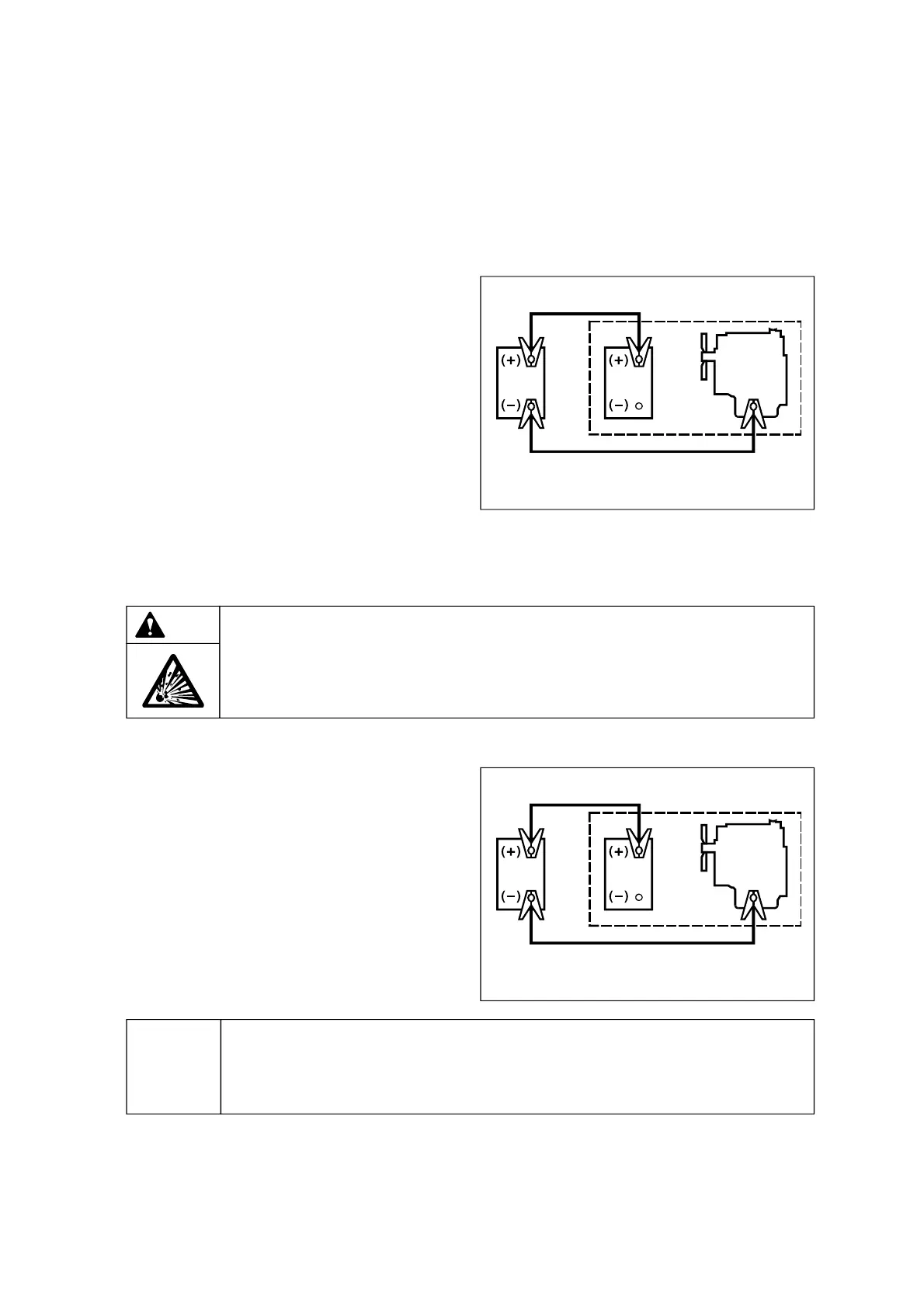

< Connecting order of jumper cables >
①②
③④
Engine
Normal Discharge
Red cable
Black cable
ⓐ Connecting Jumper cables
Check followings before connecting the cables.
- Is the spring of clamp normal?
- Is the cable and clamp cut-off?
1. Stop engine, apply parking brake and remove
the ignition key.
2. Connect two (+) terminals of both batteries with
red cable. (tractor battery-①, auxiliary battery-②)
3. Connect one end of black cable to (-)
terminal(③)
of auxiliary battery and the other end to engine
block desired to start (④).
4. Start engine. If the engine does not start, check
the electrolyte level of each battery.
ⓑ Removing Jumper cables
Remove jumper cables as referring to the right
figure, “Removing order of jumper cables”.
▶Pay attention not to change the (+) and (-) pole. If not, it may cause a failure of
electric circuit or the damage of wire and even the polarity of battery can be
changed at over-discharged state.
Notice
< Removing order of jumper cables >
①②
③
④
Engine
Normal Discharge
Red cable
Black cable
