LS LL2300 - IMFL20. Boom Group

32

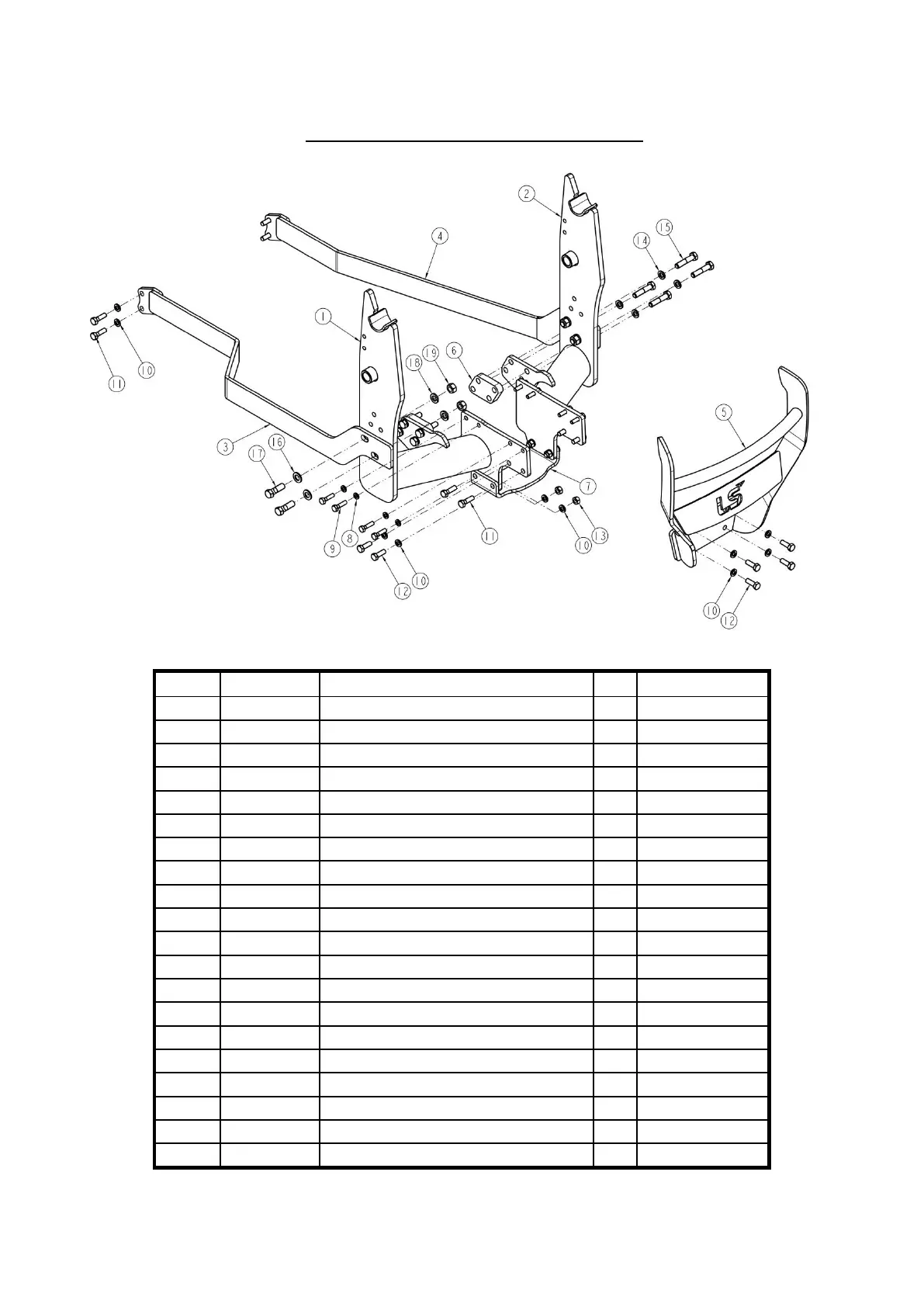

IMFL10. MOUNTING GROUP
No.
LS PART.NO
DESCRIPTION
QTY
REMARKS
1-19
-
MOUNTING KIT
1
1
40427402
SUB-FRAME RH
1
2
40427403
SUB-FRAME LH
1
3
40427404
BACK AXLE RH
1
4
40427405
BACK AXLE LH
1
5
40420780
GRILLE GUARD
1
6
40427406
SPACER, 20t
2
7
40427407
UNDER BAR, 10t
1
8
40381866
SPRING WASHER, M10
8
9
40427408
BOLT (10.9T), M10x40L
8
10
40160234
SPRING WASHER, M12
16
11
40160716
BOLT(10.9T), M12x40L
8
12
40420781
BOLT(10.9T), M12x35L
8
13
40159748
NUT, M12
4
14
40160235
SPRING WASHER, M14
8
15
40427409
BOLT(10.9T), M14x65L
8
16
40381864
PLAIN WASHER, M16
4
17
40427410
BOLT(10.9T), M16x50L
4
18
40427411
SPRING WASHER, M16
4
19
40427412
NUT, M16
4
