49
SERVICE MANUAL(CYLINDERS)

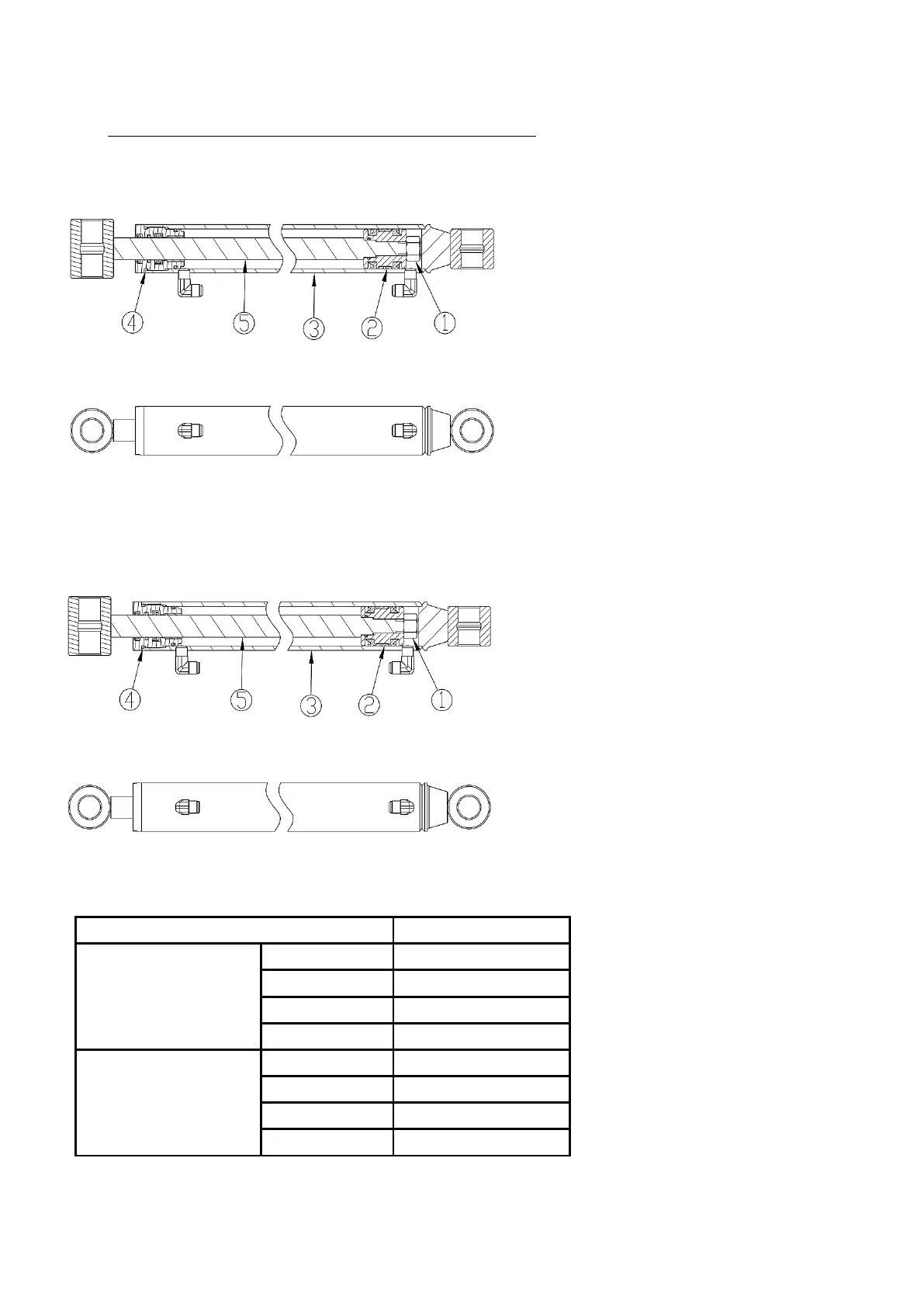

Boom cylinder
(1) Nut
(2) Piston
(3) Cylinder tube
(4) Cylinder head
(5) Piston rod
Boom cylinder consists of a nut (1), piston (2),
cylinder tube (3), cylinder head (4), piston rod (5)
and other parts as shown in the figure above.
They are single-rod double acting cylinder in which
the reciprocating motion of the piston is controlled
by hydraulic force applied to both of its ends.
Bucket cylinder
(1) Nut
(2) Piston
(3) Cylinder tube
(4) Cylinder head
(5) Piston rod
Bucket cylinder consists of a nut (1), piston (2),
cylinder tube (3), cylinder head (4), piston rod (5)
and other parts as shown in the figure above.
They are single-rod double acting cylinder in which
the reciprocating motion of the piston is controlled
by hydraulic force applied to both of its ends.
Cylinder specifications
Model
LL2300
Boom cylinder
Tube I.D.
45 mm (1.8”)
Rod O.D.
25mm (1.0")
Closed length
610 mm (24.0")
Stroke
375 mm (14.8")
Bucket cylinder
Tube I.D.
40 mm (1.6")
Rod O.D.
25 mm (1.0")
Closed length
565 mm (22.2")
Stroke
350 mm (13.8")
