15
LOADER INSTALLATION
◈ Position the loader on a hard level surface. The more level the surface the easier the loader is to install.
▶ Important : Do not tighten any hardware until all components are attached onto the tractor.
Caution : Lift and support all loader components safely.

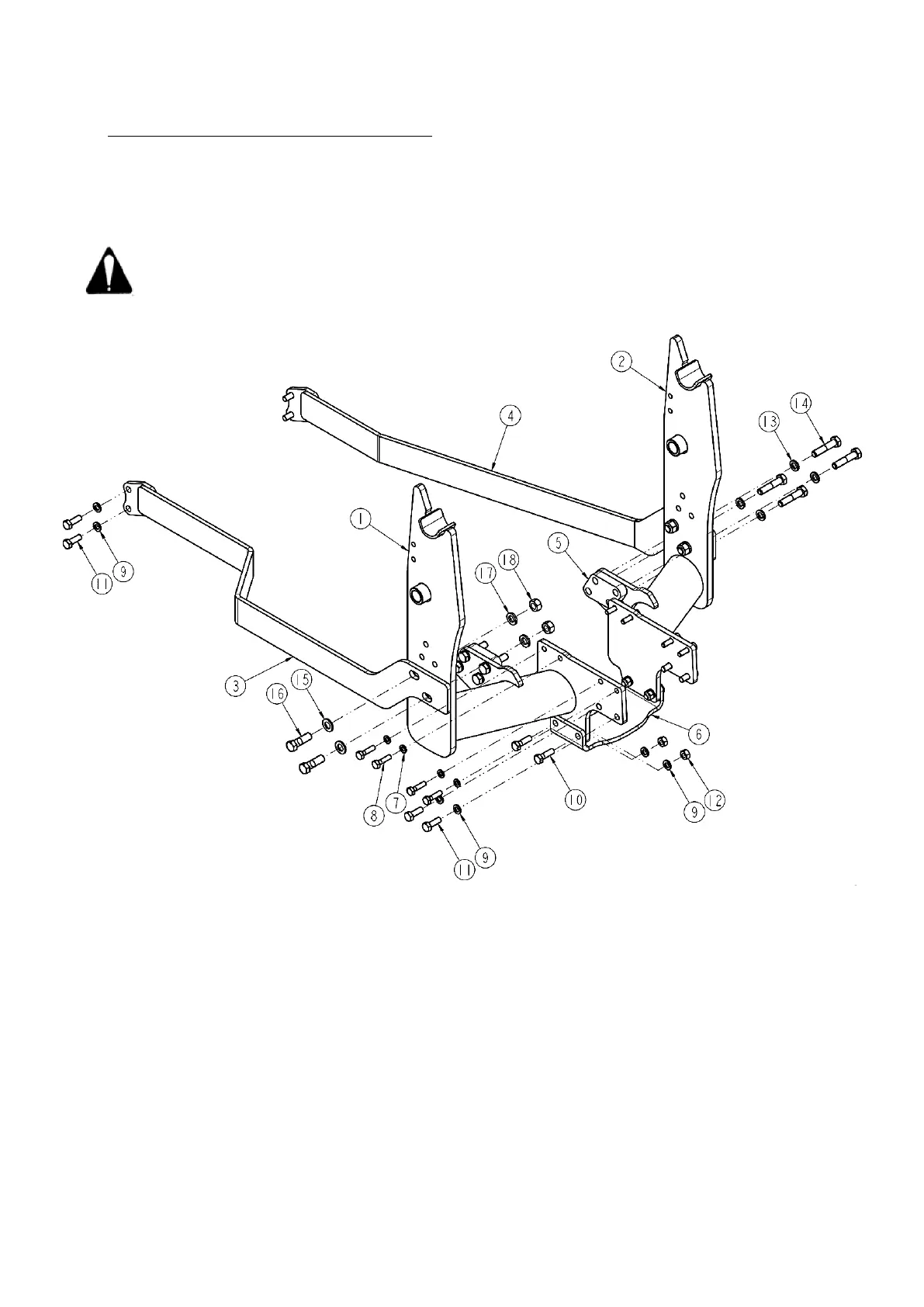

▶ Using a hoist, install mounting frame LH/RH.
(1) Mounting frame RH -1EA
(2) Mounting frame LH -1EA
(3) Back axle RH -1EA
(4) Back axle LH -1EA
(5) Spacer, 20t -2EA
(6) Under bar, 10t -1EA
(7) Spring washer, M10 -8EA
(8) Bolt, M10x40L -8EA
(9) Spring washer, M12 -12EA
(10) Bolt, M12x40L-4EA
(11) Bolt, M12x35L-8EA
(12) Nut, M12-4EA
(13) Spring washer, M14-8EA
(14) Bolt, M14x65L-8EA
(15) Plain washer, M16-4EA
(16) Bolt, M16x50L-4EA
(17) Spring washer, M16-4EA
(18) Nut, M16L-4EA
To Next Page
