LS LL2300 - Page 17

16

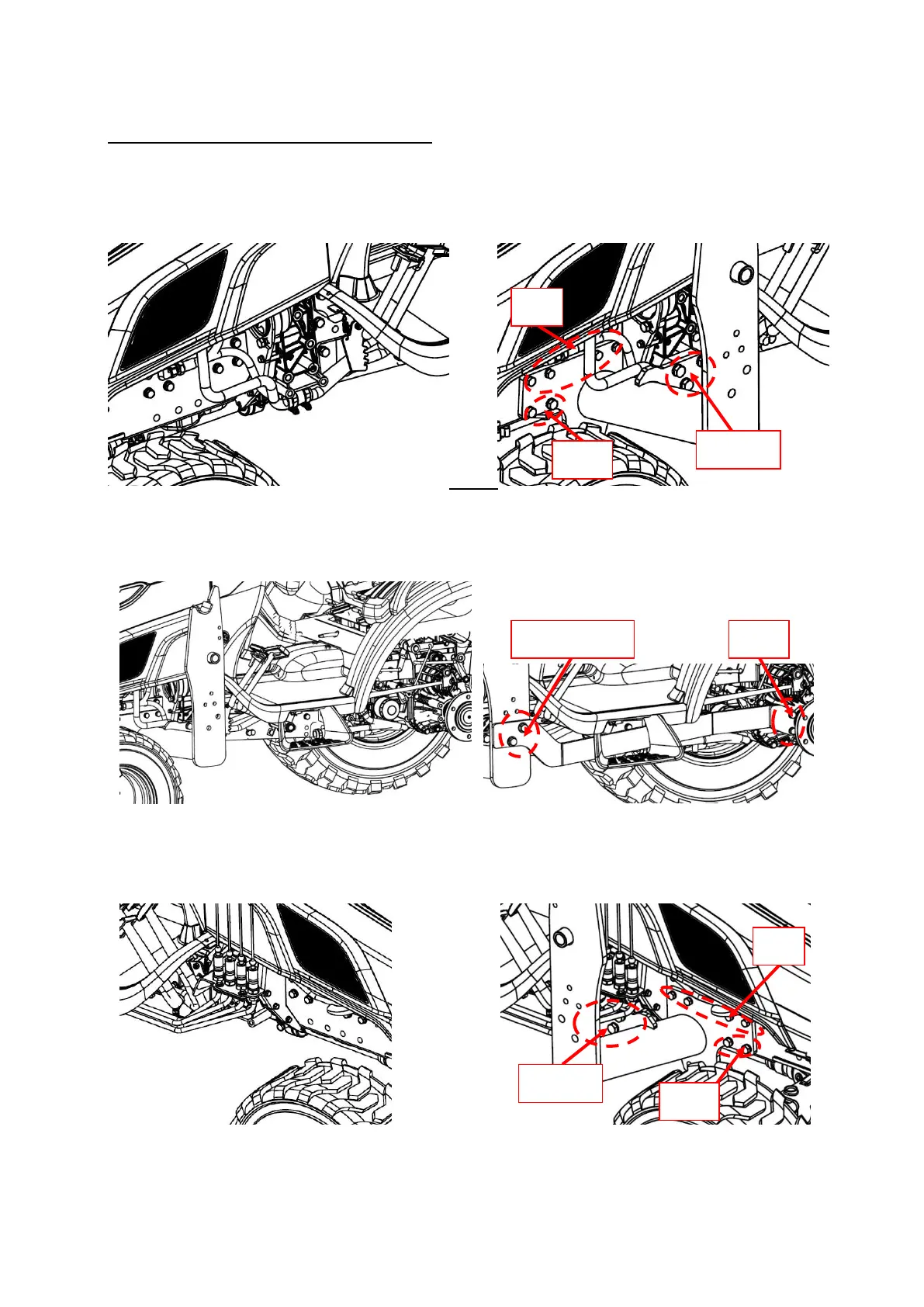

LOADER INSTALLATION
1. Install the left-hand loader mount and Spacer(5) on the left-hand tractor frame, secure with M10x40L bolts(8) ,
M10 spring washers(7) - (Torque to 54N.m(40lb ft)), M12x35L bolts(11), M12 spring washers(9) - (Torque to
94N.m(70lb ft)), M14x65L bolts(14), M14 spring washers(13). - (Torque to 151N.m(111lb ft)).
2. Install the left-hand Back axle mount on the left-hand tractor frame, secure with M12x35L bolts(11), M12 spring
washers(9) - (Torque to 94N.m(70lb ft)), M16x50L bolts(16), M16 plain washers(15), M16 spring washers(17),
M16L nuts(18). - (Torque to 234N.m(173lb ft)).
3. Install the left-hand loader mount and Spacer(5) on the left-hand tractor frame, secure with M10x40L bolts(8) ,
M10 spring washers(7) - (Torque to 54N.m(40lb ft)), M12x35L bolts(11), M12 spring washers(9) - (Torque to
94N.m(70lb ft)), M14x65L bolts(14), M14 spring washers(13). - (Torque to 151N.m(111lb ft)).
5, 13, 14
7, 8
9, 11
7, 8
5, 13, 14
9, 11
15, 16, 17, 18
9, 11
