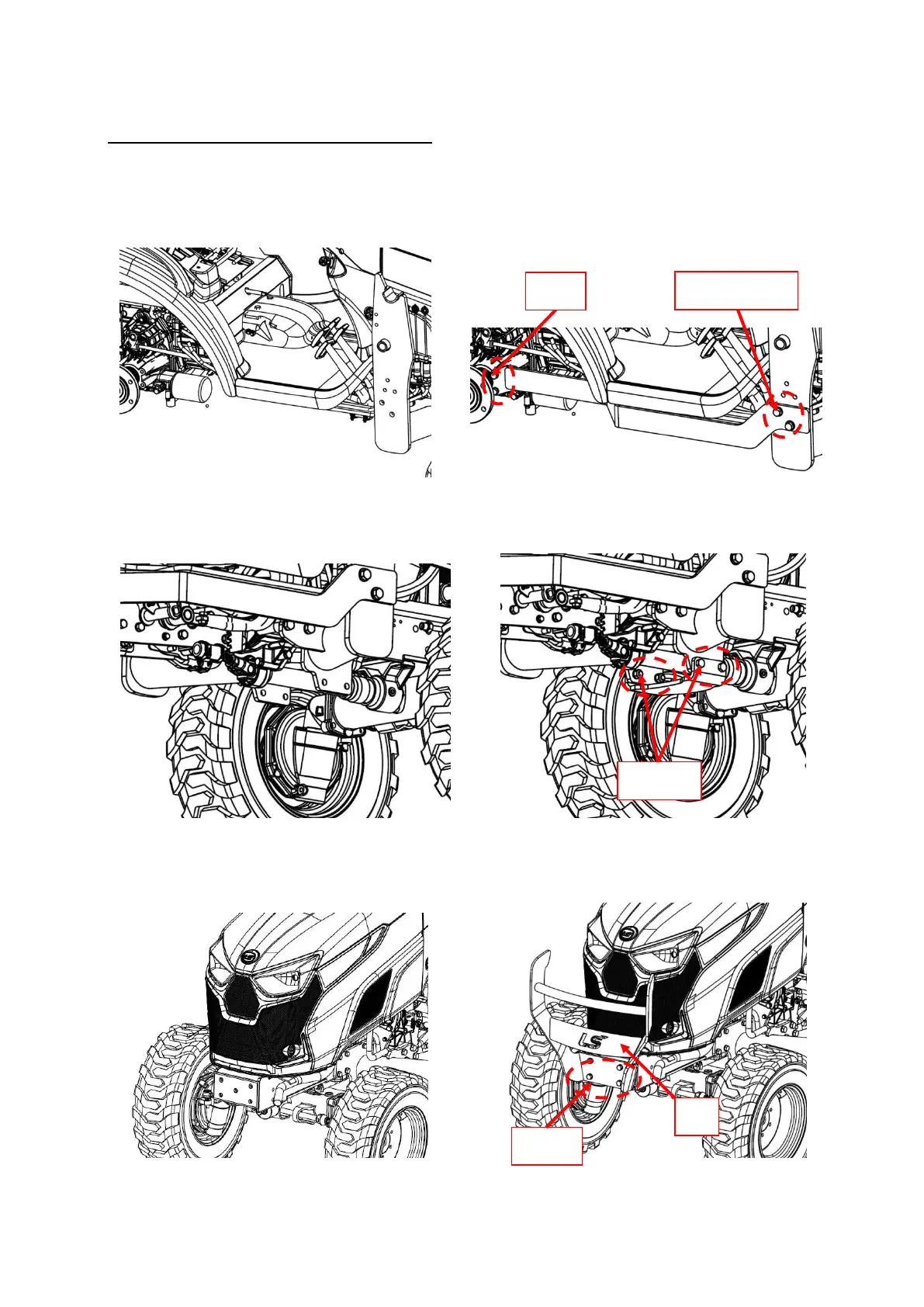

LOADER INSTALLATION

4. Install the left-hand Back axle mount on the left-hand tractor frame, secure with M12x35L bolts(11), M12 spring

washers(9) - (Torque to 94N.m(70lb ft)), M16x50L bolts(16), M16 plain washers(15), M16 spring washers(17),

M16L nuts(18). -(Torque to 234N.m(173lb ft)).

5. Install the under plate between the left and right frame of the loader secure with M12x40L bolts(10), M12 spring

washers(9), M12 nuts(12). - (Torque to 94N.m(70lb ft)).

6. Install the grille guard(19) on the tractor frame, secure with M12x35L bolts(11), M12 spring washers(9). - (Torque

to 94N.m(70lb ft)).

9, 10, 12

15, 16, 17, 18

9, 11

20, 21
