18
LOADER INSTALLATION

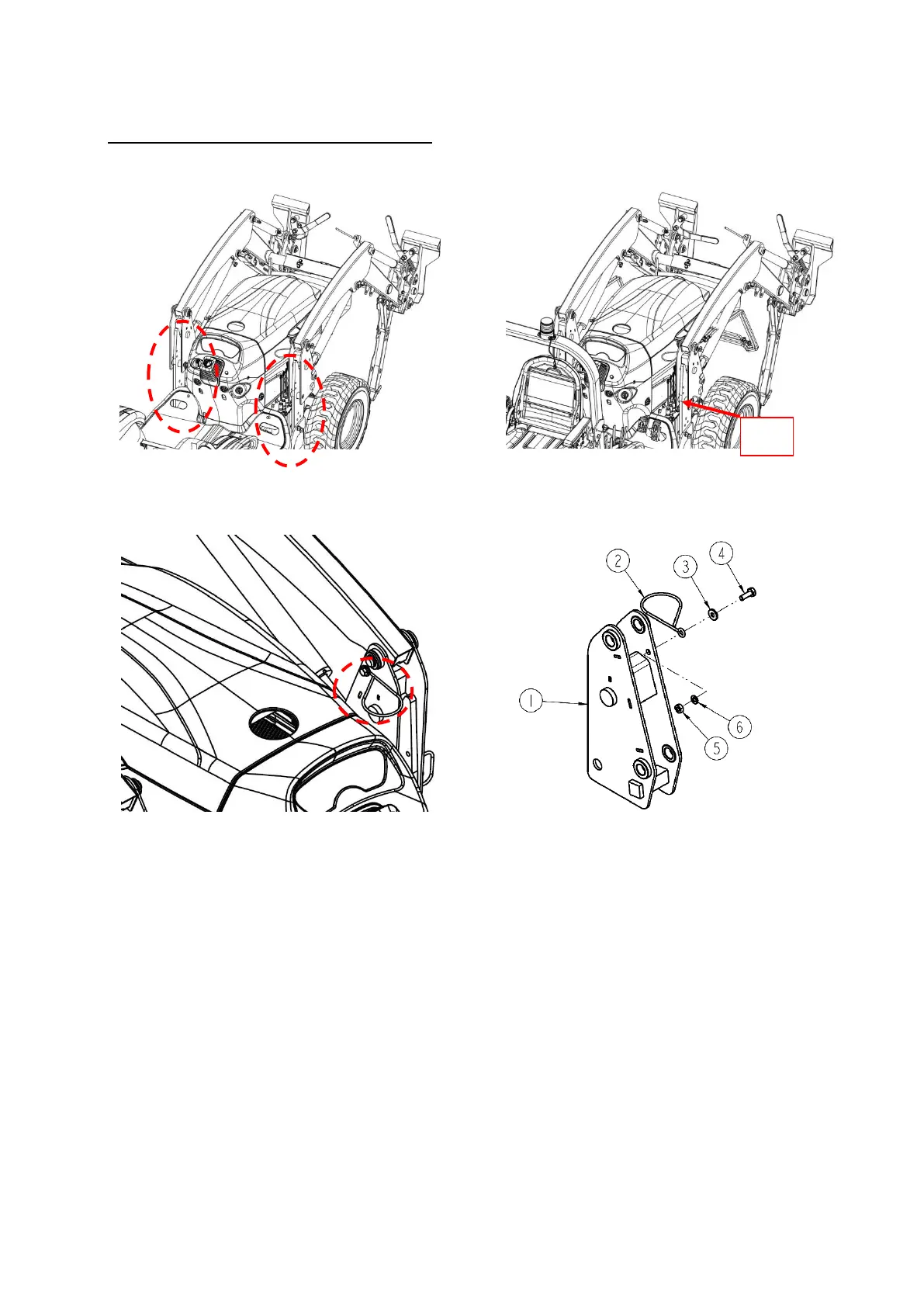

7. Install the mounting frame and boom assy. And assemble the pin in the hole.
8. Install the hose guide(2) on the loader boom(1), secure with M10x30L bolt(4), M10 plain washer(3), M10 spring
washer(6), M10 nut(5). - (Torque to 54N.m(40lb ft)).
pin
