LS LL2300 - IMFL50. Hydraulic Line Group

37

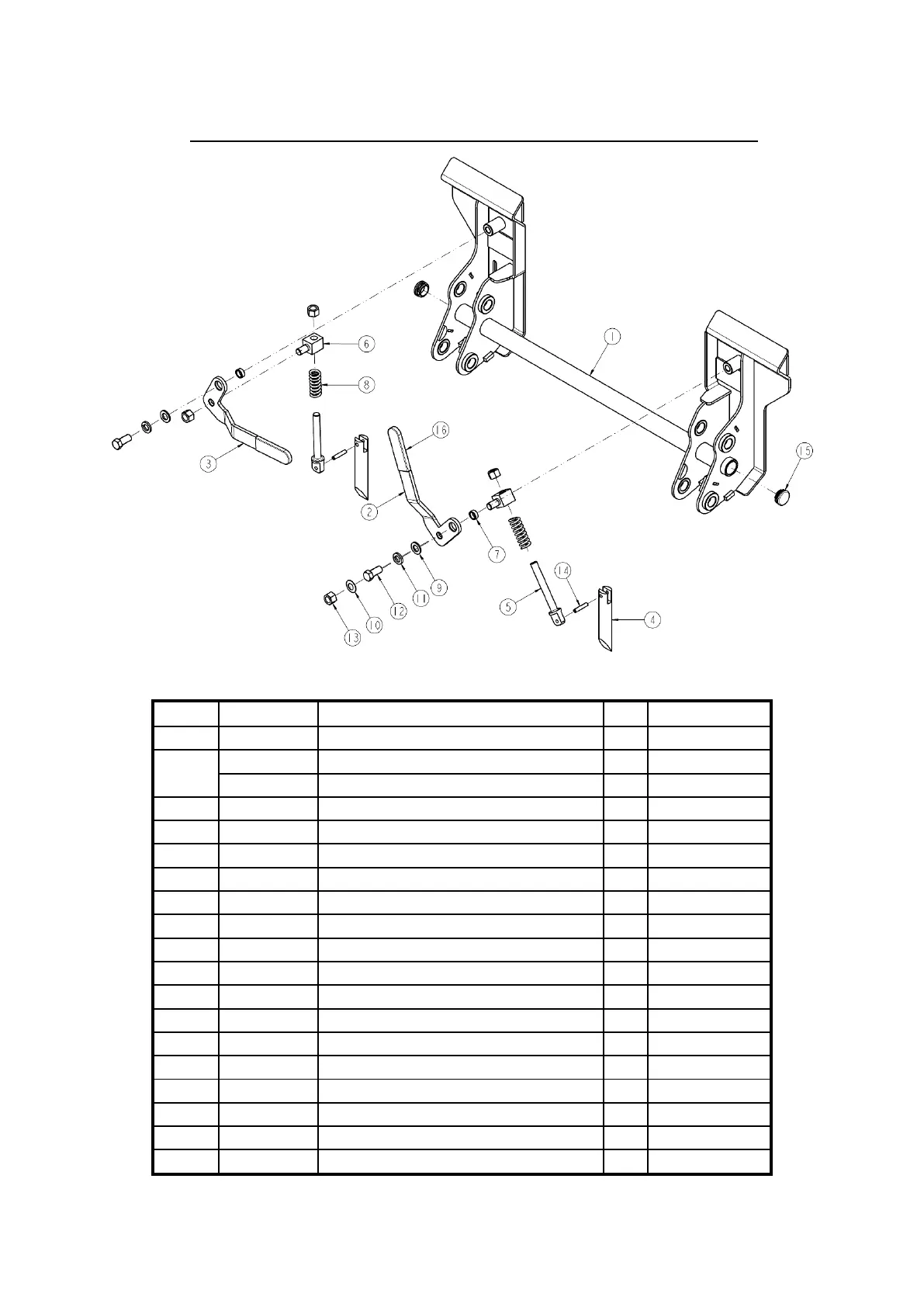

IMFL41. QUICK ATTACH GROUP (BOBCAT TYPE)
No.
LS PART NO.
DESCRIPTION
QTY
REMARKS
1-16
40427455
COUPLER B/C
1
1
40427456
COUPLER-ASL
1
~ FL50CC0457
40438311
COUPLER-ASL
1
FL50CC0458 ~
2
40427457
LEVER RH, 8t
1
3
40427458
LEVER LH, 8t
1
4
40381820
PIN, Ø30
2
5
40381821
PIN, Ø30
2
6
40381812
PIN, 30x30,
2
7
40427459
BUSHING, Ø21.7x2.8tx8.3L
2
8
40381852
SPRING
2
9
40381864
PLAIN WASHER, M16
2
10
40427460
DISC SPRING WASHER, DIN 2093 C31.5
1
11
40427411
SPRING WASHER, M16
2
12
40427461
BOLT(10.9T), M16x35L
2
13
40381801
LOCK NUT, M16
4
14
40381824
SPRING PIN, Ø8x40L
2
15
40381590
PIPE INSERT, Ø37x1x3
2
16
40381571
HANDLE
2
