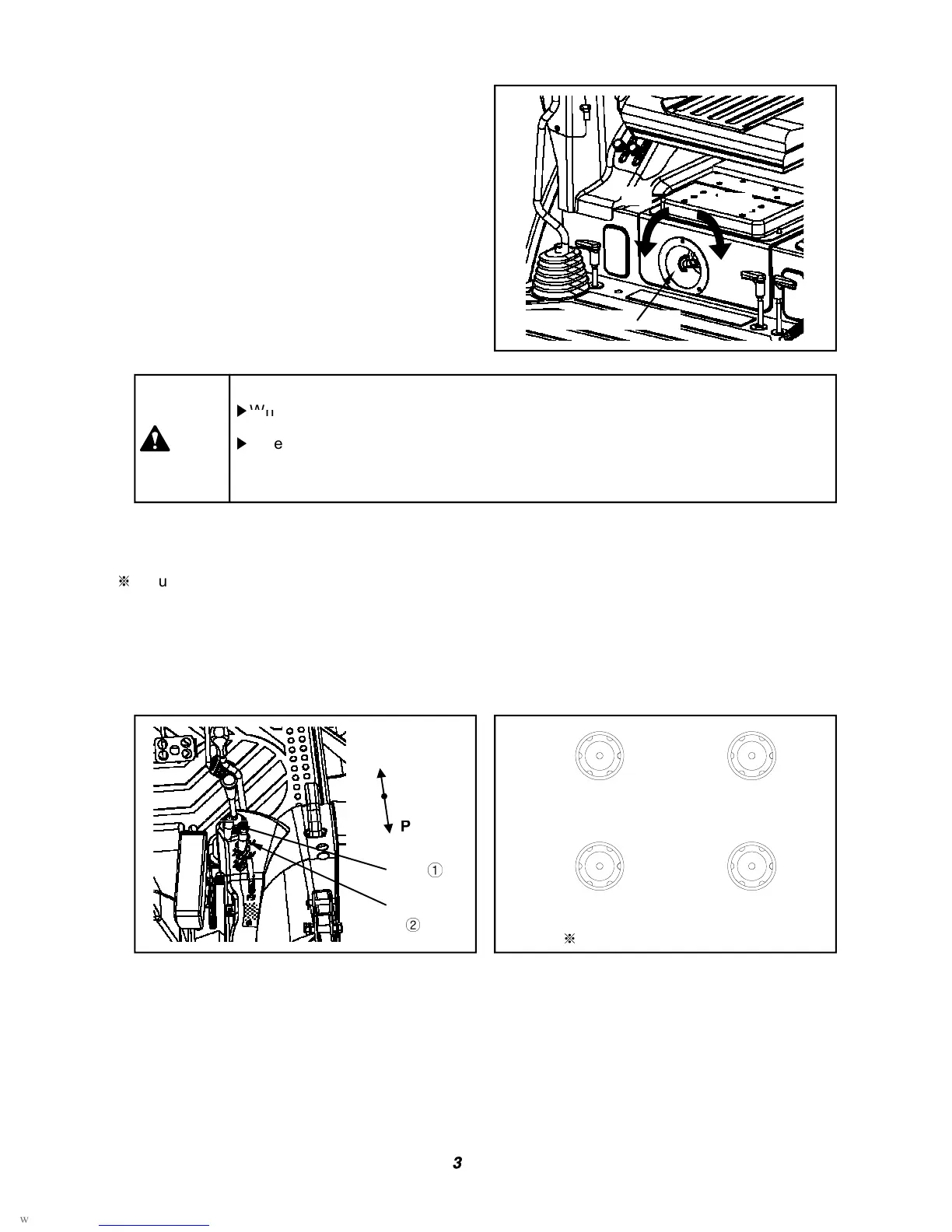

(3) Down speed control knob
Turn the valve knob to the right to lower the
implement slowly and to the left to rise speed
faster. If turning right fully, the implement shall
be fixed and even if lowering down the position
control lever, the implement does not let down.
Tiller work : Slow in down speed
plough work : Fast in down speed
When working in hard ground, slow down
the down speed to avoid the bounding of
the implements.
When running on the road, turn right the down speed control knob slightly to lock.
Down speed control knob
Fast
Slow
When running on the road, turn right the down speed control knob slightly to lock.
▶
When changing the blades of tiller or removing grass, stop the engine and turn the
down speed control knob to right slightly to lock. (The valve knob may turn twice.)
Warning
(4) Remote control lever and Quick coupler
※
By using the remote control valve, the implement (i.e.dump trailer, hydraulic conversion plough etc.)
attached to the tractor shall be operated by the hydraulic pressure
Push the remote control lever forward and the hydraulic pressure operates to the upper coupler. In
this case, the lower coupler shall be connected to the drain.
Inside and outside lever is operated respectively and at the same time when operating the lever, the
one received less force begins to start first
Push
Push
3
3 3
3 - 17
Inside lever
(double acting)
Outside lever
(single/double acting)
Pull
<
※
View from rear of the tractor>
Lever
②
Lever
①
