(9) Adjusting Wheel tracks and
tire replacement
If the front wheel track is adjusted, check the
clearance between tires and tractor body case
by case. If necessary, the steering angle must
be adjusted as following page.

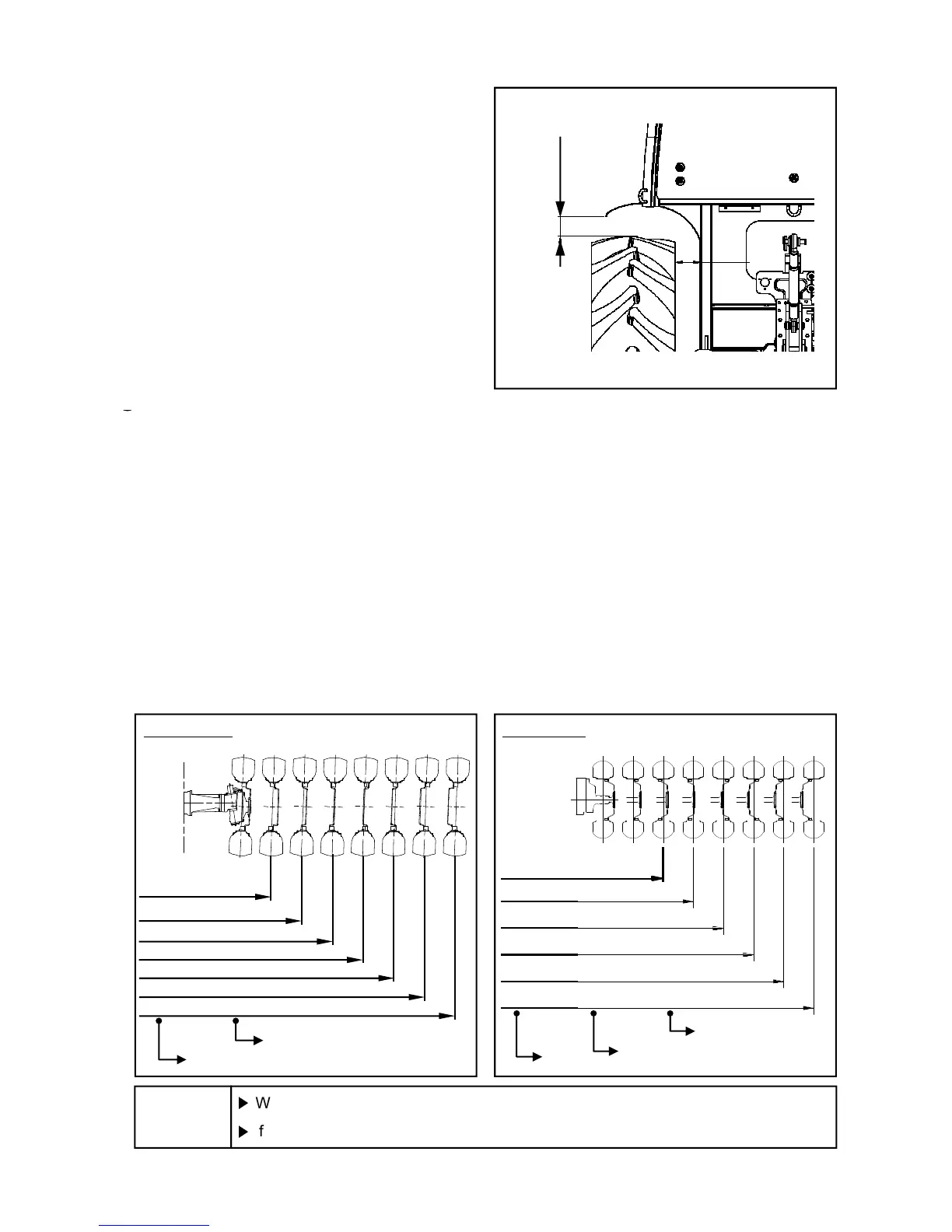

When adjusting rear wheel track, check the
radial and lateral clearance between rear tire
and tractor chassis as below.
- A : 60mm (2.4 in) (Minimum)
- B : 50mm (2.0 in) (Minimum)
- U5010, U5020 :
1336 (STD) ~ 1644 mm (52.6 ~ 64.7 in)
- U5030 :
1408 (STD) ~ 1742 mm (55.4 in ~ 68.6 in)
Front wheel Unit : mm (inch)
②
②②
② Rear wheel track
- U5010 :
1256 (STD) ~ 1558 mm (49.4 ~ 61.3 in)
- U5020 :
1326 (STD) ~ 1718 mm (52.2 ~ 67.6 in)
- U5030 :
1426 (STD) ~ 1666 mm (56.1 ~ 65.6 in)
* STD : Standard wheel track.
Rear wheel Unit : mm (inch)
4
4 4
4 - 14
U5010/U5020
U5030
▶
When adjusting the wheel track, pay attention to the direction of tire lugs.
▶
if it shows “/\” shape when looked behind, it is correct.
Notice
1256 (49.4)
1266 (49.8)
1450 (57.1)
1460 (57.5)
1548 (60.9)
1558 (61.3)
U5020
U5010
U5030
1408
(55.4)
1500 (59.1)
1542 (60.7)
1608 (63.3)
1634 (64.3)
1742 (68.6)
1434 (56.5) 1390 (54.7)
1444 (56.9)
1482 (58.3)
1536 (60.5)
1590 (62.6)
1644 (64.7)
1336
(52.6)
1326 (52.2)
1392 (54.8)
1504 (59.2)
1606 (63.2)
1718 (67.6)
1538 (60.6)
1572 (61.9)
1666 (65.9)
1426 (56.1)
