LS U5010 - PTO Shaft Reference; PTO Safety Cover and Cap

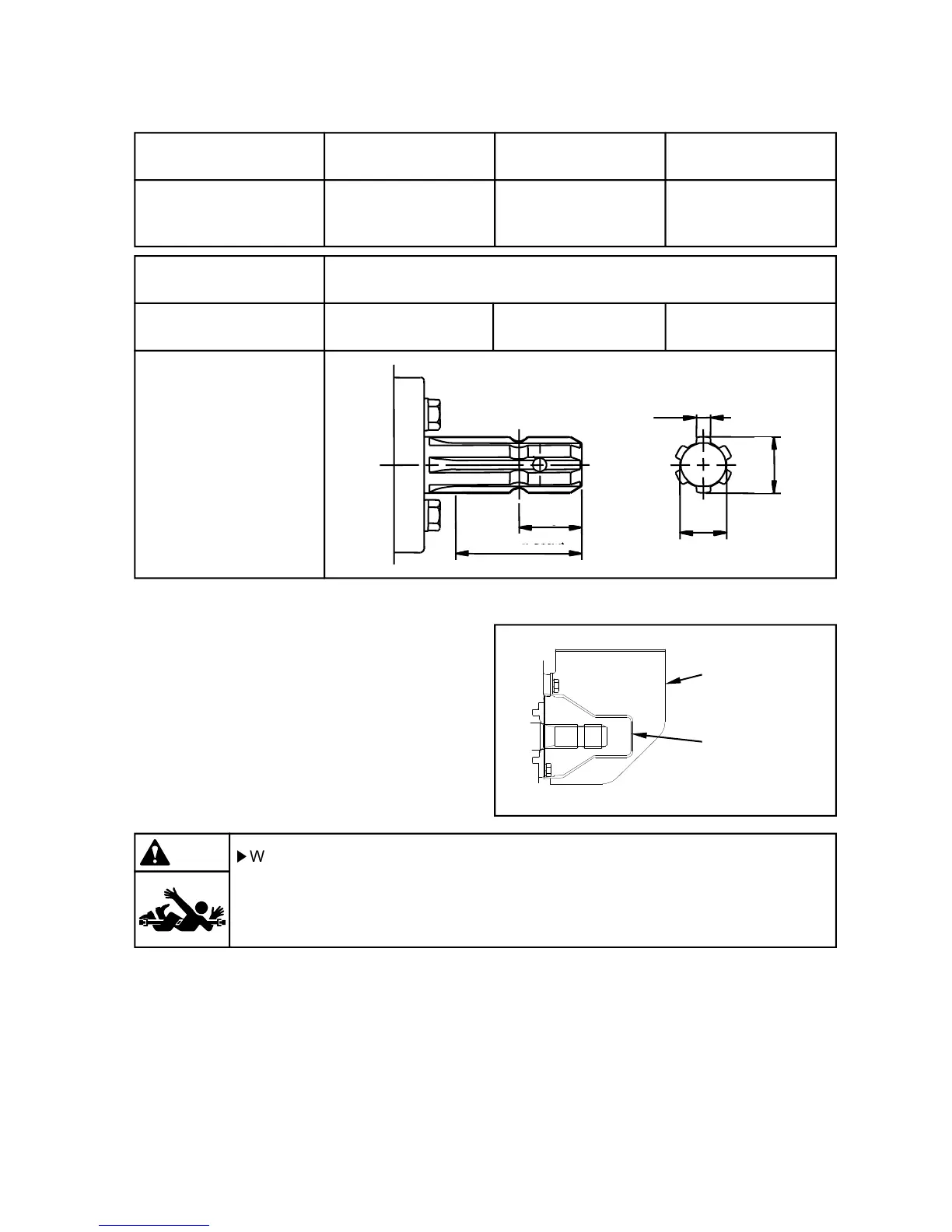

(4) Reference of PTO shaft
PTO speed selection
PTO / engine rpm
Revolution direction
PTO shaft ground level
(Unit : in)
1 2 3
540 / 2409 rpm 750 / 2375 rpm 1000 / 2381 rpm
Clockwise (direction from which looking at PTO shaft)
U5010 : 24.6 in
U5020 / U5020C:
26.3 in
U5030 / U5030C :
27.0 in
( U5020 / U5030 commonness)
(0.3 in)
(5) PTO safety cover and protection
cap
 Attach the PTO cover when using the universal
joint.
 When PTO is not used, apply grease and
insert the shaft protection cap.
PTO shaft
protection cap
PTO safety
cover
PTO shaft dimension
(Unit : inch)
(3.0 in)
(1.5 in)
(0.3 in)
(1.1 in)
(1 3/8 in)
4
4 4
4 - 10
Warning ▶ When contacting to the rotating shaft, it may cause a serious injury.
- Do not touch shaft which is rotating.
- Do not remove protection cover (safety cover).
- Avoid loose clothes that can easily be rolled up in the revolving shaft.
