MegaRAID SAS 9271-4i and SAS 9271-8i RAID Controllers Quick Installation Guide
June 2012
MegaRAID SAS 9271-4i and MegaRAID SAS 9271-8i RAID Controllers
4.4 Attaching the CVPM02 Module to the Clip on the Remote Mount Board
Follow these steps to attach the CVPM02 module to the clip on the remote mount board.
1. Place the remote mount board on a flat, clean, static-free surface.
2. Ground yourself, and make sure that the system is grounded.
3. Remove the CVPM02 module from the package.
4. Press the CVPM02 module into the clip on the remote mount board until the module clicks firmly into place, as
shown in the following figure.

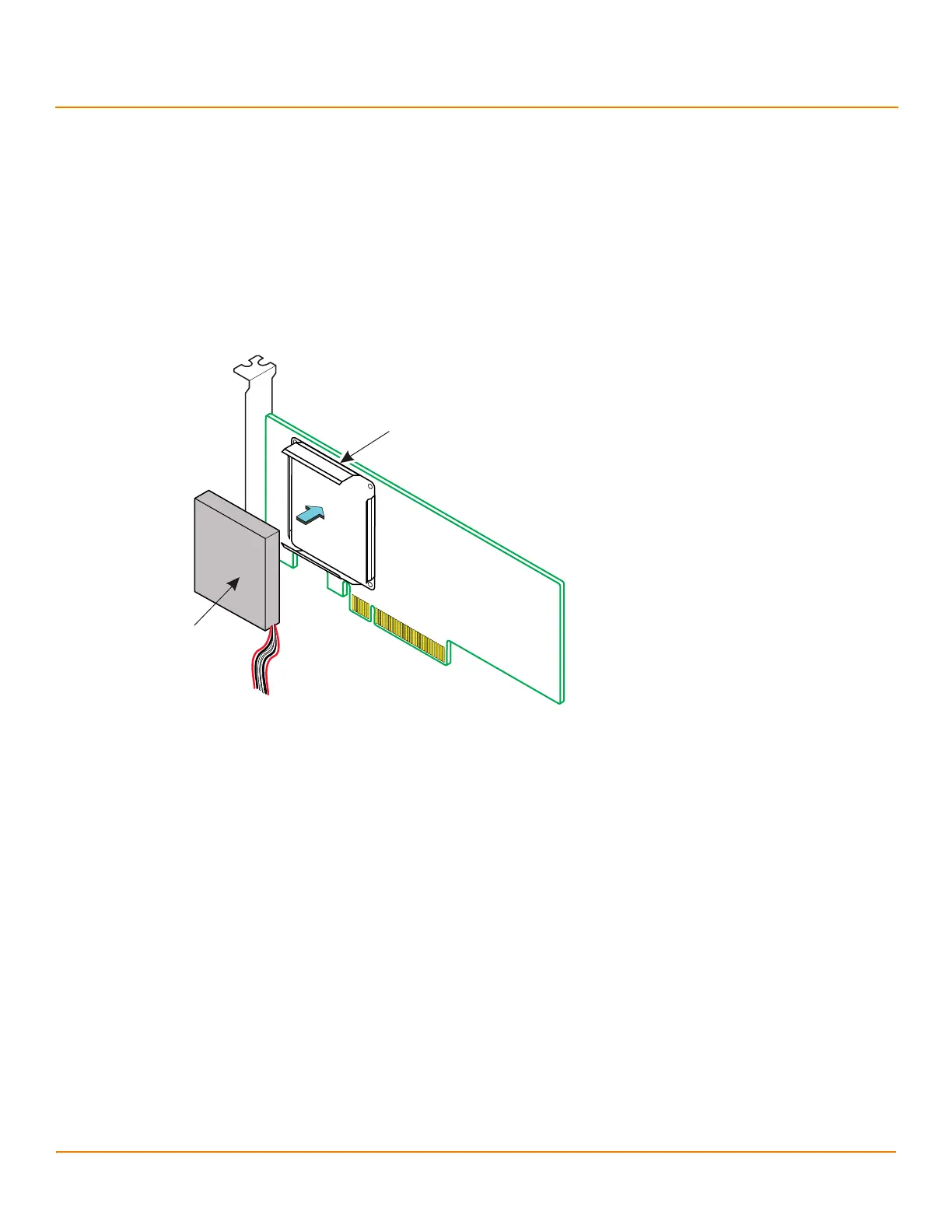

Figure 7 Attaching the CVPM02 Module to the Clip on the Remote Mount Board
4.5 Connecting the CVFM02 Module to the Remote CVPM02 Module
Follow these steps to connect the CVFM02 module on your MegaRAID SAS 9271 RAID controller by cable to the
remote CVPM02 module.
1. Place the controller on a flat, clean, static-free surface.
2. Ground yourself, and make sure that the system is grounded.
3. Remove the cable included in the RAID controller box.
4. Insert the smaller of the two 6-pin cable connectors on the cable into the 6-pin J2B1 cable connector on the
CVFM02 module, as shown in the following figure.
5. Insert the larger of the two 6-pin cable connectors on the other end of the cable into the 6-pin cable connector on
the remote CVPM02 module.
Align the cable connectors to make sure that they are connected correctly.
&DFKH9DXOW
3RZHU0RGXOH
&OLS
B
