MegaRAID SAS 9271-4i and SAS 9271-8i RAID Controllers Quick Installation Guide
June 2012
MegaRAID SAS 9271-4i and MegaRAID SAS 9271-8i RAID Controllers
Mode 2 – The LSIiBBU09 unit is mounted remotely on the system chassis and then connected by cable to the
RAID controller.
5.1 Top View and Bottom View of the LSIiBBU09 Unit
The following figure shows the top view and the bottom view of the LSIiBBU09 unit. The top view is the side that
you can see after you install the LSIiBBU09 unit on the system chassis or when the unit is installed on a remote
mount board.

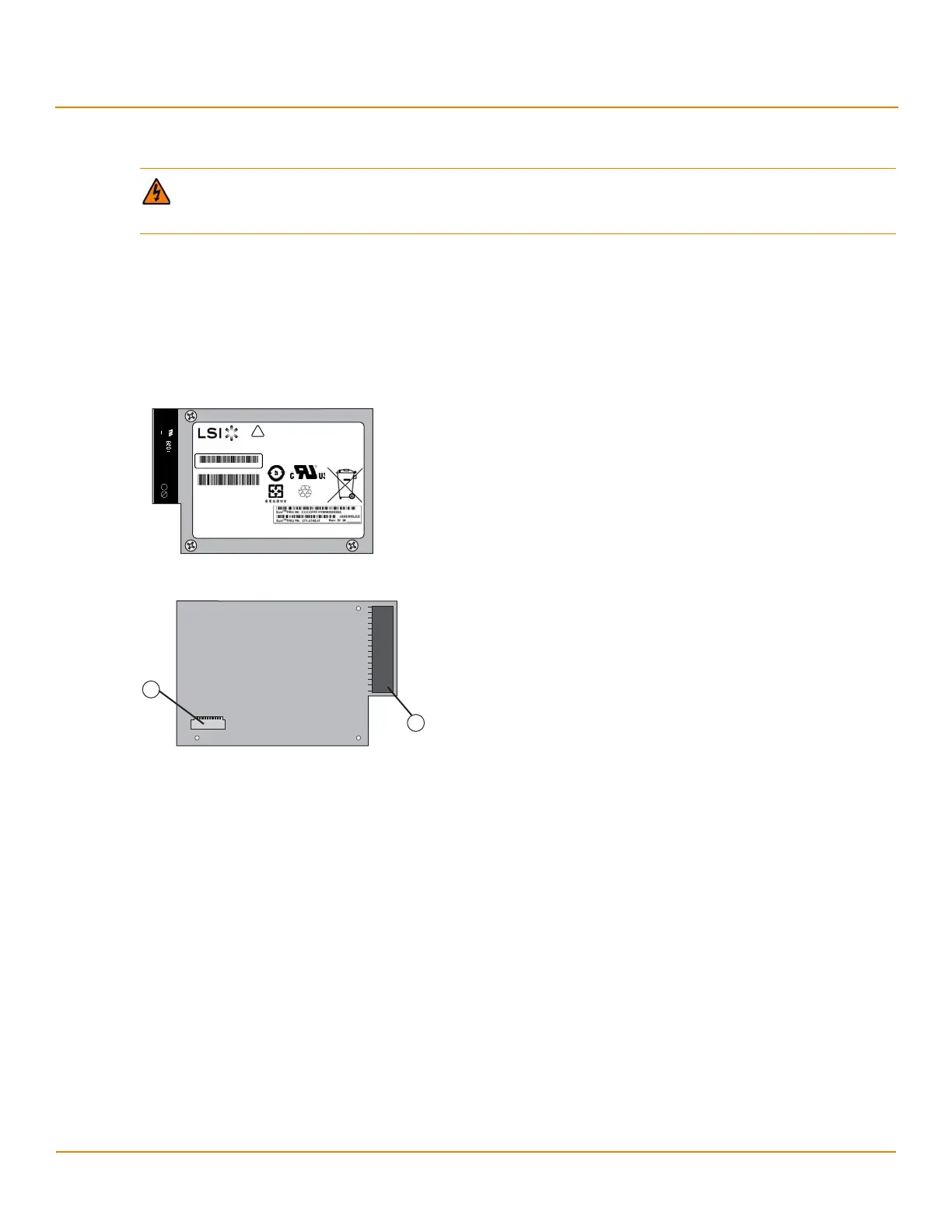

Figure 11 Top View and Bottom View of the LSIiBBU09 Unit
1. J1 Board-to-Board Connector
2. Remote Cable Connector
5.2 Attaching the LSIiBBU09 Unit Directly to the MegaRAID SAS 9271 RAID Controller
Perform the following tasks described in this section to attach the LSIiBBU09 unit directly to the MegaRAID SAS 9271
RAID controller.
1. Remove the RAID controller from the computer. See Removing the RAID Controller from the Computer on
page 18.
2. Attach the LSIiBBU09 unit directly to the RAID controller. See Attaching the LSIiBBU09 Unit to the RAID Controller
on page 18.
WARNING The battery used in this device might present a fire or chemical burn hazard if mistreated. Do
not disassemble, heat above 100 °C (212 °F) or incinerate. Dispose of used battery correctly. Keep away
from children.
LSI CORP. © 2010 ALL RIGHTS RESERVED
Pb e1
ASSEMBLED
IN CHINA
RoHS
AsRPCB
E248037
94V0
Li Ion
Model: BAT1S1P-A
BBU P/N: L4-25407-00
BBU S/N: SAYWWSSSSSss
Contains:
Sony US454261A8T Cell
Rechargeable Li-Polymer
Battery Pack
Rating:
3.7V; 1.59 Ah; 5.9Wh
Finished in China
WARNING: The battery used in this
device may present a risk of fire or
chemical burn if mistreated. DO NOT
disassemble, heat above 60C, crush or
puncture, short circuit external contacts,
or dispose of in fire or water.
MH29577
Li-ion
!
L3-25407-00A
Top View
Bottom View
85083-00
1
2
