MegaRAID SAS 9271-4i and SAS 9271-8i RAID Controllers Quick Installation Guide
June 2012
MegaRAID SAS 9271-4i and MegaRAID SAS 9271-8i RAID Controllers
5.3.1 Removing the RAID Controller from the Computer
Follow these steps to remove the RAID controller from the computer.
1. Turn off the power, and unplug the power cords.
2. Ground yourself, and make sure that the system is grounded.
3. Remove the cover from the computer, according to the instructions in the system user’s manual, to allow access
to the controller.
4. Unplug all cables from the controller, remove the screw that attaches the bracket to the computer chassis, and
carefully remove the controller from the slot.
5. Place the controller on a flat, clean, static-free surface, and continue with the next procedure.
5.3.2 Connecting the Cable Between the RAID Controller and the Remote LSIiBBU09 Unit
Follow these steps to connect the cable between the RAID controller and the LSIiBBU09 unit.
1. Place the controller on a flat, clean, static-free surface.
2. Ground yourself, and make sure that the system is grounded.
3. Remove the cable included in the Remote Battery Kit (sold separately).
4. Insert one end of the cable into the 20-pin cable connector on the LSIiBBU09 unit and the other end of the cable
into the 20-pin J3L1 cable connector on the back of the RAID controller, as shown in the following figure.
5. Align the black triangles on the connectors to make sure that the connectors are connected correctly.

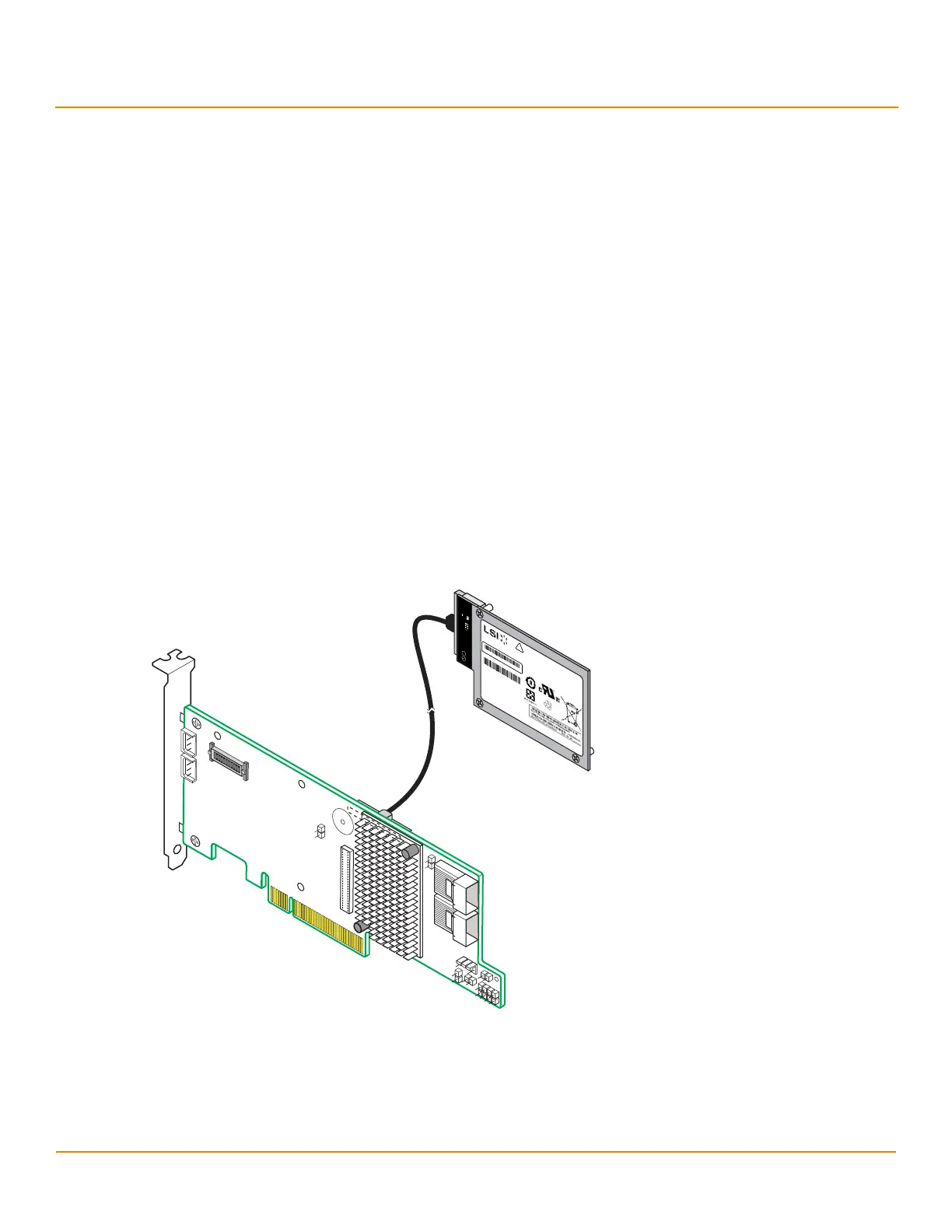

Figure 14 Connecting the Remote LSIiBBU09 Unit by Cable to the RAID Controller
