(2) Example of Use of the Instruction

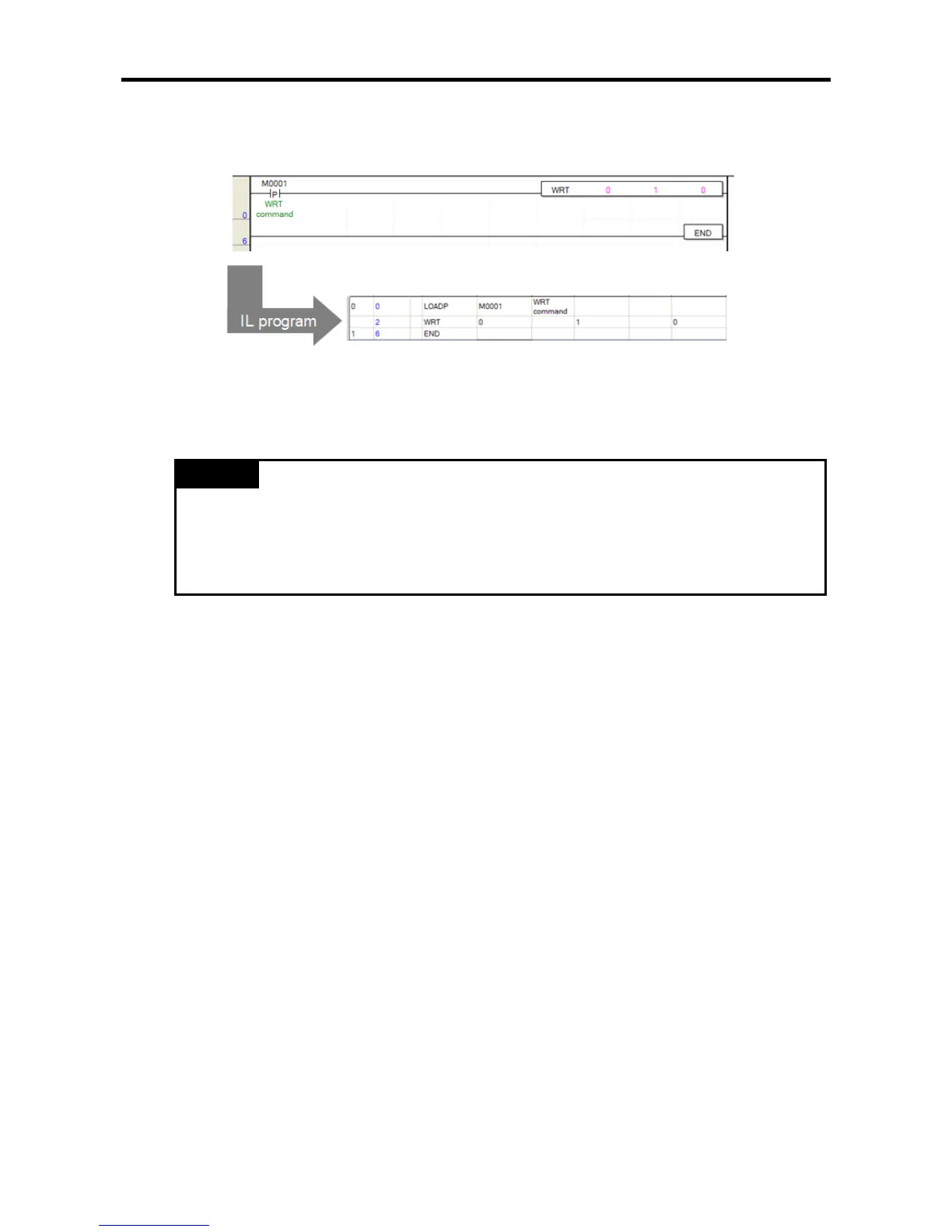

(a) Example of the Program
(b) Operation of the Program
• If there is the rising edge of M0001 used as the parameter save instruction signal, the operation
data of area K of positioning axis X and axis Y are permanently preserved as the positioning
parameter of XGB built-in flash memory.
Remark
• If WRT instruction is executed, the previously saved positioning parameter is deleted and the
parameter is changed to the operation data of the current area K.
• Be careful that if WRT instruction is executed, the scan time of the scan where the instruction
has been executed because the previous positioning parameter of the flash memory is deleted
and the operation data of area K is written.
