LSLIDAR CH128X1 User Manual

3

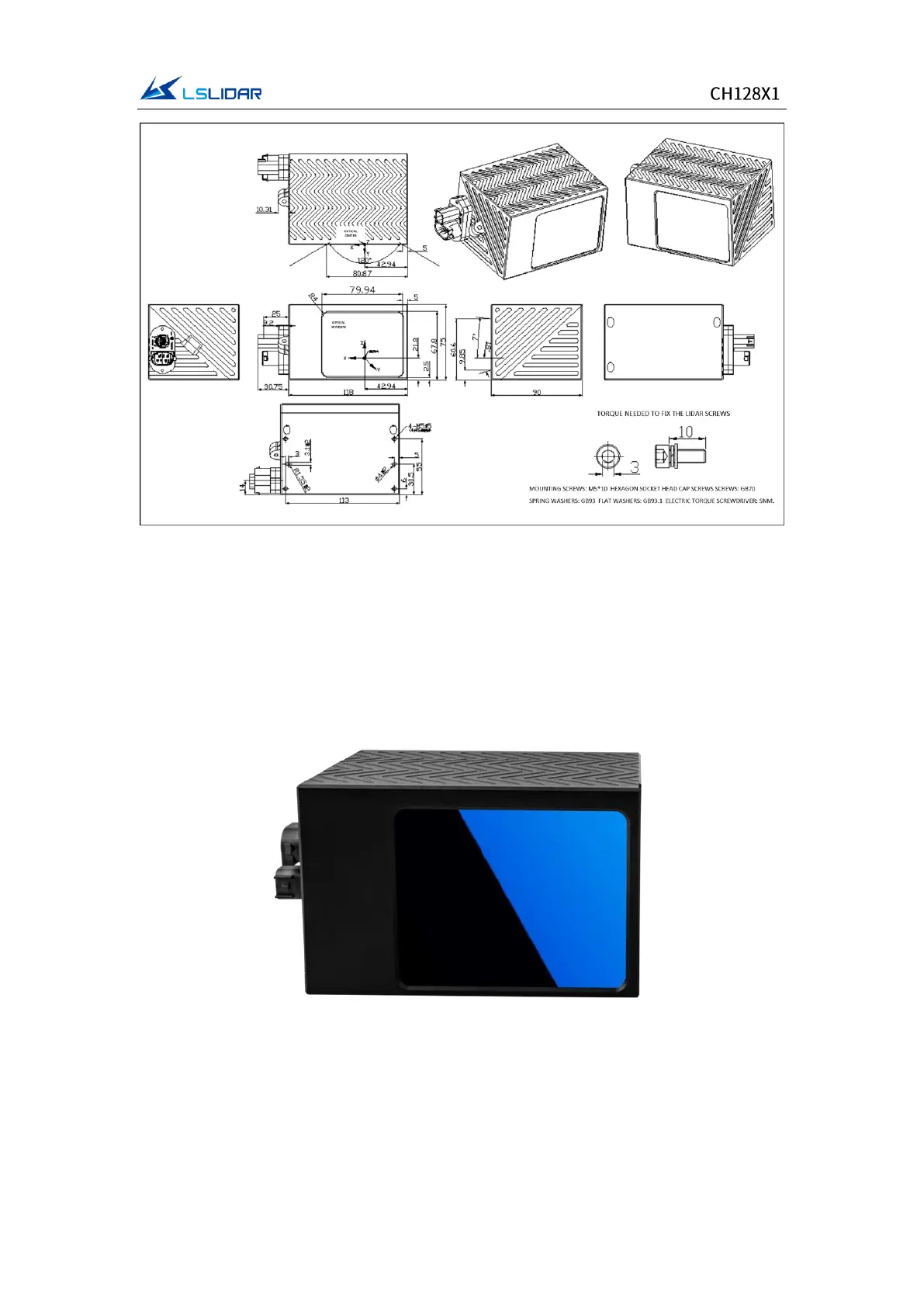

Figure 1.2 CH128X1 Lidar Dimension
The CH128X1 Lidar utilizes mirror rotation and special optical design to scan
120° horizontally, with a dense light distribution of 128 lines. Figure 1.3 shows
the appearance of the CH128X1 Lidar while Figure 1.4 shows the optical center
position, which is also the coordinate origin of the host computer display
software.
Figure 1.3 External View of CH128X1

LSLIDAR CH128X1 Specifications

General

Brand	LSLIDAR
Model	CH128X1
Category	Measuring Instruments
Language	English
