How to Install A Super Panel
1. Trim the power cord
Turn off the circuit breaker and remove any concrete or corrosion that are inside
the wall box. Trim the power cord in the wall box to 10cm in length approximately.

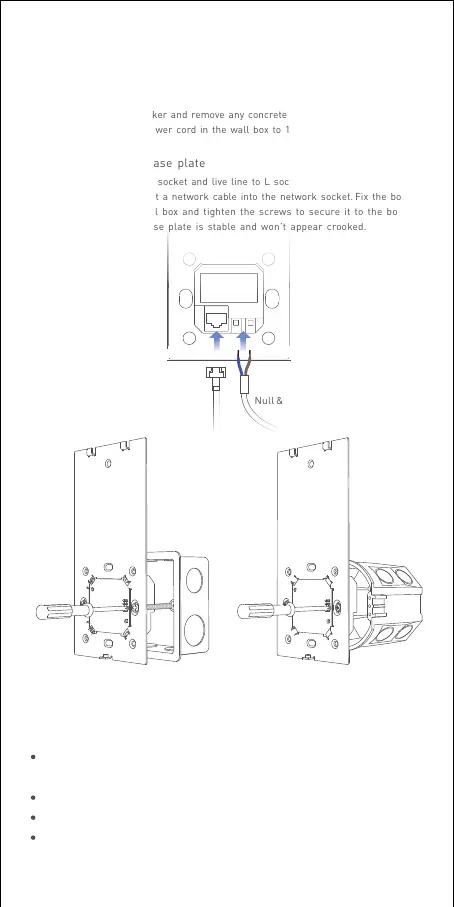

2. Fix the bottom of base plate
Attach the null line to N socket and live line to L socket ,as shown in the diagram
below. If necessary, insert a network cable into the network socket. Fix the bottom
of base plate to the wall box and tighten the screws to secure it to the box.
Note: Make sure the base plate is stable and won’t appear crooked.
Install the 86 type junction box
with KM4 screws
Install the European standard
junction box with PWA2 screws
N L
Null & Live line
Network cable
Attentions
Please use in a cool and dry environment.
Please keep away from heat.
Please do not open, change or repair , otherwise the warranty is not
allowed.
6
metal objects against signal interference.
The installation location should avoid being close to large-area
To Next Page
