Data Logging

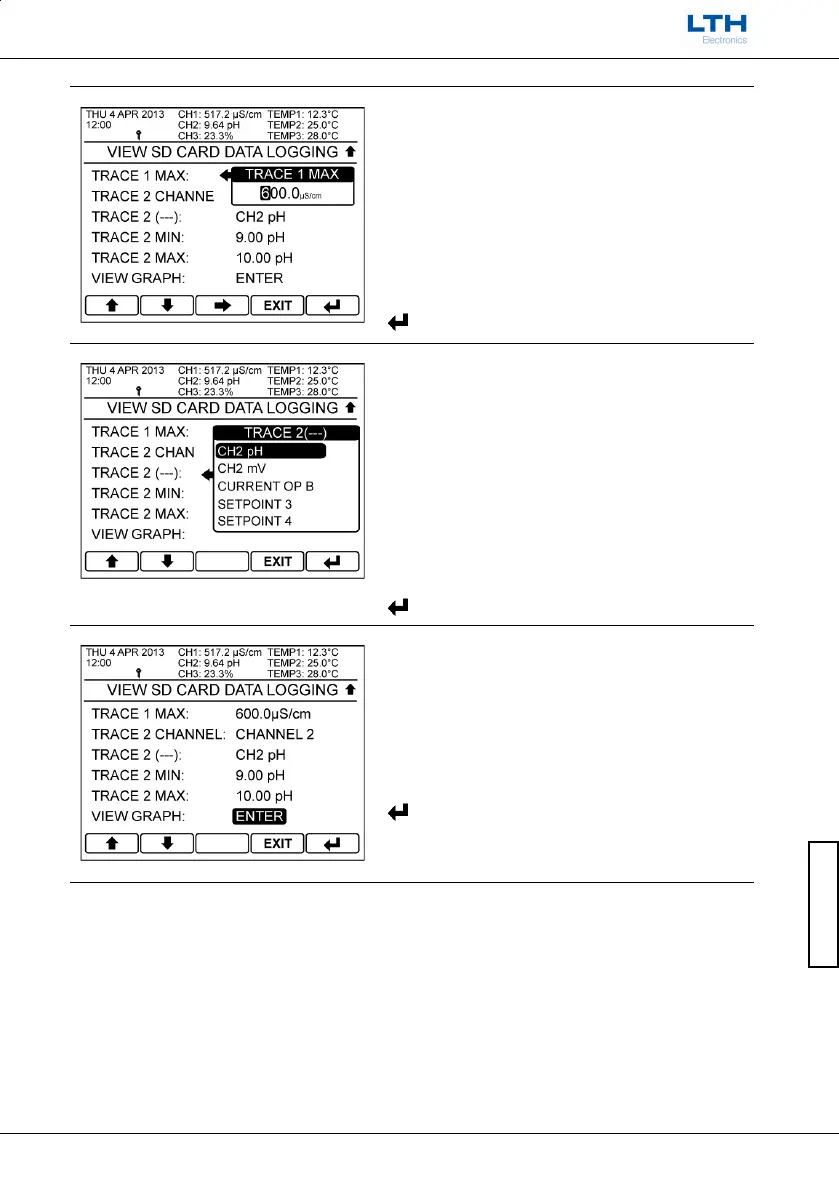

Trace Max
Enter the Trace’s maximum displayed value. Adjust in
conjunction with the minimum displayed value to
increase the measurements displayed resolution.
/
– Increase / Decrease Digit

– Select Next Digit
EXIT
– Cancel
– Save Value
Trace 2 (---)
Select which measurement Trace 2 (right hand side
axis) is to be associated with. The options shown
depend on the configuration of the instrument. Then
configure trace 2’s min and max as before with trace
1.
/
– Select Option
EXIT
– Cancel
– Save Selection
View Graph
View the configured graph.

/

– Select Option
EXIT
– Cancel
– Enter Option
