Installation
- 14 -
MXD73 Installation Guide
Installation

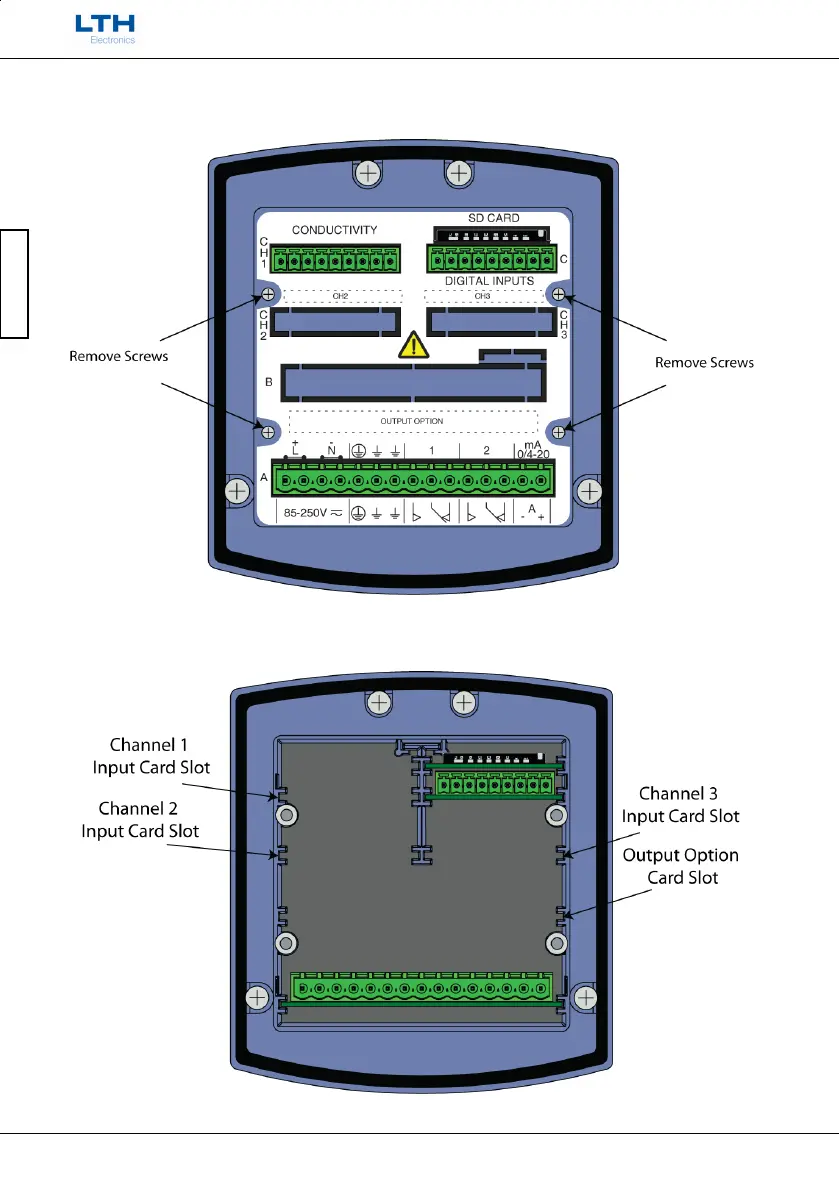

To install the new card into the instrument, first remove all existing connectors from the
rear of the instrument. Then remove the four screws shown on the following diagram.
Remove the rear cover and the instrument should look like the next figure, note depending
on the configuration of the instrument the add-in card slots may already be populated.
