Installation
MXD73 Installation Guide
- 15 -
Installation
The add-in cards are inserted into the instrument with the edge of the card positioned
down the middle of guide, and with the green connector towards the rear of the

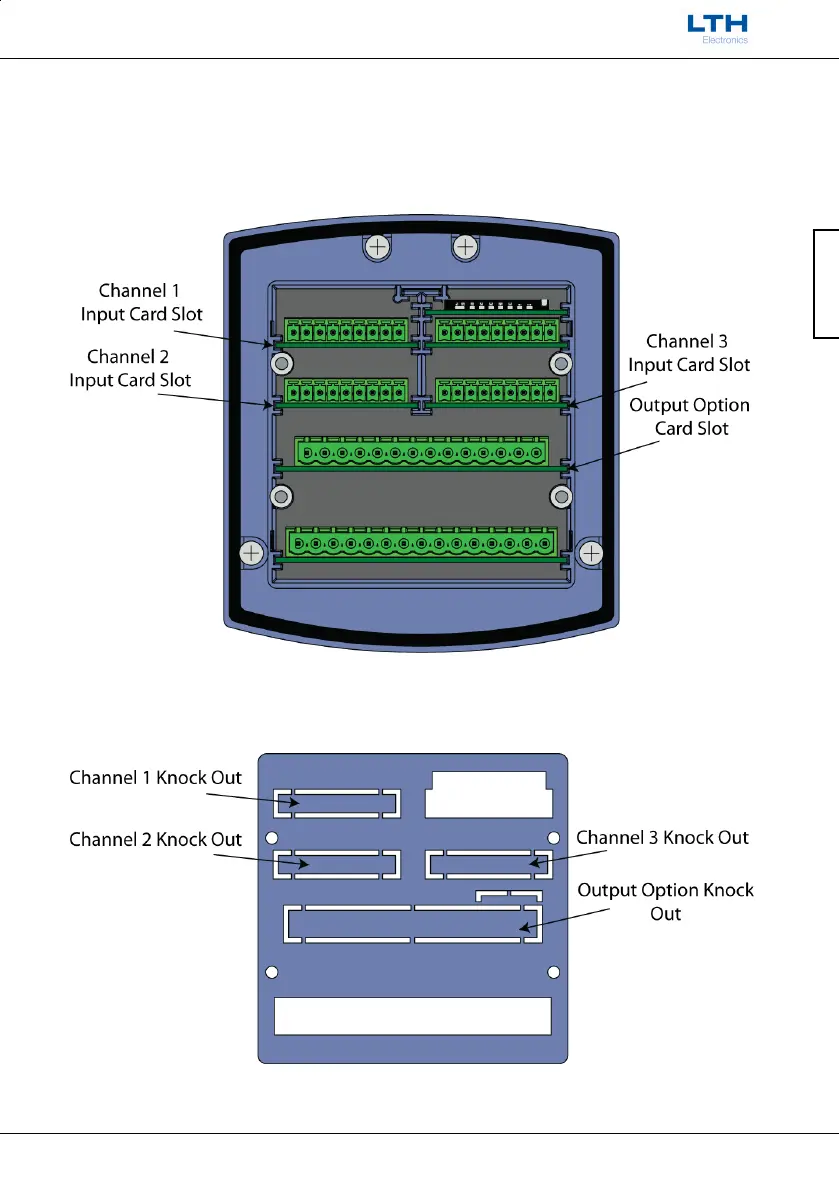

instrument case. Insert the card all the way in until the far connector is fully home. The
following figure demonstrates the instrument with all three channel slots and the output
option slot occupied.
Next remove the required knock-outs from the rear cover
.
