LTH Electronics MXD70 Series User Manual

Channel Calibration
MXD70 Dissolved Oxygen
Setup and Operating Guide
- 31 -
Channel Calibration
Pressure Calibration

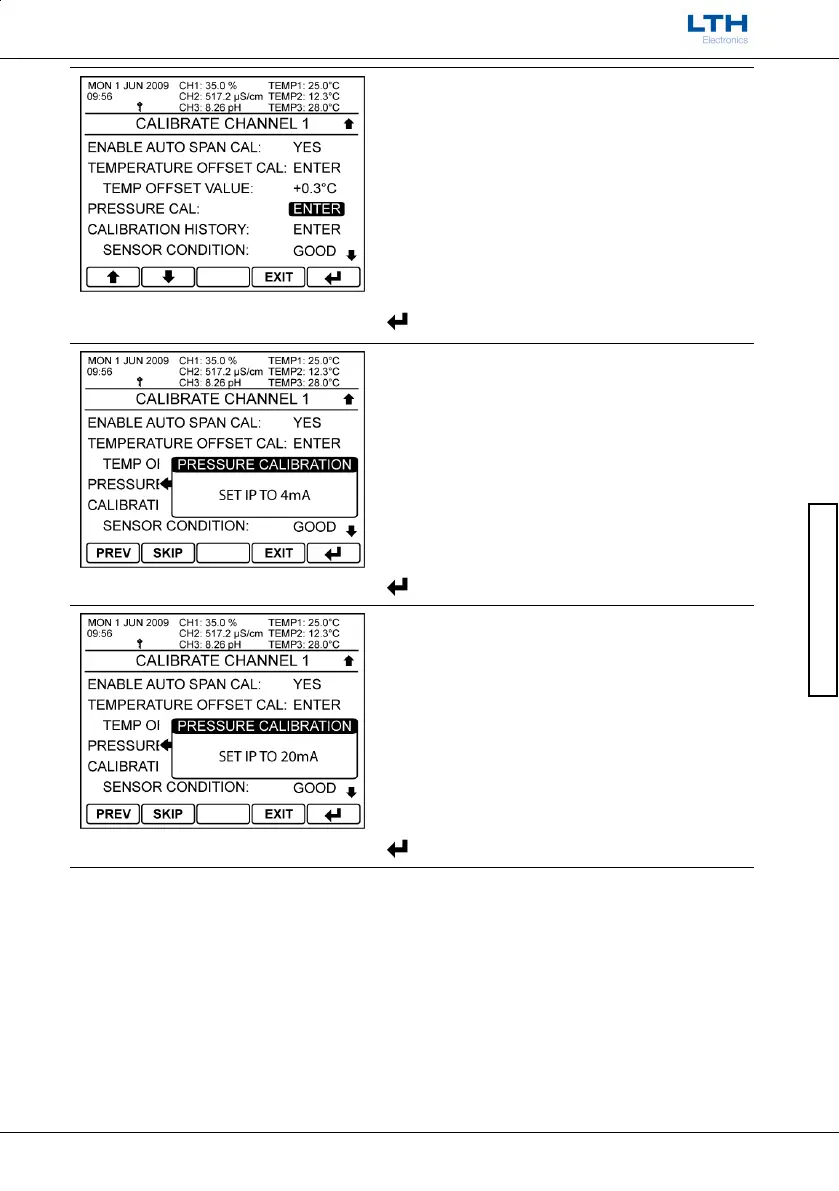

To start the Pressure Sensor’s calibration select the
“Pressure Cal” item from the desired channel’s
calibration menu and press enter.
Menu only available when Pressure Compensation is
set to “Auto” in the channel’s setup menu.
/ – Select Option
EXIT
– Return to Select Calibration Channel
– Enter Pressure Calibration
Set Input to 4mA
Set the pressure transmitter’s output to 4mA and
then press enter to start the calibration. Once
completed the display will move on to the 20mA
calibration.
PREV
– Go to Previous Calibration Point
SKIP
– Skip to Next Calibration Point
EXIT
– Exit Calibration Without Saving
– Initiate Calibration
Set Input to 20mA
Set the pressure transmitter’s output to 20mA and
then press enter to start the calibration. Once
completed press enter when prompted to return to
the main calibration menu.
PREV
– Go to Previous Calibration Point
SKIP
– Skip to Next Calibration Point
EXIT
– Exit Calibration Without Saving
– Initiate Calibration
