Installation
MXD70 Auxiliary mA Input
Setup and Operating Guide
- 11 -
Installation

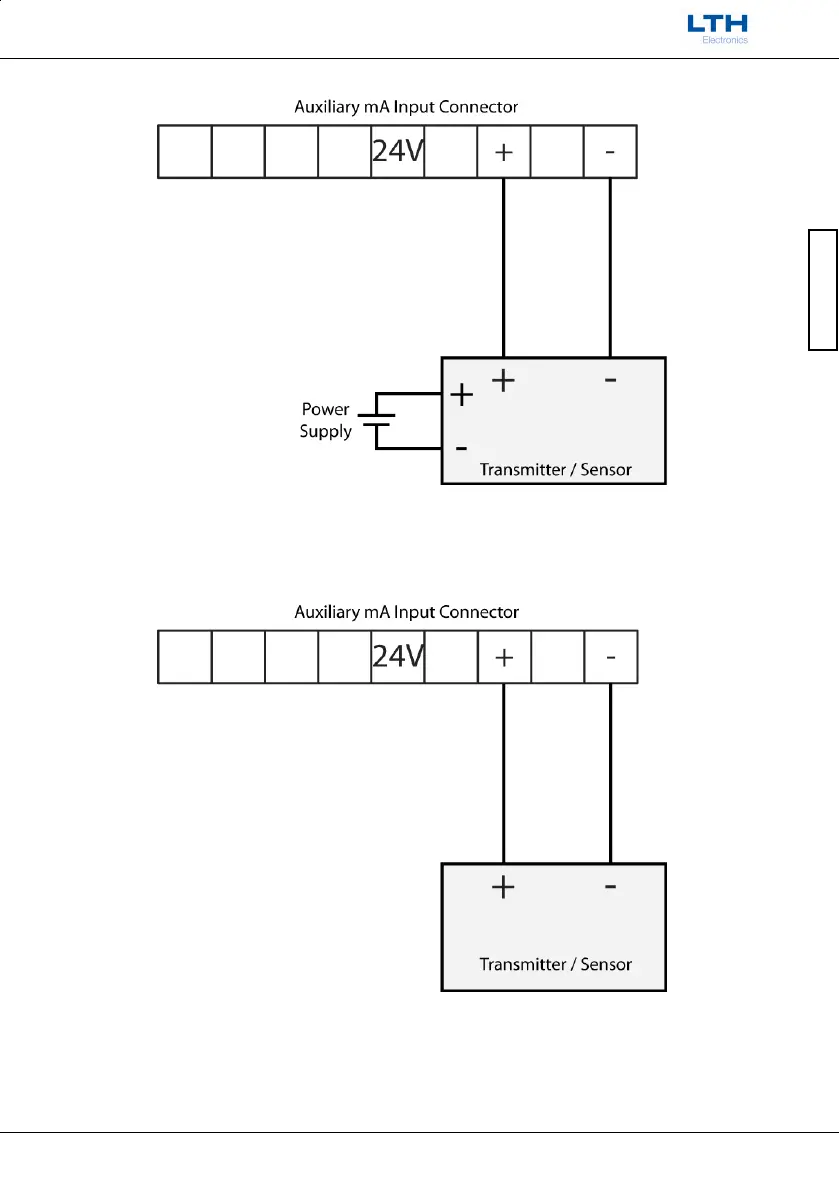

Self Powered Transmitter Loop Connection Details
Loop Mode Set to “mA Input”
Internally Powered Loop Connection Details
Loop Mode Set to “24V Loop”
(MXD70 powers the loop with 24V)
