Installation
- 12 -
MXD70 Auxiliary mA Input
Setup and Operating Guide
Installation

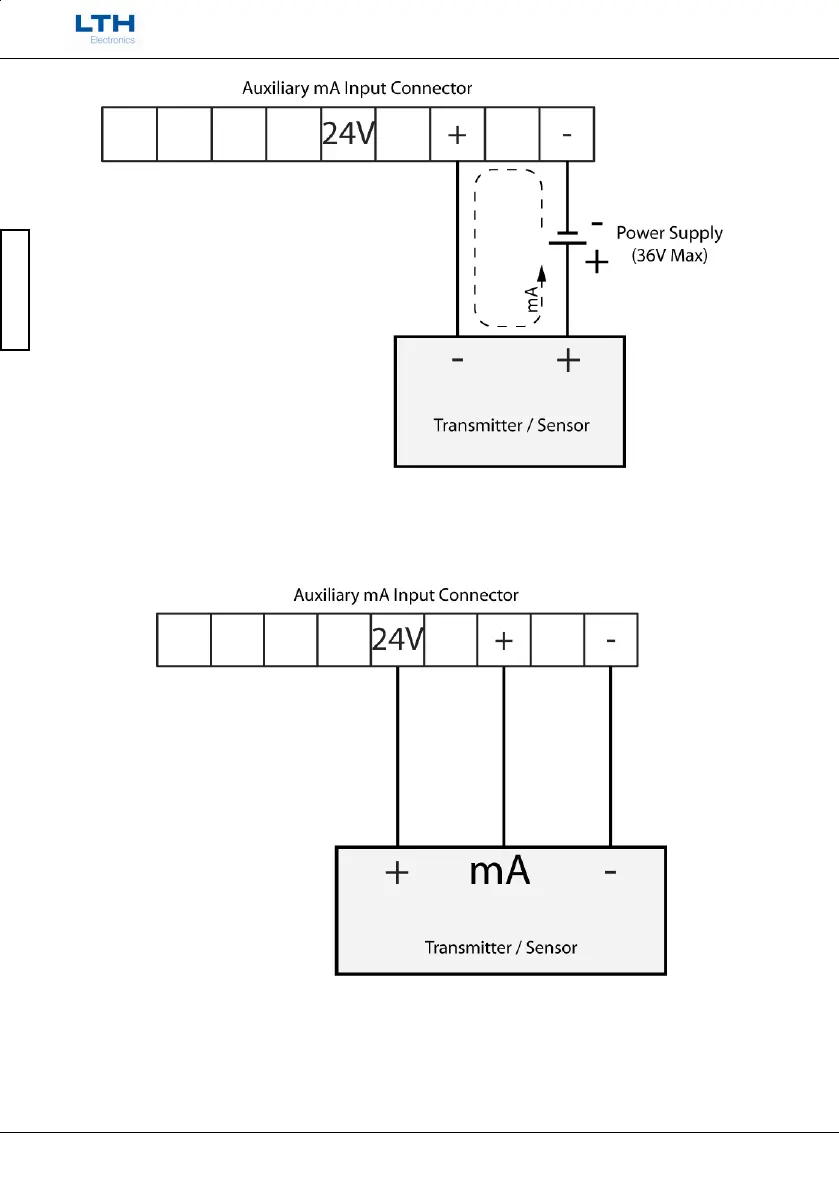

Externally Powered Loop Connection Details
Loop Mode Set to “mA Input”
3 Wire Transmitter Loop Connection Details
(NB. The 24V Can Supply 30mA Max)
Loop Mode Set to “mA Input”
