Channel Setup
- 16 -
MXD70 Suspended Solids / Turbidity
Setup and Operating Guide
Channel Setup

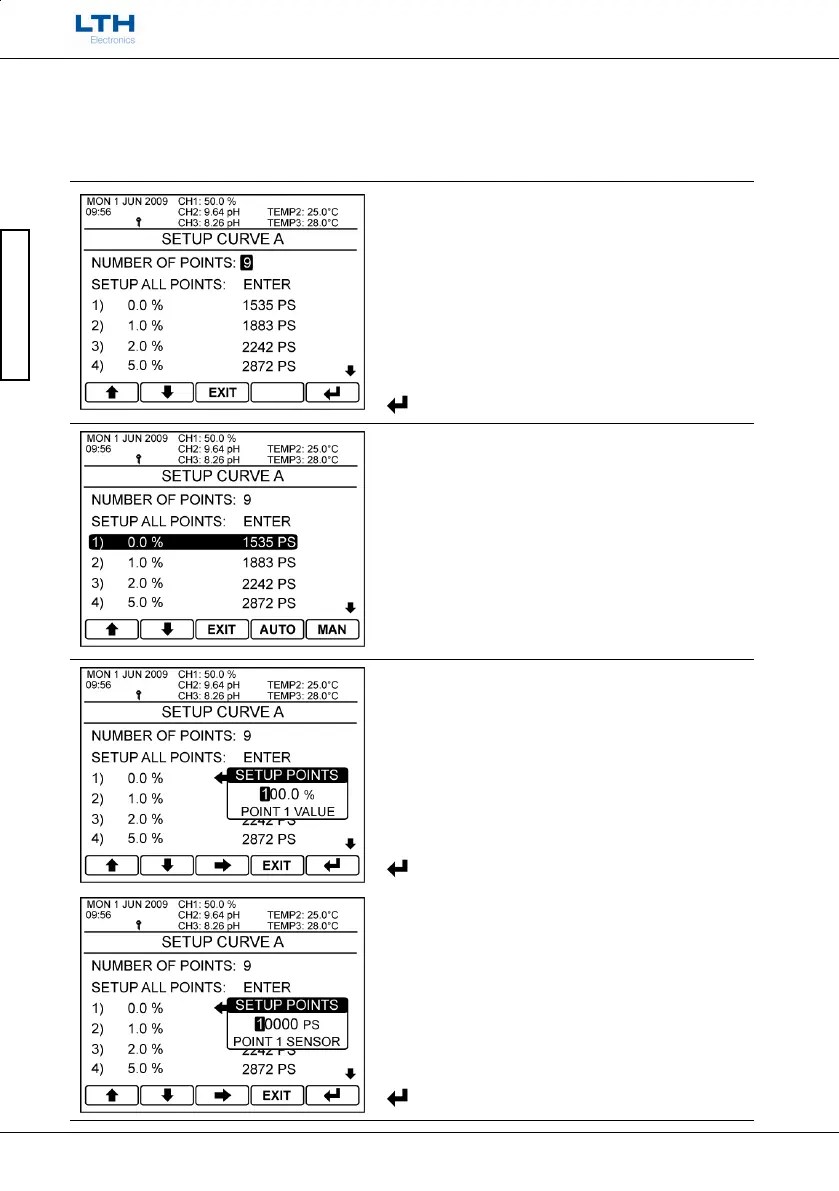

Manual Curve Entry
Manual Curve Entry also allows the user to set the number of points used in the curve. Then for each
point the user can define the engineering value and then equate it to a known probe reading
previously obtained. Note that the points can be entered in any order as they are sorted into ascending
probe signal values from within the software.
Number Of Points
Set the number of points used to define the
linearisation curve. The instrument will ignore
any points whose equivalent probe signal value
is set to zero. The curve can use between 2 – 10
points.
/ – Select Option
EXIT
– Return to Channel Setup
– Enter Option
Manually Setup Individual Curve Point
If the user requires to manually setup an individual
point in the curve, they can select it from the
available list and press the Man button.
/ – Select point
EXIT
– Return to Channel Setup
AUTO
– Begin Auto Routine For This Point
MAN
– Begin Manual Routine For This Point
Enter Curve Point Data
Enter the equivalent engineering value for this point.
Units and scale depend upon the settings in the
channel setup menu.
/ – Increase / Decrease Digit

– Select Next Digit
EXIT
– Exit Setup Routine
– Save Value
After entering the engineering value the instrument
will automatically ask for the equivalent probe
reading to be manually entered.
/ – Increase / Decrease Digit

– Select Next Digit
EXIT
– Exit Setup Routine
– Save Value
