Lucent Technologies Galaxy Power System 4812

Issue 5 June 2000 DC Distribution Panels 7 - 5

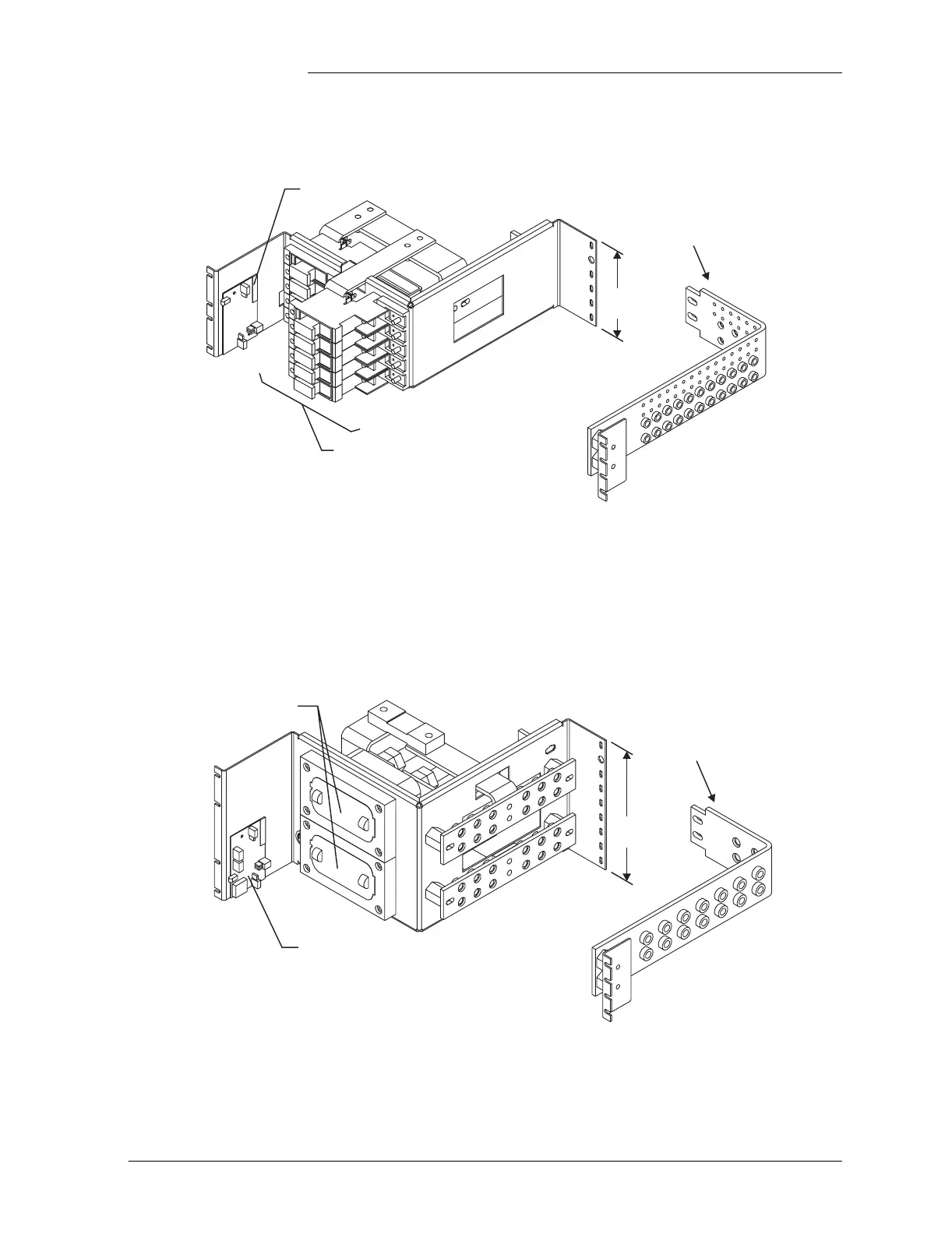

Figure 7-7: H569-436 G52 (ED83143-30 G53)

DC Distribution Panel

Alarm/Terminal Card

Connects to

Charge Return Bus

Ten Medium U.S.

Fuse Holders

6" REF

(152mm)

Figure 7-8: H569-436 G53 (ED83143-30 G51/52)

DC Distribution Panel

Connects to

Charge Return Bus

Two U.S. Large

Fuse Holders

Alarm/Terminal Card

9" REF

(229mm)
