Lucent Technologies Galaxy Power System 4812

7 - 8 DC Distribution Panels Issue 5 June 2000

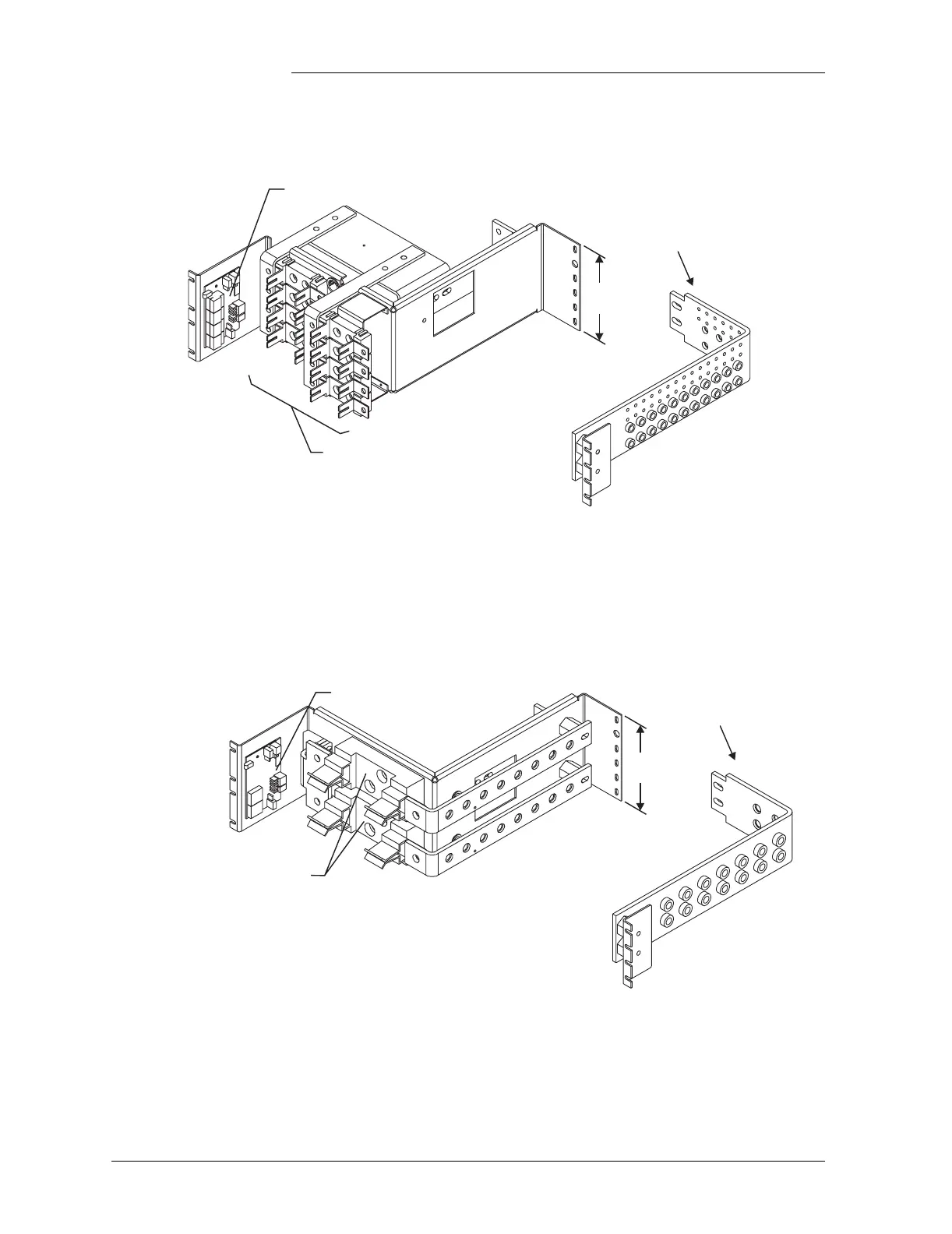

Figure 7-13: H569-436 G67 (ED83143-30 G22)

DC Distribution Panel

Alarm/Terminal Card

Eight NH00 Fuse Holders

Connects to

Charge Return Bus

6" REF

(152mm)

Figure 7-14: H569-436 G68 (ED83143-30 G21)

DC Distribution Panel

Alarm/Terminal Card

Connects to

Charge Return Bus

Two NH2 Fuse Holders

6" REF

(152mm)
