 Give the device a name of your choice. You will be able to change it later at any time.
 Select „ Ventus / Ventus-X / V200A-UMB“ in the device selection list
 Enter the device address (device ID) into the field next to the device selection list
This is the address over which the UMB-ConfigTool.Net will later communicate with the
device.
 Save your entries. You will get back to the overview of your workspace.
 Select the sensor that you have just set up.
Note: The default address on delivery is 1. For the first commissioning therefore device address
1 has to be selected. If the device address is changed in the configuration settings, the address
that is saved in the UMB-ConfigTool.Net has to be changed accordingly.
Note: If several Ventus are used in one UMB network, each one must have its unique ID. It
makes sense to start with 1 and count upwards.
12.2.2 Device settings
All Ventus parameters are shown in the device settings. Unchangeable settings have a grey
background, see Figure 10.

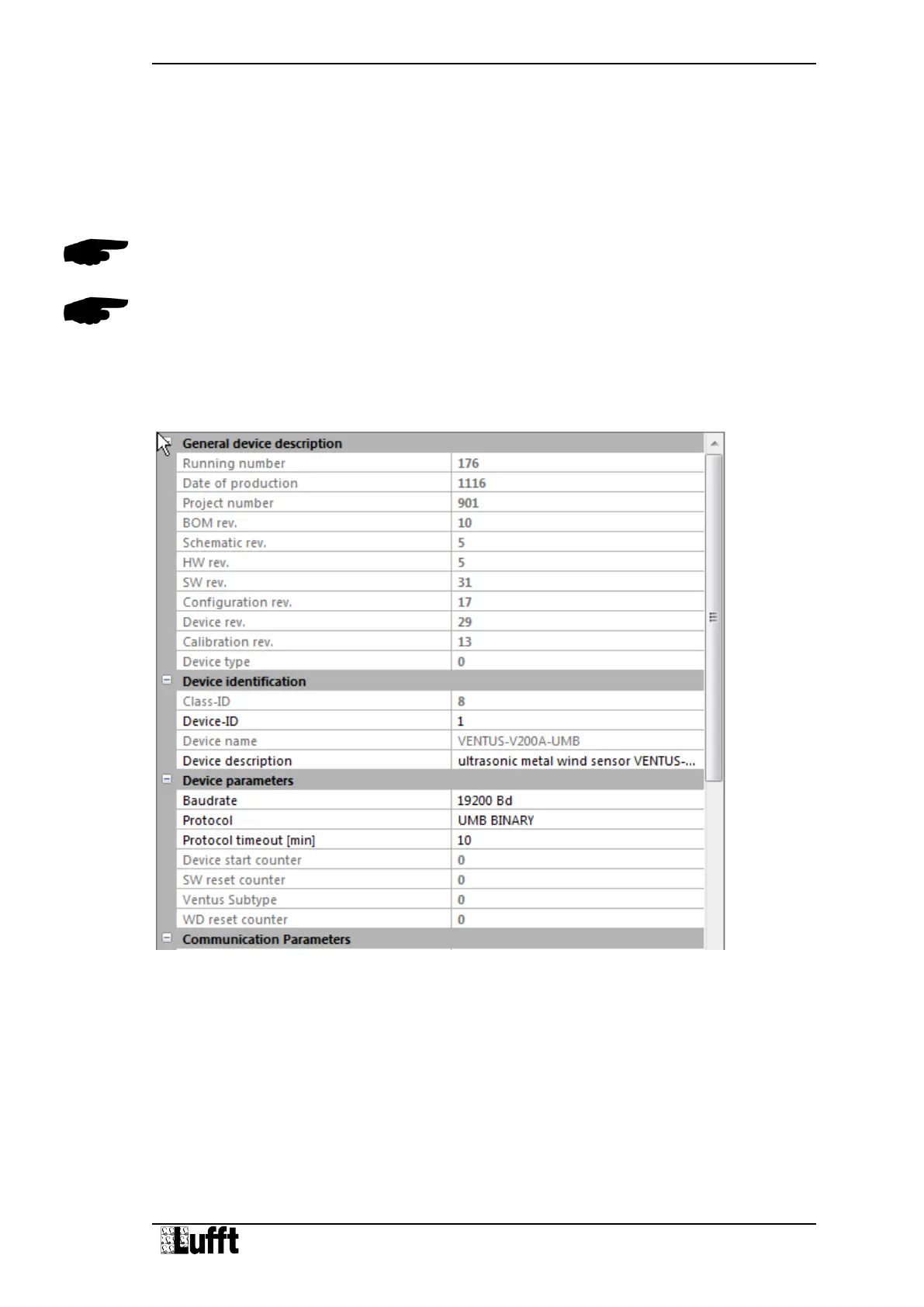

Figure 10: Device settings
12.2.3 Device identification
Device ID: Device ID
default setting 1; to futher devices assigne IDs in ascending order
Device description: For identifying the devices a description like the location can be
entered
12.2.4 Device parameters
Baudrate: Transfer rate of the RS485 interface
default setting 19200 Baud; DO NOT change if used with ISOCON-
UMB.
