Lumantek WEIVER 2.0 - Control Configuration

2.0 Player
/ Operations Manual
11

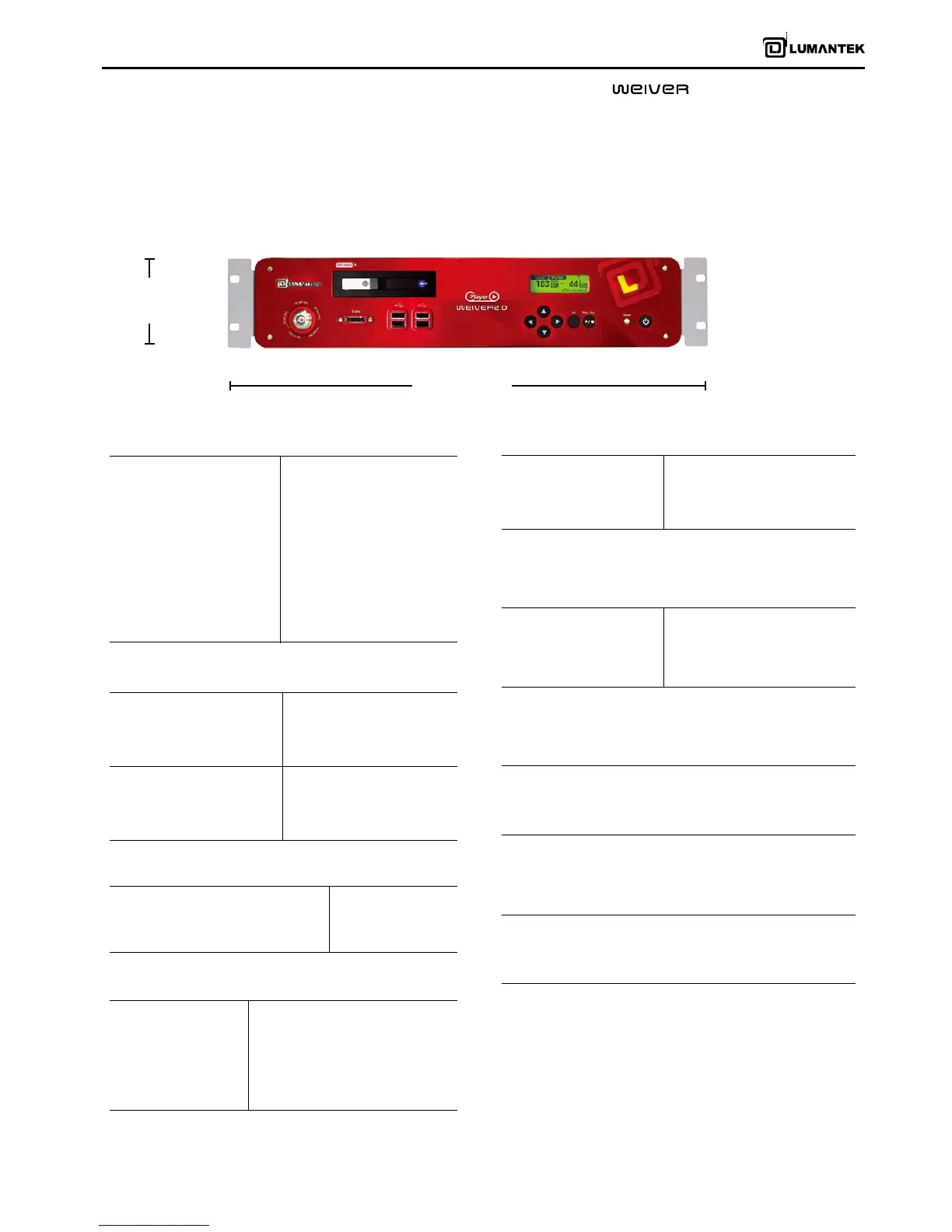

1.7 / System Specication
Power
Mechanical
Input power
Lowest Power Consumption
70 Watt
Dimensions
Weight
(W)478mm x (H)88mm x (D)462mm
5.5 kg (Approx.)
100-240V ~ 3-1.5A, 50-60Hz
478 mm
88 mm
Frequency
Frequency band
Real time bandwidth
Frequency resolution
Freq. Stability vs. Temp.
Daily Aging
Aging (PER year)
0.1 to 2700 MHz
56MHz max. (Arbitrary
variable BW, 1Hz step)
1Hz min.
Warm-up time 30 minutes (typ.)
±20 ppb max.
±1 ppb max.
±50 ppb max.
Spectral Purity
Phase Noise@1 KHz oset
Phase Noise@10 KHz oset
RF Output Characteristics
Gain range
Amplitude resolution
Amplitude accuracy
Power
-30 ~ +30dB (Input Level Basis)
0.1dB step (Min.)
±1dB
+3 dBm max.(48 to 2700 MHz)
+10 dBm max.(0.1 to 48 MHz)
Environment
Operating temperature
Relative humidity
Storage temperature
0 to +50 ϸ
90%
-20 to +70 ϸ
RF Output
RF output port
Max. DC input
Max. reverse RF power
50ohm, N type female, DC-cpl
±25 VDC max.
1 W (Max.)
≤ -100 dBc/Hz (30 MHz)
≤ -95 dBc/Hz (1 GHz)
≤ -90 dBc/Hz (2.7 GHz)
≤ -105 dBc/Hz (30 MHz)
≤ -100 dBc/Hz (1 GHz)
≤ -95 dBc/Hz (2.7 GHz)
Spurious Responses
2nd Harmonic
3rd Harmonic
≤ -50dBc
≤ -60dBc
other ≤ -60dBc
