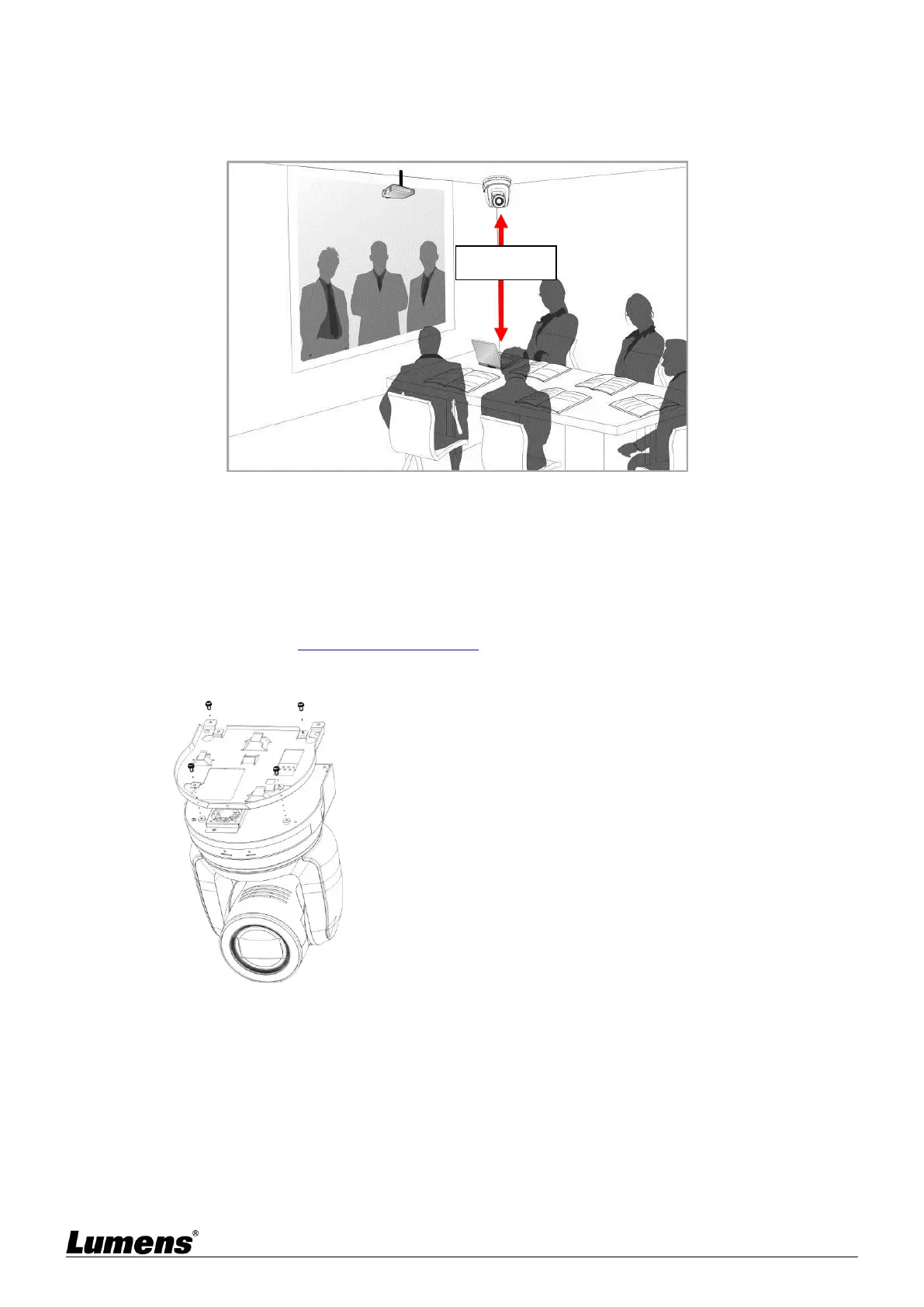

3.4.2.3 Precautions for installation
Before installation, please confirm the orientation of the machine relative to the object to be captured
It is recommended that the machine should be set at a distance of more than 1.5 meter away from the object to
be captured. Please adjust for a best distance according to the magnification of the lens
The machine (including metal plates) is weighed at about 2.5 kg. If it is to be installed on the ceiling, please use
the hanger that has obtained UL security approval to prevent the machine from falling down
Please check whether the camera is installed securely on a regular basis
3.4.2.4 Installation steps
1. Please adjust resolution on DIP switch at first
<Remark> Please refer to Chapter 6 DIP Switch Setting for the relevant descriptions on DIP switch
2. Fix the metal plate A on the machine base with 4 M3 silver screws
3. Lock the metal plate B on ceiling mounted hanger
<Note> (1) Please use the hanger that has obtained UL security approval
(2) Please reserve the hole for the connecting wires of the camera
4. Combine the metal plate A and the metal plate B
(1) Push the metal plate A up to the ceiling and then to the right to latch the metal plate B
(2) And then secure with 2 M3 silver screws and 1 M3 black screw
