3.4.2.5 How to remove
1. Remove the connecting wires from the camera

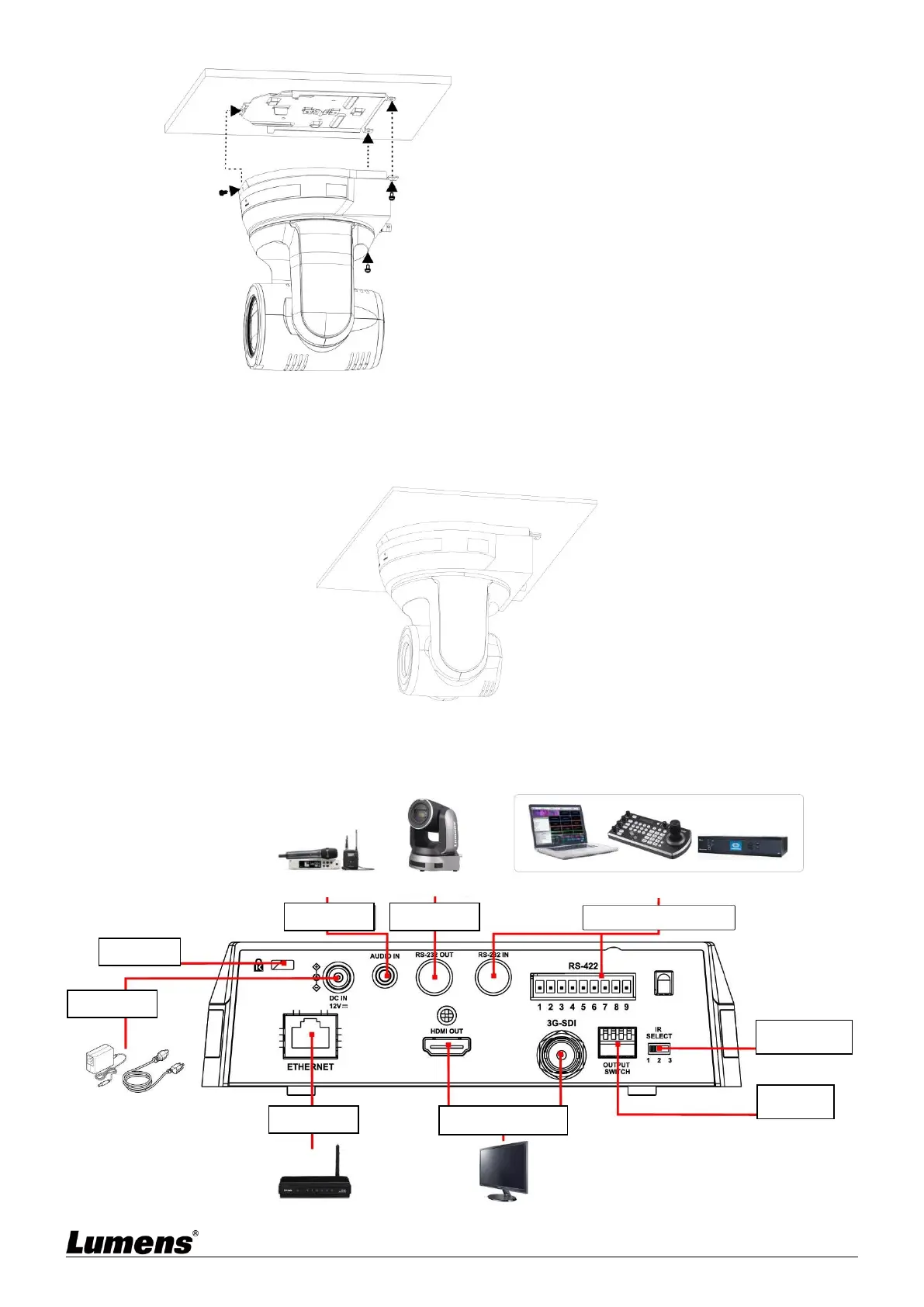

2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push
to the left to remove the machine
3. Then remove the screws on the hanger and the machine
3.4.3 Connecting devices
black screw
Anti-theft lock
slot
Audio In
RS-232 output
RS-232/RS-422 input
Computer / Control keyboard / Environment control equipment
Camera (serial connection)
Microphone
Power Supply
LAN port
HDMI/3G-SDI Output
Remote Control
Settings
Resolution
Settings
Router / Hub
Monitor
