English -22
6
AF/MF
Switch AF/MF
7
Camera Setting
Please refer to 5.2.2.1 Camera Setting
8
Enlarge the preview
window
Zooming in/out the preview image

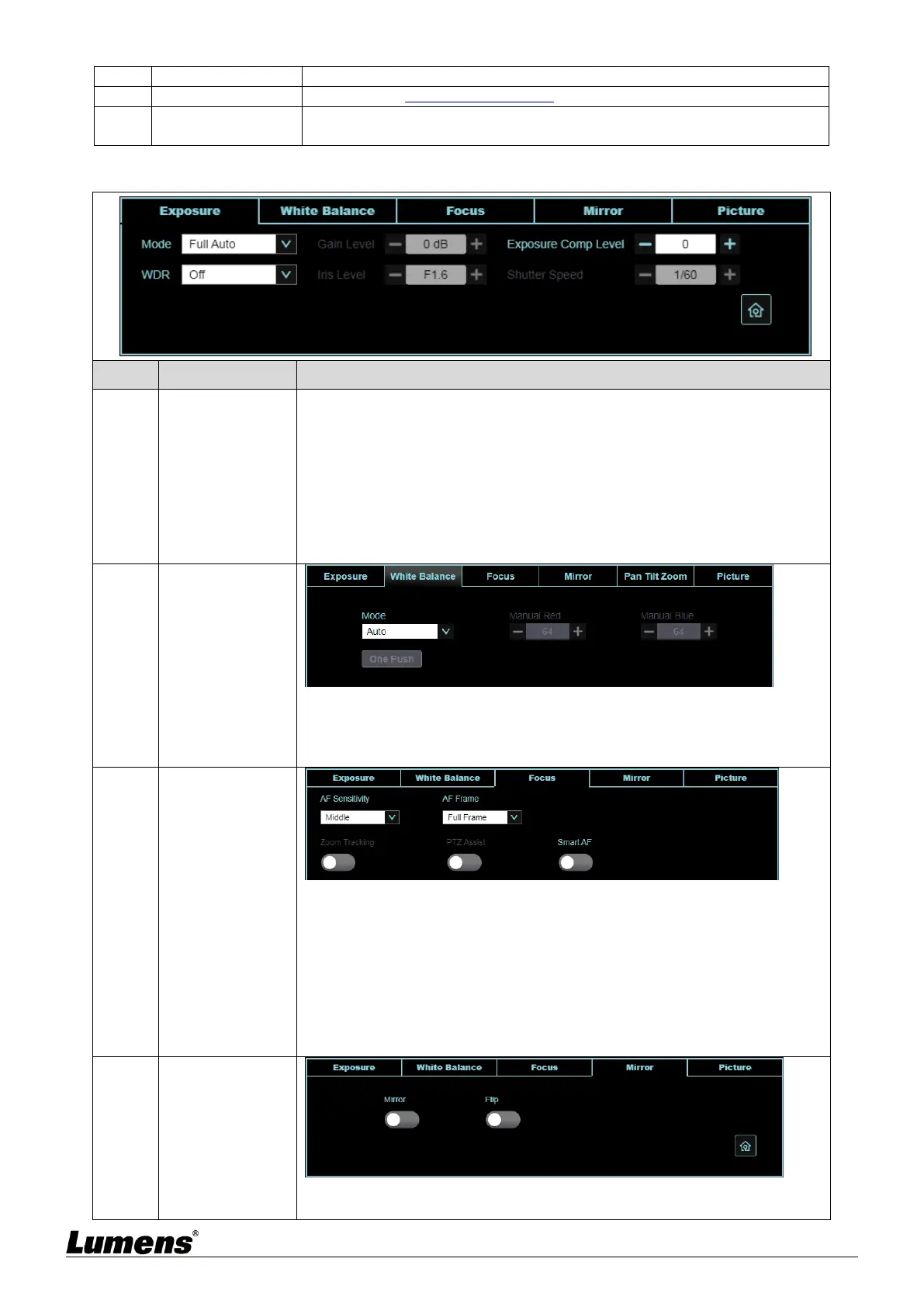

5.2.2.1 Camera Setting
No
Item
Function Descriptions
1
Exposure
 Mode: Select exposure mode (Full Auto / Shutter Pri / Iris Pri / Manual)
 Gain Level: Adjust the gain level (adjustable only under the “Manual”)
 Exposure Comp. Level: Select exposure compensation level
 WDR: Set the level of wide dynamic range (WDR) in order to obtain better
images
 Iris Level: Adjust the size of aperture (adjustable only under the “Manual” or
“Aperture Priority”
 Shutter Speed: Adjust the shutter speed (adjustable only under the “Manual” or
“Shutter Priority”
2
White Balance
 Mode: Select the color temperature mode
 One Push WB: Single color temperature execution adjustment (adjustable only
under the “One Push WB”
 Manual Red/Blue: Manually adjust blue/red color temperature
3
Focus
 AF Sensitivity: Set automatic focus sensitivity
 AF Frame: Set automatic focus range
 Zoom Tracking: Check whether focus is enabled during lens zooming (can be
set in Manual)
 PTZ Assist: Check whether auto focus is enabled if there is any changes of PTZ
(can be set in Manual)
<Remark> When PTZ Assist is enabled and PTZ control is in operation, the
focus will be triggered. The focus will not be triggered when the scene changes
 Smart AF: AF will mainly focus on the face
4
Mirror
 Mirror: Set image mirroring
 Flip: Set the mirror/flip mode
○
