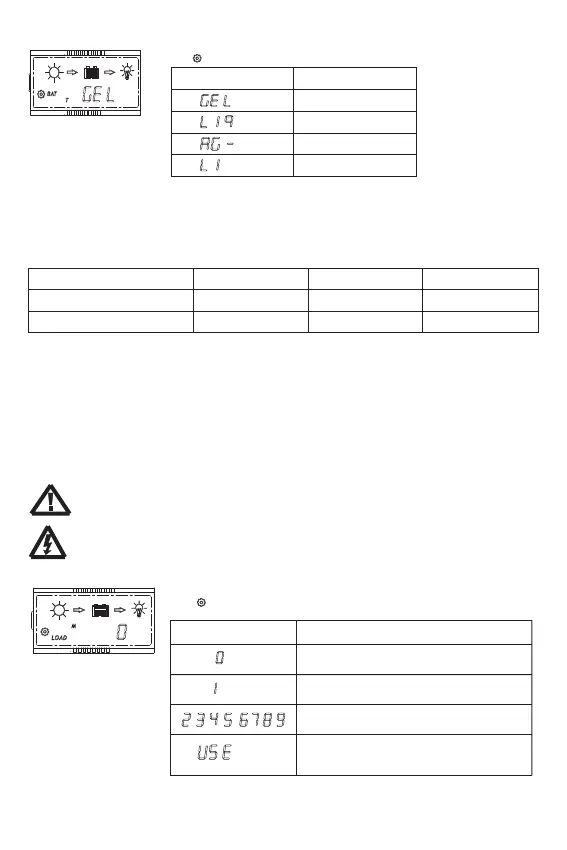

6.4.4 Batter y type
When the LCD shows left, press the MENU key for 1s,the
icon flashes , you can set the battery type.
as displayed at
Battery type
GEL(Default)
Liquid
Lithium
AGM
Display
1.Charging Voltage Parameters(Liquid, GEL, AGM)
When choosing Liquid, GEL or AGM for battery type, the parameters of boost, and float
charge voltage can be set by mobile phone APP, RS485 or Wechat APP. The range of parameters is as
follows.
The following voltage parameters are 25℃/12V system parameters, 24/48V displayed values are multiplied
by a factor of 2/4.
equalization
Boost
Charging Voltage Range
Default charging voltage
Charging stage
14.0~14.8V
14.5V
14.0~15.0V
14.8V
13.0~14.5V
13.7V
Float
Equalization
2. thium
When choosing lithium battery type, the Charging target and recovery voltage of lithium battery can be
set by pressing the key (see 6.3.1 setting selection for details), mobile phone APP, RS485 or Wechat APP.
Charging Voltage Parameters(Li )
Charging target voltage setting range: 12V: 10.0~17.0V (default:14.4V)
12/24V: 10.0~32.0V (default:14.4V)
24/48V: 20.0~64.0V (default:29.4V)
Charging recovery voltage setting range: 12V: 9.2~16.8V (default:14.0V)
12/24V: 9.2~31.8V (default:14.0
24/48V: 18.2~63.8V (default:28.7)
Note:
(Overcharge Recovery Voltage+1.5V)≥Lithium Overcharge Protection Voltage≥
(Overcharge Recovery Voltage+0.2V)
Warning: The required accuracy of BMS shall be at least 0.2V. If tolerance is larger than 0.2V,
manufacturer will not assume any liability for any consequent system malfunction.
6.4.5 Load mode
When the LCD shows left, press the MENU key for 1s, the
icon flashes, you can set the load mode.
as displayed at
Display Load mode
Always on Mode:
The load output is always switched on.
Dusk to Dawn Mode: The load output is
switched on between sunset and sunrise.
Evening Mode: The load output will be
switched on for 2~9hours after sunset.
Manual Mode: The load output can be
switched on and off manually by pressing
MENU shortly.
1.Always on Mode
When the controller is set to always On mode, no matter the charging or discharging state, the
load is always powered on (except in when in protection state).
19
