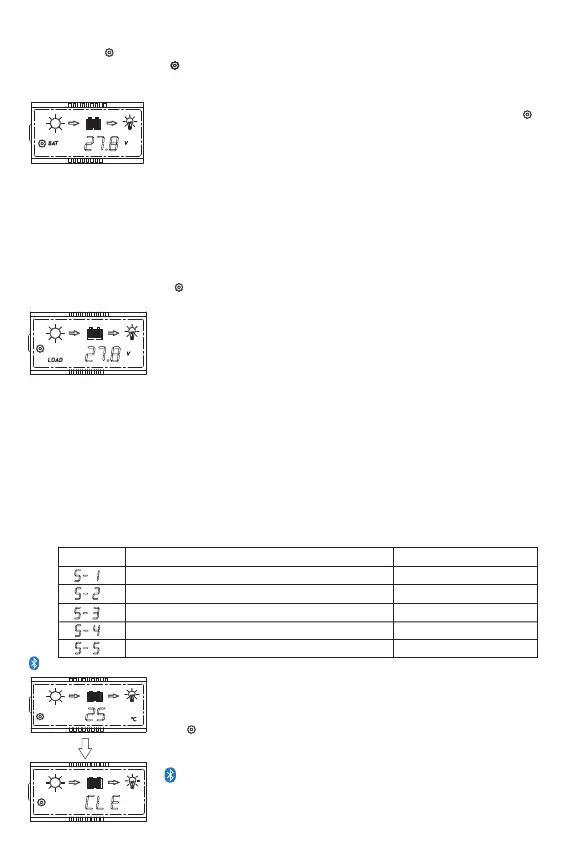

When the icon appears in the display interface, it means that the parameters can be set. Press the
MENU key for 1s, then icon flashes, press OK to change the parameter.
6.4.1 Charging target voltage(Lithium)
6.4.2 Low voltage protection and recovery voltage
When the LCD shows as left, press the MENU key for 1s, the
icon flashes, you can press OK to clear the Bluetooth device
password set by the mobile app.
displayed at
6.4 Parameters setting
6.4.3 Clear Bluetooth Device Password
18
For device passwords, please refer to Bluetooth APP instructions.
If the battery type is set to lithium battery, the LCD display interface is
shown in the left figure. Long press the MENU key for 1 second, the icon
flashes to set the charging target voltage of lithium battery.
Setting range of Charging target voltage:
12V:10.0 ~ 17.0V (default: 14.4V)
12/24V:
12/24/36/48V:10.0 ~ 64.0v (default: 29.4V)
The controller automatically calculates the charging recover y voltage .
according to the charging target voltage . The charging recover y voltage
is approximate 0.97 * Charging target voltage.
If the batter y type is not lithium battery, there is no icon in the
current interface.
10.0 ~ 32.0V (default: 14.4V)
When the LCD shows as displayed at left, press the MENU key for 1s, the
icon flashes, now you can set the controller 's low voltage protection
voltage.
1.If the battery is set to lithium batter y, the low voltage protection voltage
setting range is as follow:
12V:9.0 ~ 16.0V (default: 10.6V)
12/24V:
12/24/36/48V: 9.0 ~ 60.0V (default: 21.0V)
The controller automatically calculates the low voltage recovery voltage
according to the low voltage protection voltage. The low voltage recover y
voltage is approximate 1.11 * low voltage protection voltage.
2. If the battery is not lithium battery, the low voltage protection mode of
the controller is divided into battery voltage control and capacity control.
①Battery voltage control setting range：
10.8~11.8V/21.6~23.6V/32.4~35.4V/43.2~47.2V
(default:11.2V/22.4V/33.6V/44.8V).
The default low voltage recovery voltage of the controller is
0.8/1.6/2.4/3.2V higher than the low voltage protection voltage. If you
want to reduce the low voltage recovery voltage, please reduce the low
voltage protection voltage first.
② Battery capacity control
9.0 ~ 30.0V (default: 10.6V)
11.0~11.6V/22.0~23.2V/33.0~34.8V/44.0~46.4V
11.1~11.7V/22.2~23.4V/33.3~35.1V/44.4~46.8V
11.2~11.8V/22.4~23.6V/33.6~35.4V/44.8~47.2V
11.4~11.9V/22.8~23.8V/34.2~35.7V/45.6~47.6V
11.6~12.0V/23.2~24.0V/34.8~36.0V/46.4~48.0V
Display Low voltage protection range
12.4/24.8/37.2/49.6V
12.5/25.0/37.5/50.0V
12.6/25.2/37.8/50.4V
12.7/25.4/38.1/50.8V
12.8/25.6/38.4/51.2V
Low voltage reconnect
