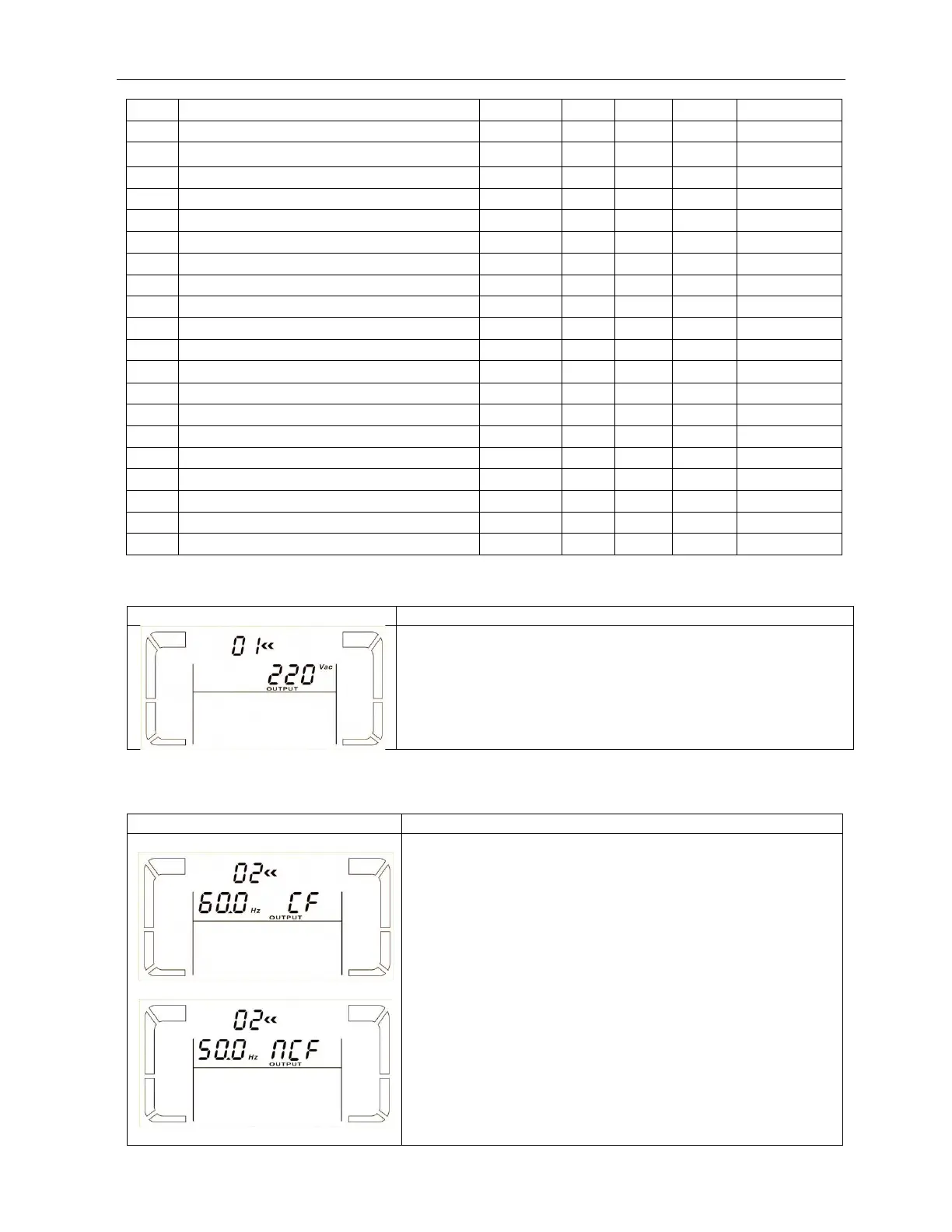

Programs available list for parameter 1:
Code Description Bypass AC CVCF Battery Battery Test
01
Output voltage
Y
02
Output frequenc
y
Y
03
Voltage range for bypass
Y
04
Frequency range for bypass
Y
05
Reserved
06
Reserved
07
Reserved
08
Bypass mode setting
Y Y
09
Battery maximum discharge time setting
Y Y Y Y Y
10
Reserved
11
Reserved
12 Reserved
13 Battery voltage Calibration Y Y Y Y Y
14 Reserved
15 Inverter voltage Calibration Y Y Y
16 Floating charger voltage adjustment Y Y Y Y Y
17 Constant charger voltage adjustment Y Y Y Y Y
18 Charger maximum current setting Y Y Y Y Y
19 Battery capacity and groups setting Y Y Y Y Y
20 Backup time calibration Y Y Y Y Y
*Y means that this program can be set in this mode.
 01: Output voltage
Interface Settin
g
Parameter 3: Output voltage
You may choose the following output voltage in parameter 3:
208: Output voltage is 208Vac
220: Output voltage is 220Vac
230: Output voltage is 230Vac. 230 is the default setting.
240: Output voltage is 240Vac
 02: Output frequency
Interface Setting
60 Hz, CVCF mode
50 Hz, Normal mode
A
TO
Parameter 2: Output Frequency
For setting the output frequency you may choose following
three options in parameter 2:
50.0Hz: The output frequency is setting for 50.0Hz. This is
default setting.
60.0Hz: The output frequency is setting for 60.0Hz.
ATO: If selected, output frequency will be decided according
to the latest normal utility frequency. If it is from 46Hz to
54Hz, the output frequency will be 50.0Hz. If it is from 56Hz
to 64Hz, the output frequency will be 60.0Hz.
ATO is the default setting.
Parameter 3: Frequency mode
For setting the output frequency in CVCF mode or non-CVCF
mode you may choose from following two options in
parameter 3:
