CF: Setting UPS to CVCF mode. If selected, the output
frequency will be fixed at 50Hz or 60Hz according to setting in
parameter 2. The input frequency could be from 46Hz to
64Hz.
NCF: Setting UPS to normal mode (non-CVCF mode). If
selected, the output frequency will synchronize with the input
frequency within 46~54 Hz at 50Hz or within 56~64 Hz at
60Hz according to setting in parameter 2. If 50 Hz selected in
parameter 2, UPS will transfer to battery mode when input
frequency is not within 46~54 Hz. If 60Hz selected in
parameter 2, UPS will transfer to battery mode when input
frequency is not within 56~64 Hz.
*If Parameter 2 is ATO, the Parameter 3 will show the current
frequency.
NCF is the default setting.

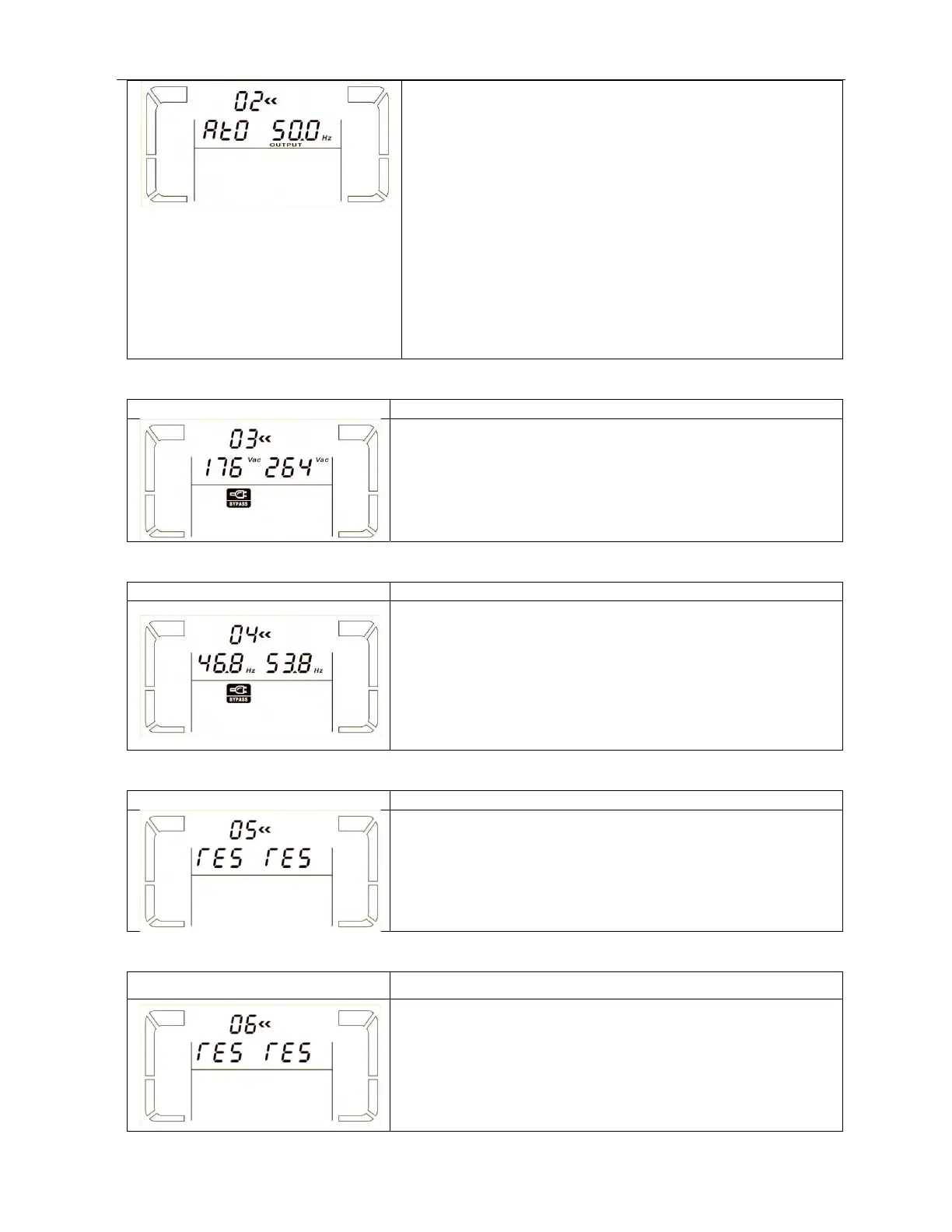

03: Voltage range for bypass
Interface Setting
Parameter 2: Set the acceptable low voltage for bypass.
Setting range is from 110V to 209V. 170V is the default setting.
Parameter 3: Set the acceptable high voltage for bypass.
Setting range is from 231V to 276V. 264V is the default
setting.
04: Frequency range for bypass
Interface Settin
Parameter 2: Set the acceptable low frequency for bypass.
50 Hz system: Setting range is from 46.0Hz to 49.0Hz.
60 Hz system: Setting range is from 56.0Hz to 59.0Hz.
The default value is 46.0Hz. This is the default setting.
Parameter 3: Set the acceptable high frequency for bypass.
50 Hz: Setting range is from 51.0Hz to 54.0 Hz.
60 Hz: Setting range is from 61.0Hz to 64.0Hz.
The default value is 54.0Hz
05: reserved
Interface Setting
reserved
06: reserved
Interface Setting
reserved
