Lust CDA34.006 - Grounding Lead Connection

CDA3000 Operation Manual
3-3
3 Installation
DE
EN
FR
IT
ES
FR
1
2
3
4
5
A
3.2 Grounding lead
connection

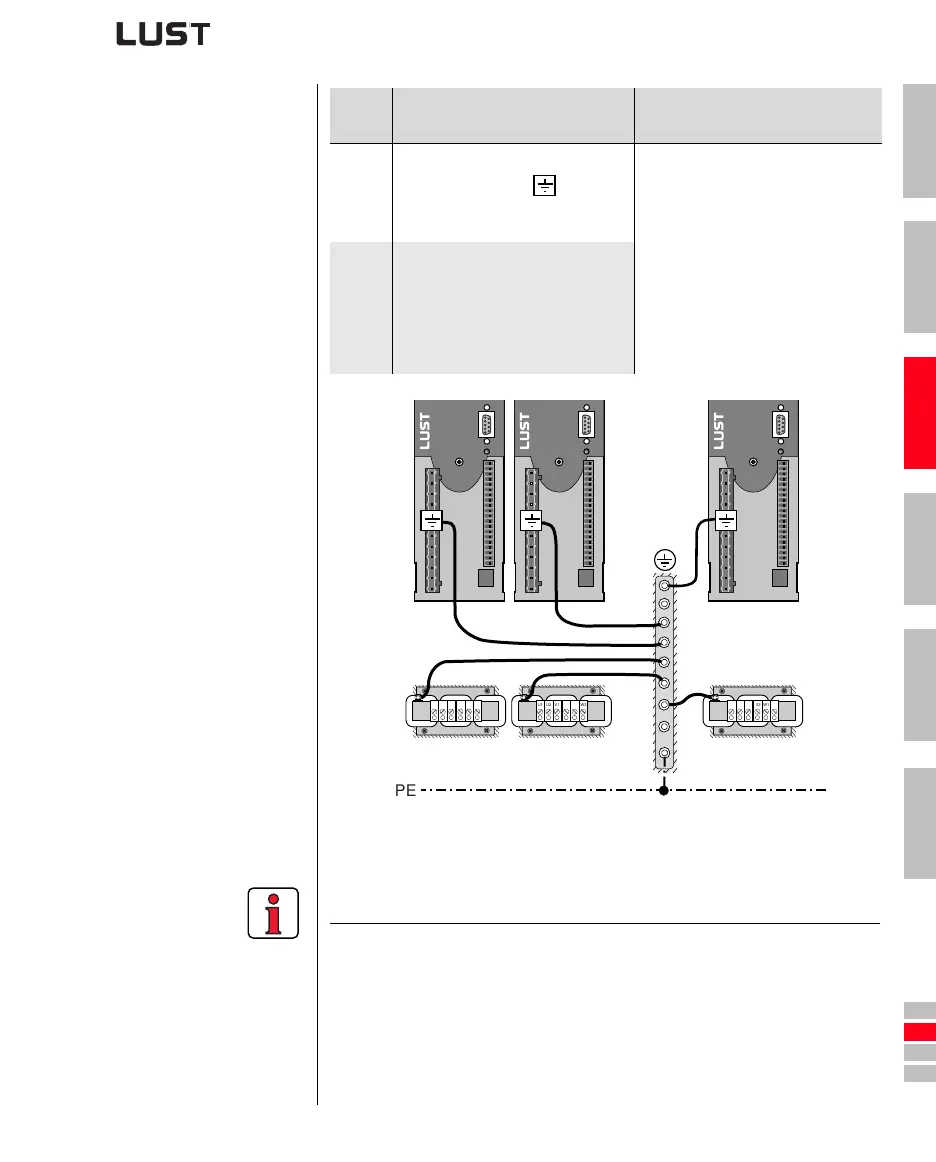

Figure 3.2 Star configuration layout of the grounding lead
Step Action
Note: PE mains connection to
DIN VDE 0100 part 540
1
Ground every inverter module!
Connect terminal X1/ in star
configuration to the PE rail (main
ground) in the switch cabinet.
Mains connection < 10 mm²:
Grounding lead cross-section min.
10 mm²
or use 2 wires with cross-
section of mains leads.
Mains connection > 10 mm²:
Use grounding lead (PE) cross section
according to cross-section of mains
leads.
2
Also connect the grounding lead
connections of all other
components, such as the line choke,
filter, etc., in star configuration, to
the PE rail (main ground) in the
switch cabinet.
Note the following points:
• The grounding lead must be laid out in star configuration to conform
to the EMC standards.
• The backing plate must be well grounded.
• The motor cable, mains lead and control cable must be laid
separately from each other.
• Avoid loops, and lay cable over short distances.
• The operational leakage current is > 3.5 mA.
;;
;
;
;
;
W1
V2
W2
U2
U1
V1
;;
;
;;
;;
;
W1
V2
W2
U2
U1
V1
;;
;;
W1
V2
W2
U2
U1
V1
PE
