CDA3000 Operation Manual
4 Commissioning
4.8 Operation with
D
RIVEMANAGER
Precondition:
•DRIVEMANAGER user software version V3.0 or higher installed on the
PC.

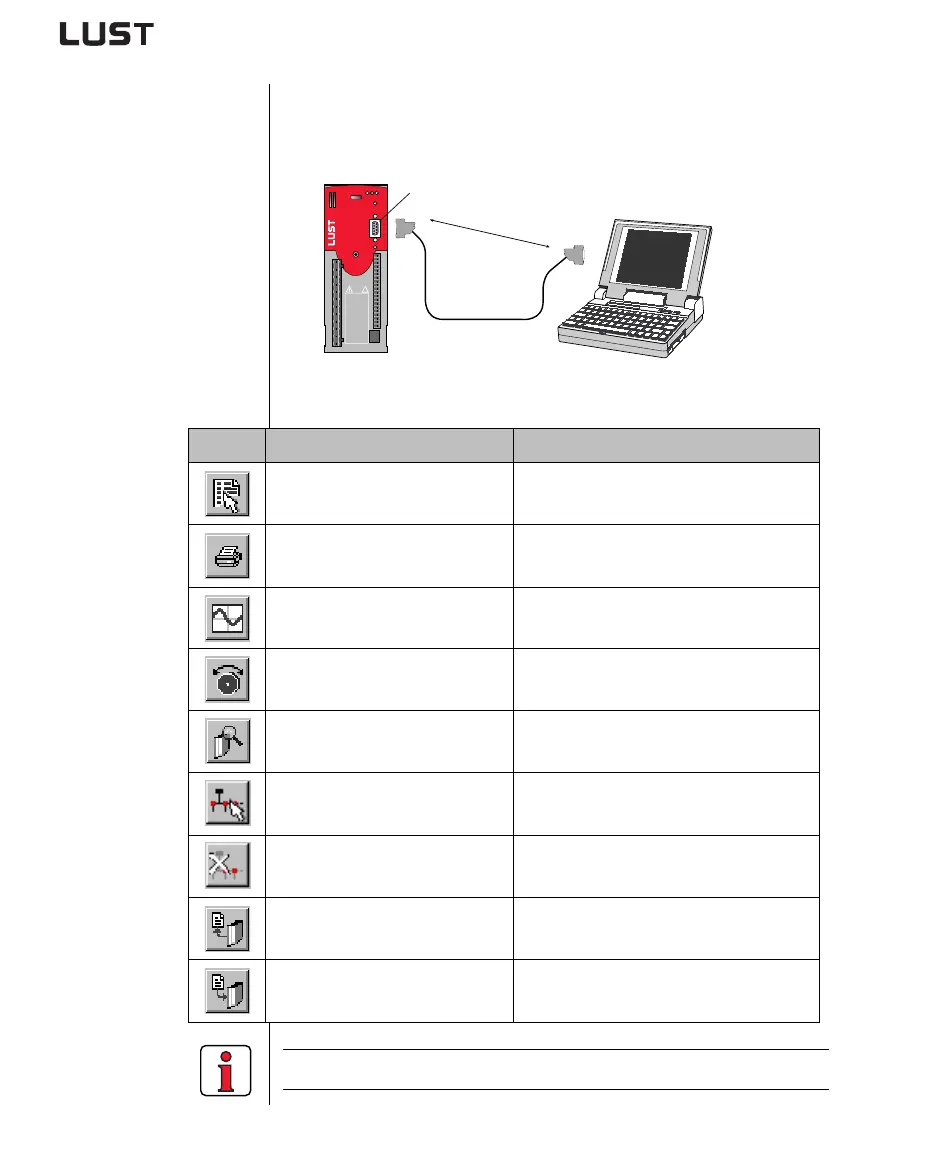

Figure 4.6 Inverter module connection to PC/DRIVEMANAGER
The key functions
For more information refer to the DRIVEMANAGER Manual.
D
RIVE
M
ANAGER
3 m max.
RS232
RS232
H1 H2 H3
X4
X2
X1
X3
ACHTUNG
Kondensatorent-
ladezeit >3 Min.
Betriebsanleitung
beachten!
WARNING
capacitor disscharge
time >3 minutes.
Pay attention to the
operation manual!
ATTENTION
temps de decharge
du condensteur
>3 min. observer le
mode dèmploi!
!
X4
CCD-SUB90X
Icon Function Menu
Change setting of active
device
Active device > Change settings
Print parameter data set Active device > Print settings
Digital scope
Active device > Monitoring > Quickly
changing digital scope values
Control drive
Active device > Open-loop control >
Basic operation modes
Connect to device
Communication > Connect > Single
device
Bus initialization,
change setting
Communication> Bus configuration
Disconnect all devices Communication > Disconnect
Save data set of active device
to file
Active device > Save device settings to
Data set transfer from file to
active device
Active device > Load device settings
from
