Lust CDA34.017 - 4.7 Operation with DRIVEMANAGER

CDA3000 Operation Manual
4-21
4 Commissioning
1
2
3
4
5
A
DE
EN
FR
IT
ES
FR
4.7 Operation with
D
RIVEMANAGER
Prerequisite:
•D
RIVEMANAGER user software (version V2.3 or higher) installed on
the PC.

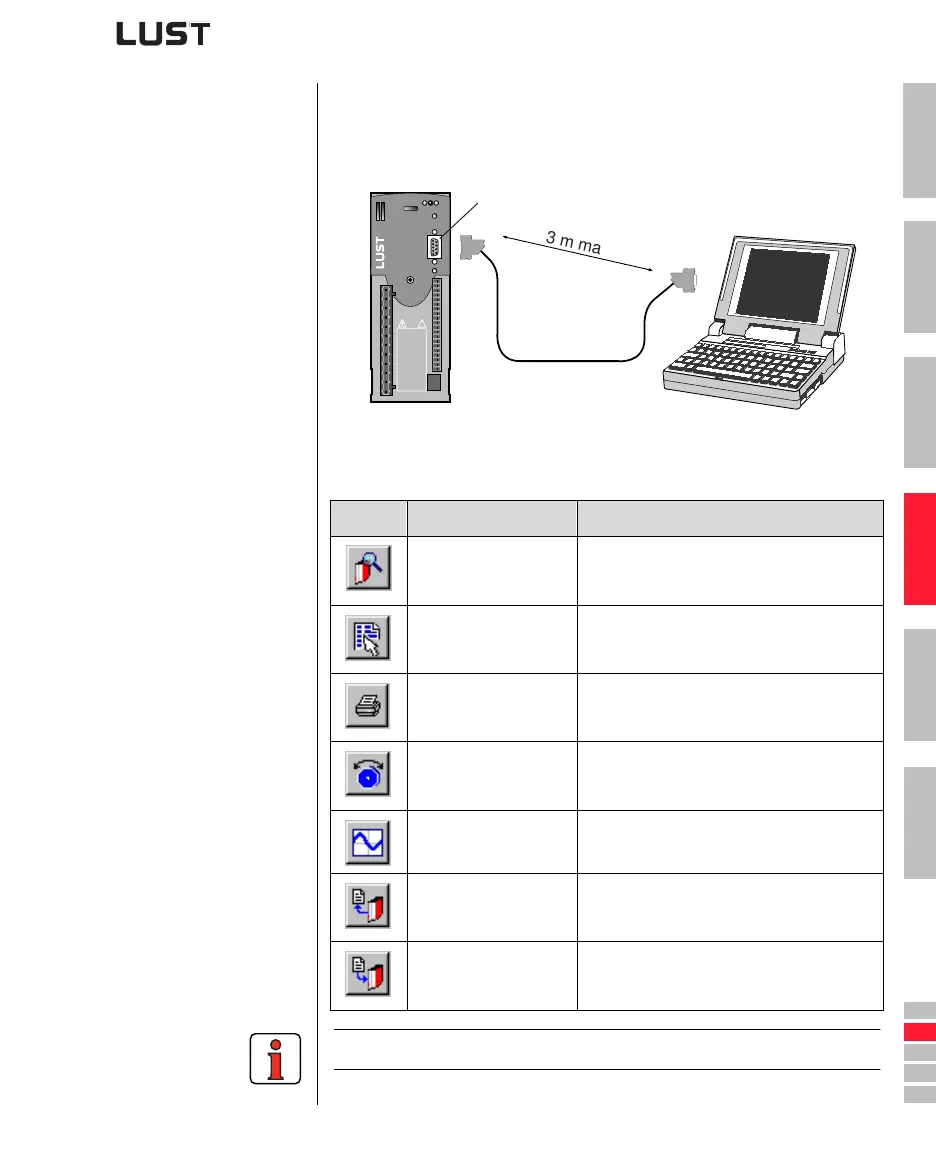

Figure 4.7 Inverter module connection to PC/DRIVEMANAGER
The key functions
For additional information refer to the DRIVEMANAGER HELP.
D
RIVE
M
ANAGER
,,,yyy
3 m max.
RS232
RS232
H1 H2 H3
X4
X2
X1
X3
ACHTUNG
Kondensatorent-
ladezeit >3 Min.
Betriebsanleitung
beachten!
WARNING
capacitor disscharge
time >3 minutes.
Pay attention to the
operation manual!
ATTENTION
temps de decharge
du condensteur
>3 min. observer le
mode dèmploi!
!
X4
CCD-SUB90X
Icon Function Menu
Connect to device
Communication > Connect > Single
device
Edit parameters Active device > Change settings
Print parameter data
set
Active device > Print settings
Control drive
Active device > Control > Basic opera-
tion modes
Digital scope
Active device > Monitor > Quickly
changing digital scope values
Save data set from
device to file
Active device > Save device settings to
Load data set from
file into device
Active device > Load device settings
from
