CDD3000-HF Operation Manual
2 Mechanical installation

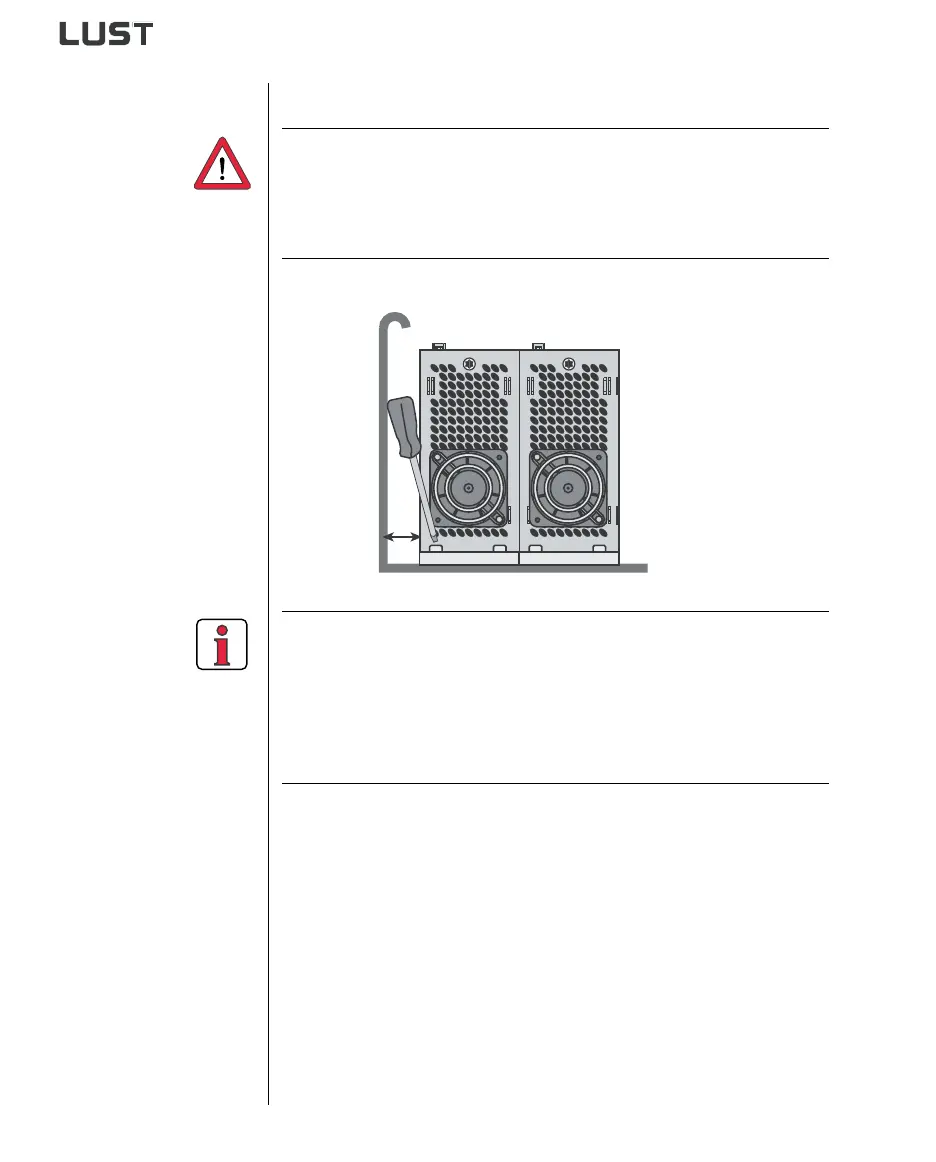

Attention: When mounting drive controller for highspeed drives sizes
BG 1 and BG 2, version C x.x (cold plate) directly on the
switch cabinet wall, a clearance A must be maintained. This
clearance A must be sufficient for the screwdriver to be
inserted.
Note: If the installation prevents the clearance A from being
maintained, the mounting set CDD (order no. 0927.0017) is
available. See Order Catalogue for highspeed drive systems
(order no. 1000.24B.0).
The clearance to devices of different power classes must be
at least 20 mm. The minimum mounting clearance of the
other devices must also be taken into account.
