Installing A Dimmer For Lights Controlled
By Three Switches
Turn power off at circuit breaker or remove fuse
Remove wallplate
Remove existing switch from wall (Do not disconnect
wires yet)
WARNING: Power
must be turned off
for your safety.
Locate a switch with three insulated wires attached to it
1
2
3
4
Helpful Hint:
Save your wallplate
and screws.
Note: If the switch has four wires attached to it, remount it and remove one of the other
two switches. The AuroRa dimmer cannot be used in a switch location that has four wires.
Reminder:
Only replace one of
the three switches
controlling the light
with a dimmer.
1
2
4
3
1
2
3
Need help? Call the Lutron Technical Support Center, 24/7 at 800.523.9466

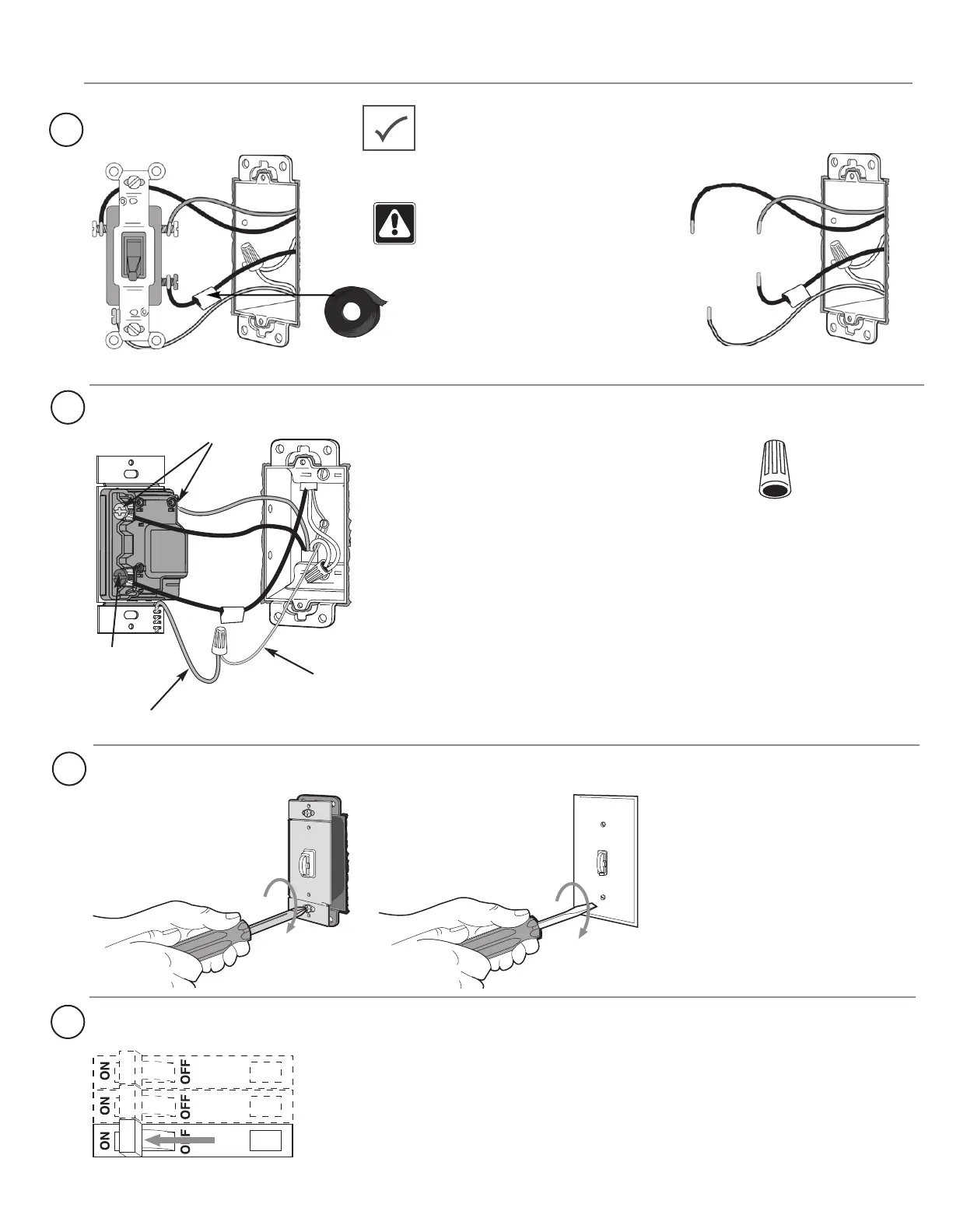

Install dimmer
Turn power on at circuit breaker or replace fuse
A. Connect the green or bare wire
(ground wire) to the green wire on
the dimmer with a wire nut.
B. Connect the tagged wire to the black colored
screw on the dimmer.
C. Connect one of the remaining wires to either of
the gold colored screws (brass) on the dimmer.
D. Connect the remaining wire to the remaining
gold colored screw (brass) on the dimmer.
8
6
brass screws
Uninstall switch
5
7
Mount dimmer and replace wallplate
A. Tag the wire attached to
the different colored screw.
This screw is usually
labeled COMMON.
B. Disconnect the wires from
the switch.
ground wire
green wire
black screw
Helpful Hint:
Use the Lutron screwdriver (supplied) to help
remove “pushed-in” wires on existing switch.
To Next Page
