Need help? Call the Lutron Technical Support Center, 24/7 at 800.523.9466
A. You should see three
insulated wires attached
to the switch. A green or
bare wire is a ground wire.
B. Tag the wire attached to
the different colored
screw. This screw is
usually labeled COMMON.
C. Disconnect the wires from
the switch.
Installing A Dimmer For Lights Controlled
By Two Switches
Turn power off at circuit breaker or remove fuse
Remove wallplate
Remove existing switch from wall (Do not disconnect
wires yet)
WARNING: Power
must be turned off
for your safety.
Uninstall switch
1
2
3
4
Helpful Hint:
Save your wallplate
and screws.
Reminder:
Only replace one of
the two switches
controlling the light
with a dimmer.
1
2
3
Need help? Call the Lutron Technical Support Center, 24/7 at 800.523.9466
Setting Up Your Central Antenna
Plug in your central antenna
The Central Antenna plugs in to a standard wall outlet
and should be placed centrally in the home to ensure
the best Radio Frequency coverage.
Helpful Hint: Don’t place
your central antenna inside
a metal container. The
metal container will block
radio signals and keep the
central antenna from
working properly.
The central antenna does
not need to be placed in
the open. We recommend
placing it in a discrete
location that is out of sight.
Suggested locations:
Under a sofa
Under a table
In a closet
In a cabinet above
microwave
2
•
•
•
•
12345
All
On All Off
Rooms
Fr Entry
Grge Ext
Foy
er
Kitchen
Family

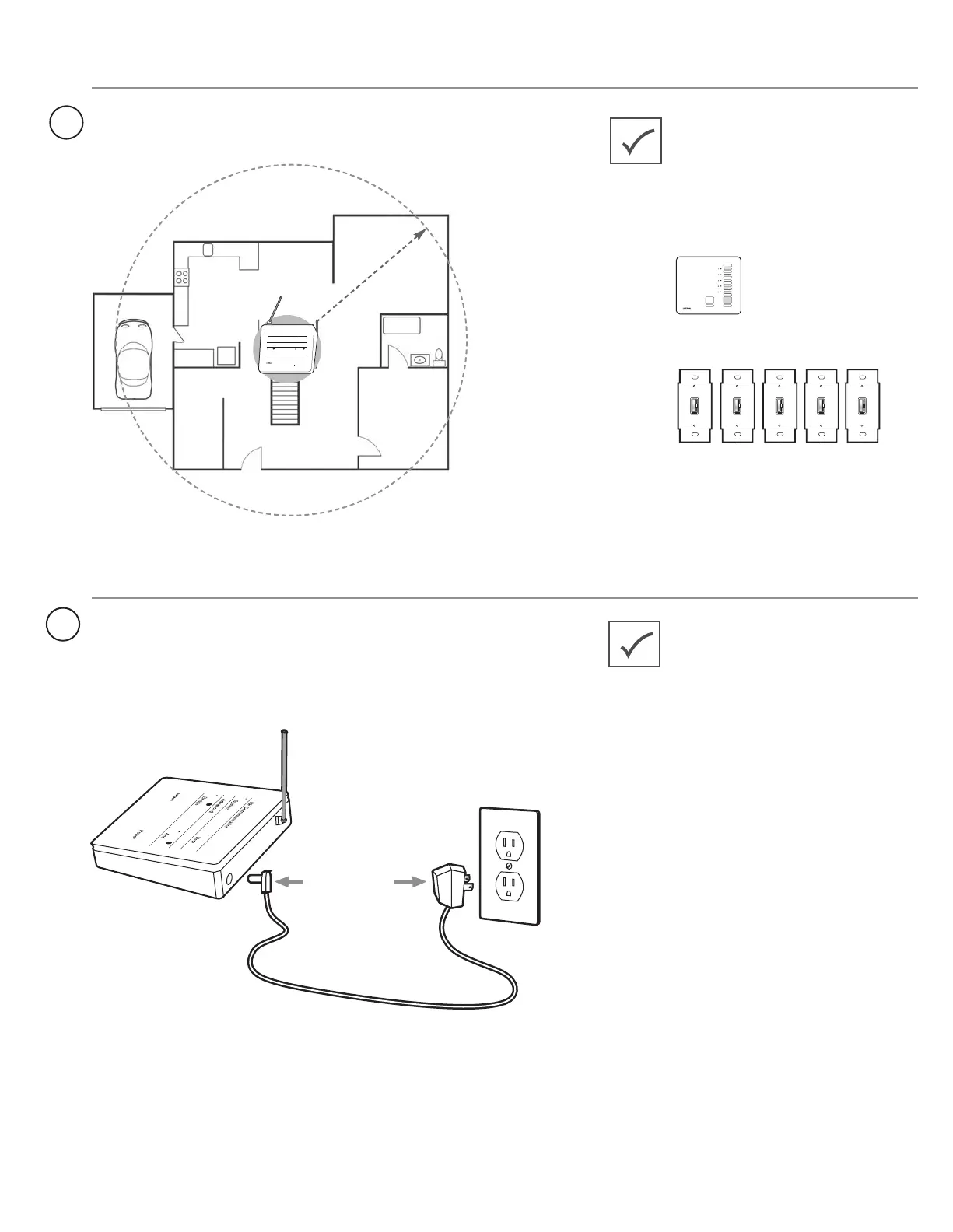

Find the approximate center of your system
1
Helpful Hint: the
central antenna works
best within 30 feet of
your master control
and dimmers.
RF Communication
System Visor
Advanced
Bridge Add
Power
Helpful Hint:
Use the Lutron screwdriver (supplied) to help
remove “pushed-in” wires on existing switch.
master control
dimmers
central antenna
To Next Page
