Need help? Call the Lutron Technical Support Center, 24/7 at 800.523.9466

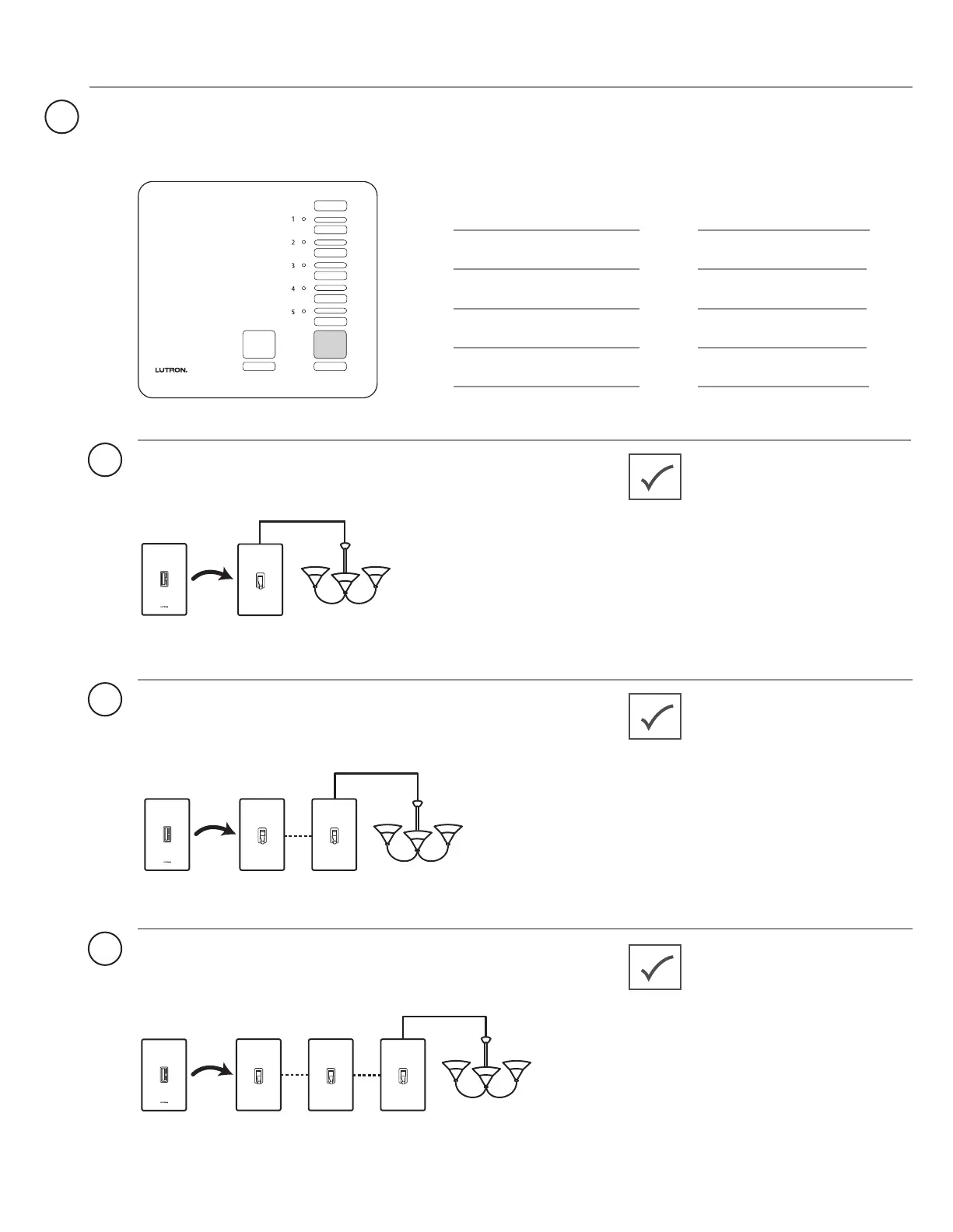

Replacing Switches With Dimmers
For lights controlled by two switches,
use instructions on page 8 and 9
B
Helpful Hint:
This circuit is called
a three-way circuit.
Typical location:
Hallway light
Kitchen light
•
•
For lights controlled by one switch,
use instructions on page 6 and 7
A
Helpful Hint:
This circuit is called
a single-pole circuit.
Typical location:
Porch light
Bedroom light
•
•
For lights controlled by three switches,
use instructions on page 10 and 11
C
Helpful Hint:
This circuit is called
a four-way circuit.
Typical location:
Stairwell light
•
Write down how many switches control the lights you
selected as 1-5 on your Master Control
1
Your Locations:
1:
2:
3:
4:
5:
Number of Switches:
Activate Wireless Controller
Press and hold any button on the wireless
controller until the “Visor” LED light on the
central antenna starts flashing
(approximately three seconds), indicating
the wireless controller has been activated
in the system. The “Add” LED and the
“Visor” LED will remain flashing until the
wireless controller button is released.
2
Before additional wireless controllers can be used to control
lights in the AuroRa® system, they must be activated.
Follow the steps below to activate a wireless controller.
1
Enter Advanced “Add” Mode
Press and hold the “Add” button on the
central antenna until the LED light begins to
flash (approximately 3 seconds).
Dimmers that are in the system will flash
the lights connected to each. The master
control will flash the LEDs corresponding to
dimmers present in the system.
3
Exit Advanced “Add” Mode
Press and hold the “Add” button until the
“Add” LED light stops flashing and remains
off (approximately 3 seconds).
The dimmers will stop flashing their lights.
4
The wireless controller has now
been activated.
RF Communication
System Visor
Advanced
Bridge Add
Power
RF Communication
System Visor
Advanced
Bridge Add
Power
Need help? Call the Lutron Technical Support Center, 24/7 at 800.523.9466
Adding to Your System
Activating Additional Wireless Controllers
All On All Off
Rooms
Fr Entry
Grge Ext
Foyer
Kitchen
Family
RF Communication
System Visor
Advanced
Bridge Add
Power
To Next Page
